30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 008000001 - 008999999) (1988) BRIGGS & STRATTON ENGINE MODEL NO. 402707-0158-01 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

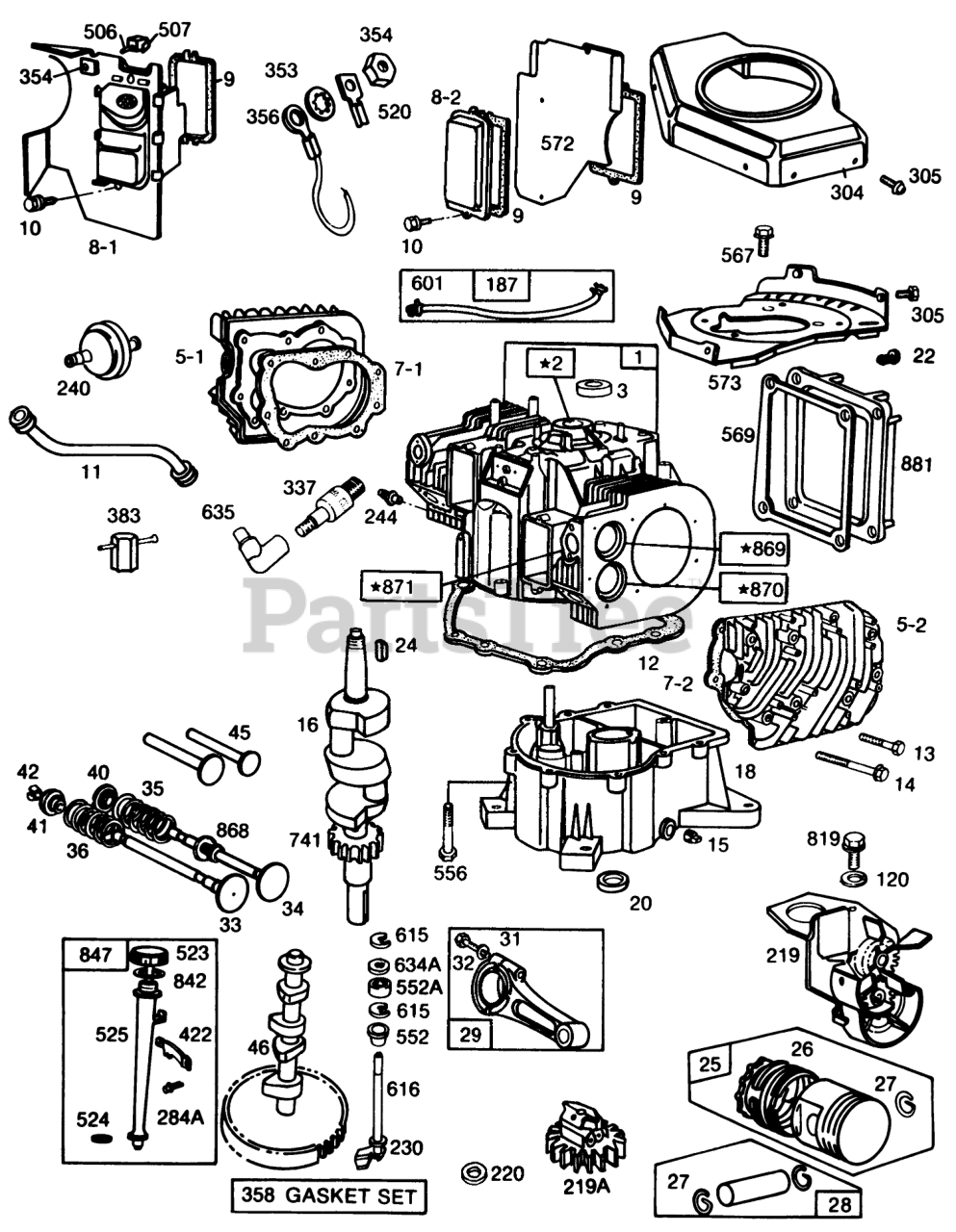

BRIGGS & STRATTON ENGINE MODEL NO. 402707-0158-01 Parts Diagram

  • Title

1

Briggs & Stratton 394941

Cylinder Assembly
(Superseded to 498583)

$371.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 261623

Bearing
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5-1

Briggs & Stratton 212461

Head-Cylinder #1
(Superseded to 493457)

$

$

Not available

5-2

Briggs & Stratton 212462

Head-Cylinder #2
(Superseded to 493458)

$

$

Not available

7-1

Briggs & Stratton 271867

Gasket-Cylinder Head #1
(Superseded to 271867S)

$10.99

$

In Stock, Qty 12

0

7-2

Briggs & Stratton 271868

Gasket-Cylinder Head #2
(Superseded to 271868S)

$10.99

$

In Stock, Qty 10

0

8-1

Briggs & Stratton 393370

Breather Assembly #1
(Superseded to 495754)

$

$

Not available

8-2

Briggs & Stratton 222892

Cover-Breather Cylinder #2
(Superseded to 690415)

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280225

Tube-Breather
(Superseded to 691899)

$13.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 271142

Gasket-Crankcase Cover-1/64" thick
(Superseded to 692292)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271188

Gasket-Crankcase Cover-.005" thick

$11.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 271189

Gasket-Crankcase Cover-.009" thick

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93111

Screw-Cylinder Hd.
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 93113

Screw-Cylinder Head
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 393382

Crankshaft

$

$

Not available

18

Briggs & Stratton 393552

Base Assembly-Crankcase

$

$

Not available

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93882

Screw-Crankcase Cover Mtg.
(Superseded to 94833)

$5.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 394955

Piston Assembly-Std.
(Superseded to 498584)

$102.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 394956

Piston Assembly-.010" O.S.

$

$

Not available

25

Briggs & Stratton 394957

Piston Assembly-.020" O.S.
(Superseded to 498586)

$113.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 394958

Piston Assembly-.030" O.S.

$

$

Not available

26

Briggs & Stratton 394959

Ring Set-Piston-Std

$59.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 394960

Ring Set-Piston-.010" O.S.

$

$

Not available

26

Briggs & Stratton 394961

Ring Set-Piston-.020" O.S.

$83.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 394962

Ring Set-Piston-.030" O.S.

$34.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston (Std.)

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston (.005" OS.)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 393270

Rod Assembly-Connecting Note: For Connecting Rod with .020" undersize Crankpin Bore-Order No.393714.

$95.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 220863

Washer

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92909

Screw-Conn. Rod
(Superseded to 691133)

$5.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 390420

Valve-Exhaust
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261528

Valve-Intake Uses: Seal Assembly and Retainer (Ref. No.868)
(Superseded to 691804)

$

$

Not available

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 261368

Tappet-Valve
(Superseded to 691800)

$13.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 212337

Gear-Cam (Used with Electronic Ignition)
(Superseded to 691156)

$125.99

$

Usually ships in 2-12 days

0

120

Briggs & Stratton 92290

Washer-Lock
(Superseded to 690286)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 299146

Line-Fuel (28" long) (Cut to Suit)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 393415

Oil Slinger Assembly
(Superseded to 691964)

$

$

Not available

219A

Briggs & Stratton 394348

Gear-Governor
(Superseded to 793338)

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 222773

Washer-Thrust
(Superseded to 690412)

$

$

Not available

230

Briggs & Stratton 220863

Washer

$3.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 394358

Filter-Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

244

Briggs & Stratton 230318

Connector-Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

284A

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

304

Briggs & Stratton 393287

Housing-Blower

$74.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

337

Briggs & Stratton 394539

Plug-Spark (Resistor)
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 298693

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 394501

Gasket Set
(Superseded to 495868)

$75.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

422

Briggs & Stratton 222875

Clamp-Oil Filter
(Superseded to 691176)

$

$

Not available

506

Briggs & Stratton 231174

Terminal

$5.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 280180

Grommet-Insulator

$4.49

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 93722

Terminal
(Superseded to 691084)

$6.49

$

In Stock, only 1 left!

0

523

Briggs & Stratton 394020

Cap and Dipstick-Oil Filler
(Superseded to 495715)

$

$

Not available

524

Briggs & Stratton 271157

Seal-FillerTube
(Superseded to 692532)

$5.99

$

In Stock, only 2 left!

0

525

Briggs & Stratton 280224

Tube-Oil Filler
(Superseded to 495715)

$

$

Not available

552

Briggs & Stratton 261559

Lower Bushing-Governor

$8.49

$

Usually ships in 2-12 days

0

552A

Briggs & Stratton 261560

Upper Bushing-Governor

$8.49

$

Usually ships in 2-12 days

0

556

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

567

Briggs & Stratton 93777

Screw
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

569

Briggs & Stratton 270981

Gasket-Crankcase
(Superseded to 692287)

$10.99

$

In Stock, Qty 5

0

572

Briggs & Stratton 222912

Baffle-Air(Cyl. #2)
(Superseded to 690481)

$9.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 392934

Back Plate Assembly
(Superseded to 696041)

$45.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

615

Briggs & Stratton 93851

Retainer-E-Ring

$4.49

$

In Stock, only 1 left!

0

616

Briggs & Stratton 394349

Crank-Governor

$10.99

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 271316

Foam Seal-Governor Shaft

$16.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

741

Briggs & Stratton 231445

Gear-Timing
(Superseded to 691277)

$9.49

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 93686

Screw-Hex Head
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

842

Briggs & Stratton 271170

Seal-Oil FillerCap
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 394394

Dipstick & Tube Assembly
(Superseded to 495715)

$

$

Not available

868

Briggs & Stratton 393606

Seal Assembly & Retainer
(Superseded to 692324)

$

$

Not available

869

Briggs & Stratton 261463

Seat-Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 210940

Seat-Exhaust Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Guide-Valve

$14.99

$

In Stock, Qty 7

0

881

Briggs & Stratton 222860

Cover Plate-Crankcase

$20.99

$

Usually ships in 2-12 days

0
