30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 008000001 - 008999999) (1988) BATTERY ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

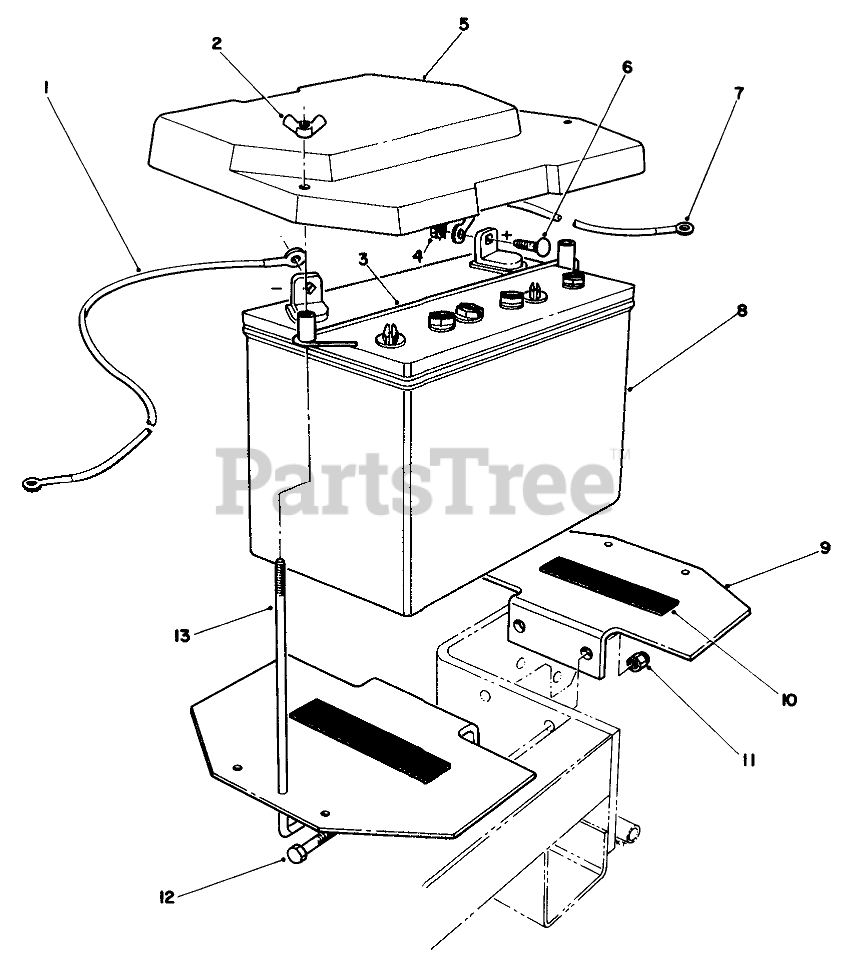

BATTERY ASSEMBLY Parts Diagram

  • Title
1

Toro 54-3090

WIRE ASM

$

$

Not available

2

Toro 32103-19

WING NUT

$1.99

$

In Stock, only 2 left!

0

3

Toro 62-5720

BATTERY HOLD DOWN

$

$

Not available

4

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

5

Toro 51-0140

BATTERY COVER

$205.99

$

Usually ships in 3-6 days

0

6

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 28-3893

WIRE ASM

$

$

Not available

8

Toro 49-7030

Battery

$

$

Not available

9

Toro 55-8350

Holder-Battery
(Superseded to 92-2350-01)

$

$

Not available

10

Toro 51-4210

PAD-TANK, FUEL

$

$

Not available

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 12-5951

BATTERY SUPPORT ROD

$

$

Not available
