30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 007000001 - 007999999) (1987) ENGINE BRIGGS AND STRATTON MODEL NO. 402707-0158-01 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

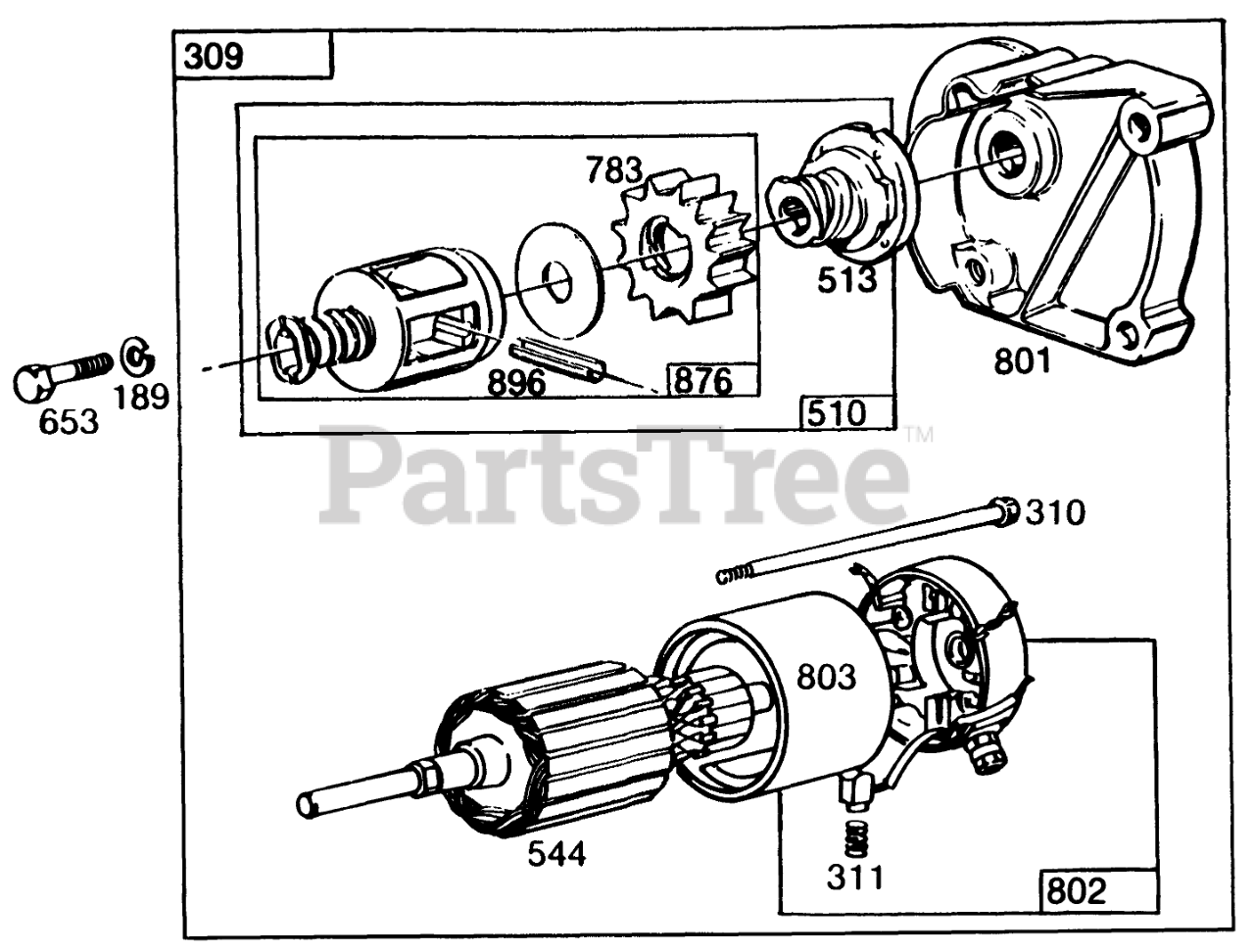

ENGINE BRIGGS AND STRATTON MODEL NO. 402707-0158-01 Parts Diagram

  • Title

189

Briggs & Stratton 90366

Lockwasher
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 394808

Motor and Drive Assembly
(Superseded to 497596)

$122.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 94003

Bolt
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 395538

Brush Set

$24.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 396865

Drive Assembly
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

513

Briggs & Stratton 391135

Clutch Assembly
(Superseded to 692024)

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 392747

Armature Assembly
(Superseded to 390837)

$159.99

$

In Stock, only 1 left!

0

653

Briggs & Stratton 91162

Screw-Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

$6.99

$

In Stock, only 3 left!

0

801

Briggs & Stratton 394860

End Cap Assembly Drive
(Superseded to 691967)

$74.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 395537

Cap-End

$54.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 393825

Housing Assembly
(Superseded to 398159)

$80.99

$

Usually ships in 2-12 days

0

876

Briggs & Stratton 393254

Retainer Kit
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

896

Briggs & Stratton 93754

Pin
(Superseded to 94192)

$4.99

$

Usually ships in 2-12 days

0
