30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

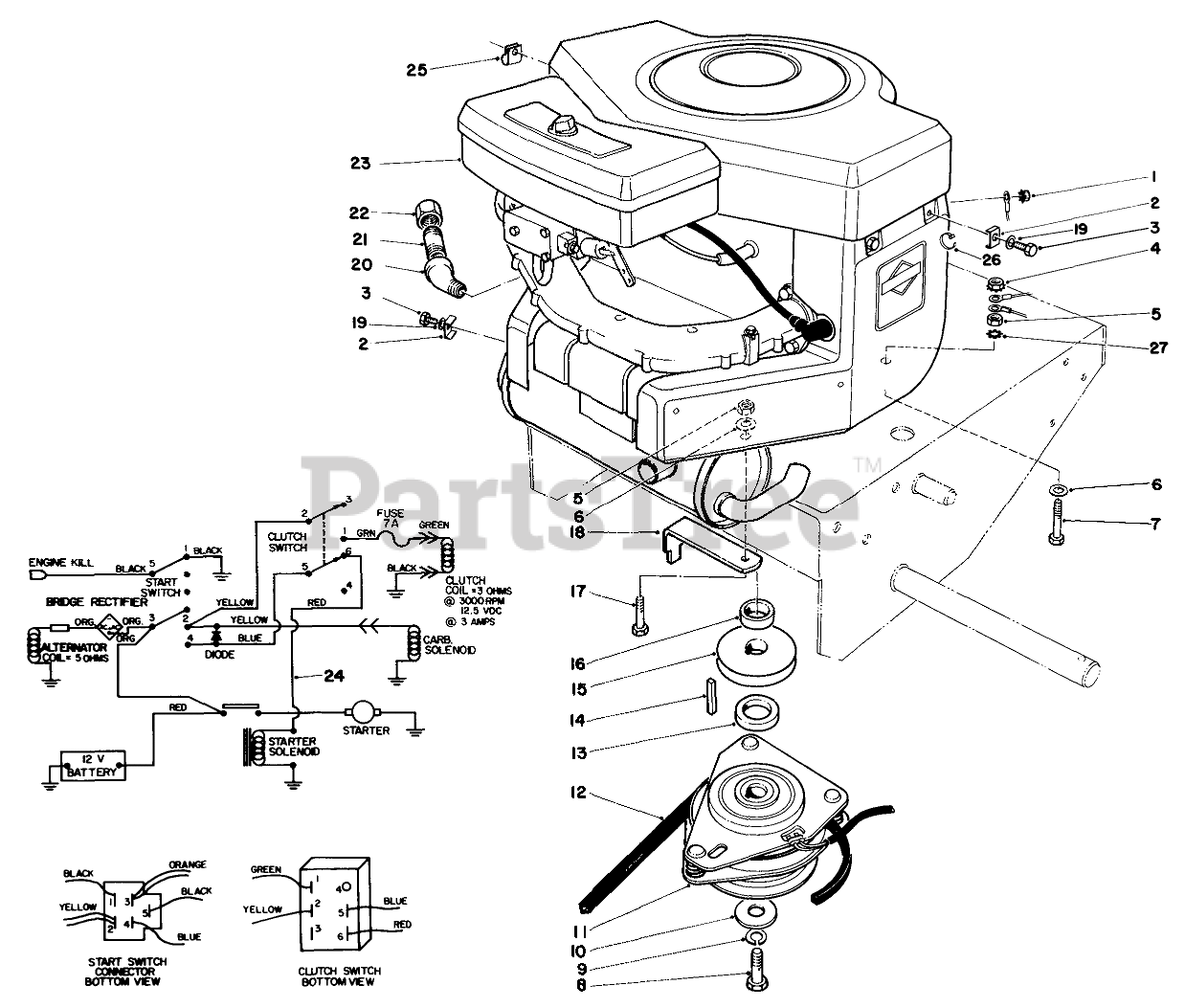

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

2

Toro 29-9550

CLAMP-CABLE

$

$

Not available

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

8

Toro 3212-24

SCREW-HH

$24.99

$

Usually ships in 3-6 days

0

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

10

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

11

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

12

Toro 54-2750

V-BELT, DRIVE

$59.99

$

In Stock, only 2 left!

0

13

Toro 51-3280

SPACER-LOWER

$

$

Not available

14

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

15

Toro 51-4460

Pulley-Drive
(Superseded to 100-3251)

$

$

Not available

16

Toro 51-3290

Spacer-Upper

$

$

Not available

17

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 1 left!

0

19

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 2811-3

ELBOW

$

$

Not available

21

Toro 289-42

NIPPLE

$18.99

$

Usually ships in 3-6 days

0

22

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

23

Toro 54-3120

Engine

$

$

Currently unavailable

24

Toro 57-4240

16 HP WIRE HARNESS

$

$

Not available

25

Toro 2412-73

CLAMP-R

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

27

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0
