30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 006000001 - 006999999) (1986) DRIVE SPINDLE NO. 54-7780, 54-7781 MODEL 30136, 30152 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

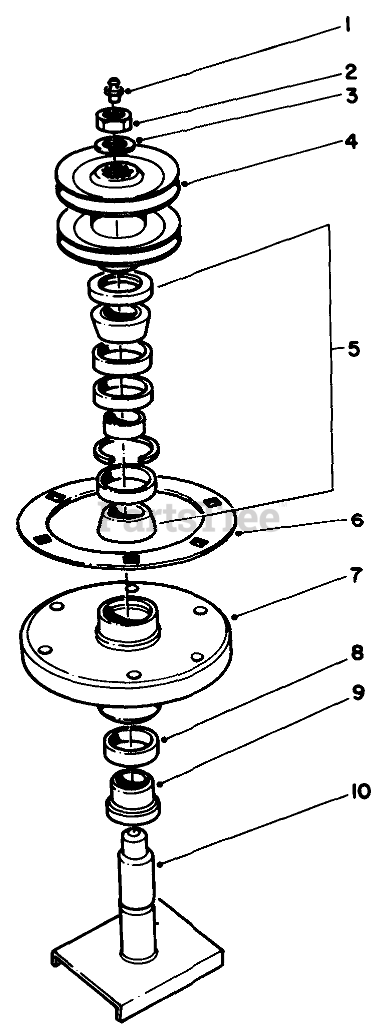

DRIVE SPINDLE NO. 54-7780, 54-7781 MODEL 30136, 30152 Parts Diagram

  • Title
1

Toro 302-2

FITTING-GREASE

$2.49

$

Usually ships in 3-6 days

0

2

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 6

0

3

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

4

Toro 54-2980

PULLEY & HUB WA B

$

$

Not available

5

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

6

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

7

Toro 27-0880

Housing-Spindle
(Superseded to 61-4160)

$138.99

$

In Stock, only 1 left!

0

8

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

9

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

10

Toro 51-3550

SPDLE SHAFT WA B

$

$

Not available

Toro 51-3551

Shaft-Spindle
(Superseded to 105-1686)

Note: Not Illustrated.

$206.99

$

In Stock, only 1 left!

0
