30115 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 009000001 - 009999999) (1989) FRAME ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

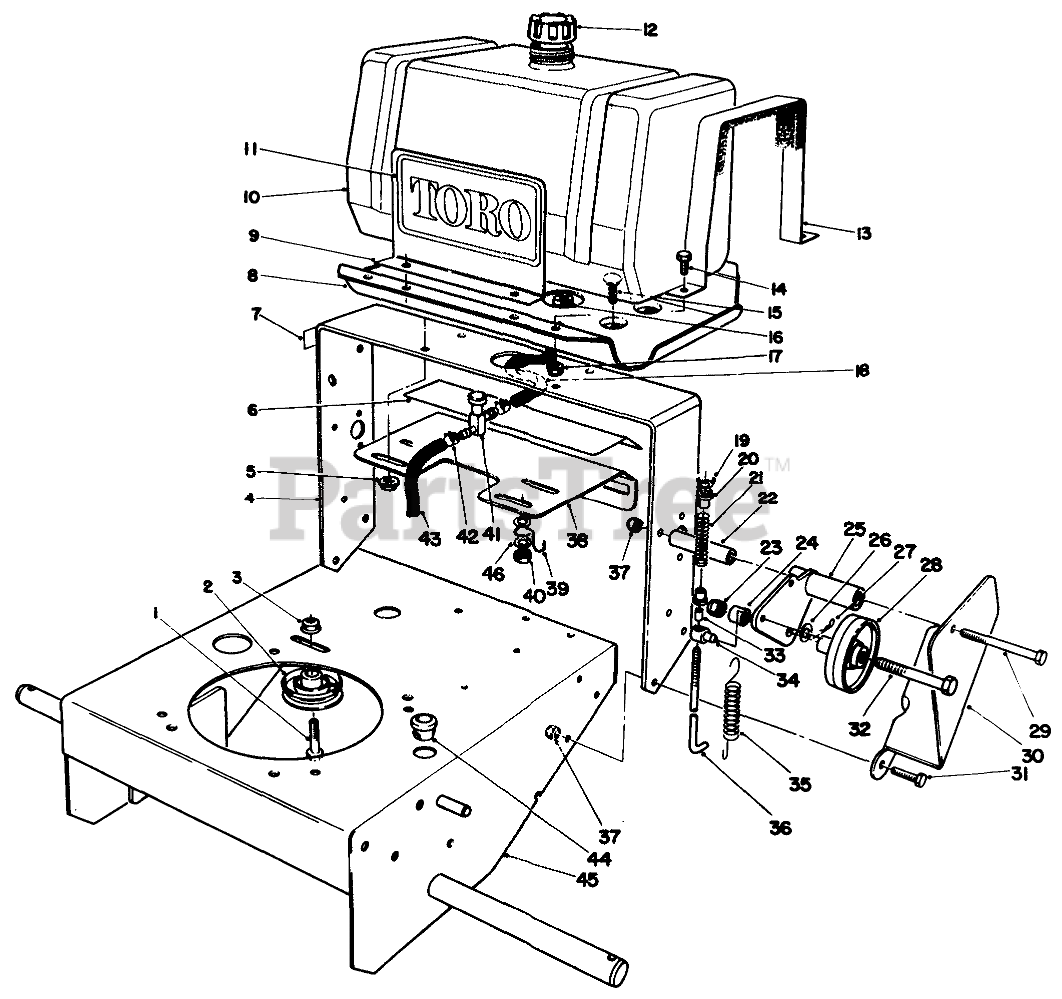

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 51-4810

PULLEY-IDLER

$46.99

$

Usually ships in 3-6 days

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 54-3170

Frame-Rear
(Superseded to 74-0360-01)

$

$

Not available

5

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 72-2480

DECAL - GROUND SPEED

$

$

Not available

7

Toro 55-4230

Decal-Fuel Shut Off
(Superseded to 74-0490)

$

$

Not available

8

Toro 62-4030

PLATE-FUEL TANK

$

$

Not available

9

Toro 62-4120

DECAL-PLATE

$

$

Not available

10

Toro 62-4040

TANK-FUEL

$

$

Not available

11

Toro 62-5550

DECAL

$10.99

$

In Stock, only 4 left!

0

12

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

13

Toro 62-5500

STRAP ASM

$

$

Not available

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 66-7130

GAS HOSE

$

$

Not available

19

Toro 32103-23

NUT-WING, LOCK

$

$

Not available

20

Toro 65-5080

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

21

Toro 72-9820

SPRING - COMPRESSION

$

$

Not available

22

Toro 51-4340

PIVOT-IDLER SPACER

$22.99

$

In Stock, only 1 left!

0

23

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 51-4490

WHEEL IDLER SPACER

$

$

Not available

25

Toro 72-2270

LH IDLER BRACKET WA R

$

$

Not available

Toro 72-2260

RH IDLER BRACKET WA R

$

$

Not available

26

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

27

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

28

Toro 51-4480

IdlerWheel
(Superseded to 99-5879)

$67.99

$

Usually ships in 3-6 days

0

29

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

30

Toro 67-6380

Bracket-LH
(Superseded to 67-6380-01)

$126.99

$

Usually ships in 3-6 days

0

Toro 67-6370

Bracket-RH
(Superseded to 67-6370-01)

$126.99

$

Usually ships in 3-6 days

0

31

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Toro 325-12

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

33

Toro 52-2890

BUSHING-NYLON

$3.49

$

Usually ships in 3-6 days

0

34

Toro 68-9690

FITTING-ROD

$56.99

$

Usually ships in 3-6 days

0

35

Toro 72-2680

EXTENSION SPRING

$

$

Not available

36

Toro 72-2380

BRAKE ROD

$

$

Not available

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Toro 66-7400

Plate
(Superseded to 66-7400-01)

$

$

Not available

39

Toro 62-5610

GAS LINE CLIP

$

$

Not available

40

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

41

Toro 54-3150

FUEL VALVE
(Superseded to 1-603770)

$8.49

$

In Stock, Qty 5

0

42

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

43

Toro 47-2985

GAS HOSE
(Superseded to 109-0304)

$2.49

$

In Stock, Qty 11

0

44

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

45

Toro 72-2420

Frame

$

$

Not available

46

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
