30115 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 009000001 - 009999999) (1989) ELECTRICAL SCHEMATIC Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

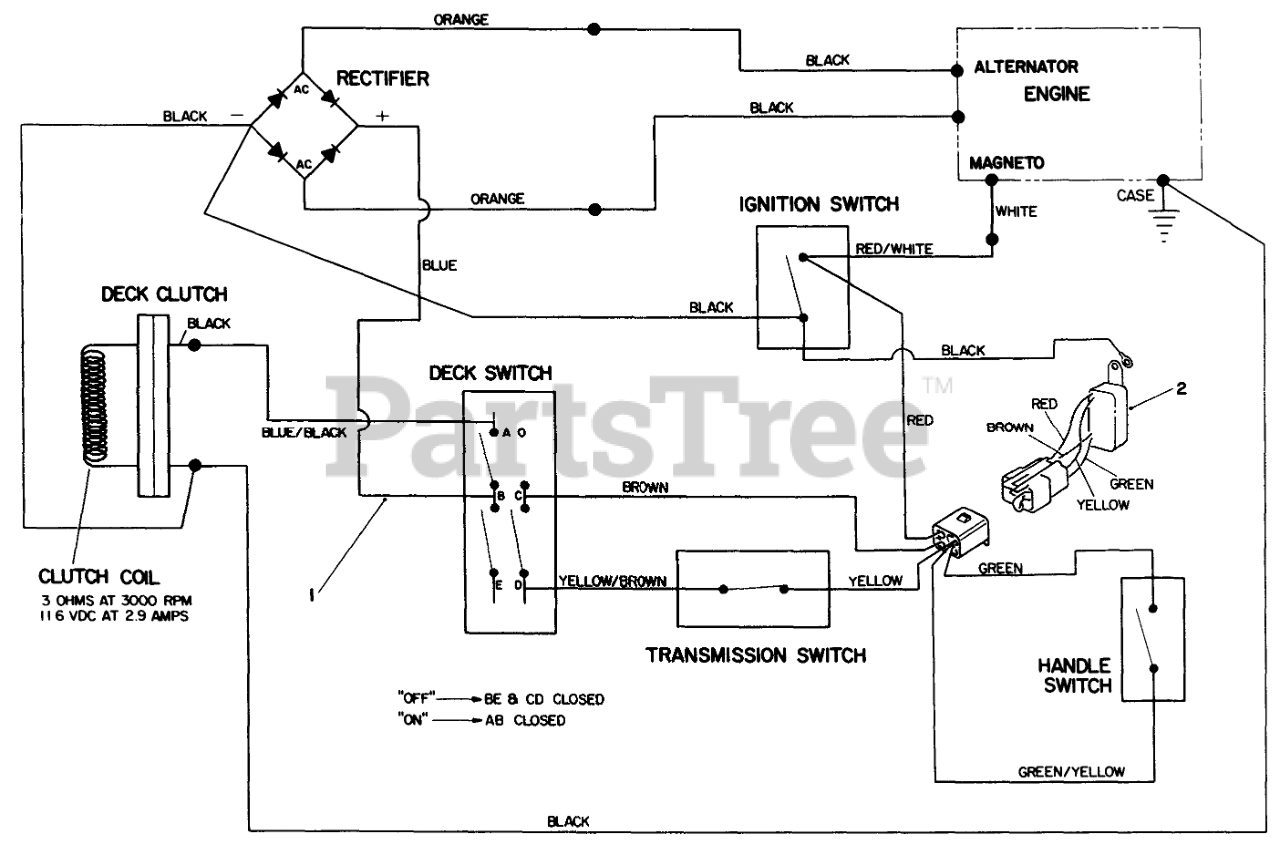

ELECTRICAL SCHEMATIC Parts Diagram

  • Title
1

Toro 72-2320

WIRE HARNESS

$

$

Not available

2

Toro 39-6520

INTERLOCK MODULE

$

$

Not available
