30114 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 010000001 - 019999999) (1991) CRANKCASE-ENGINE KOHLER MODEL NO. CV14T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

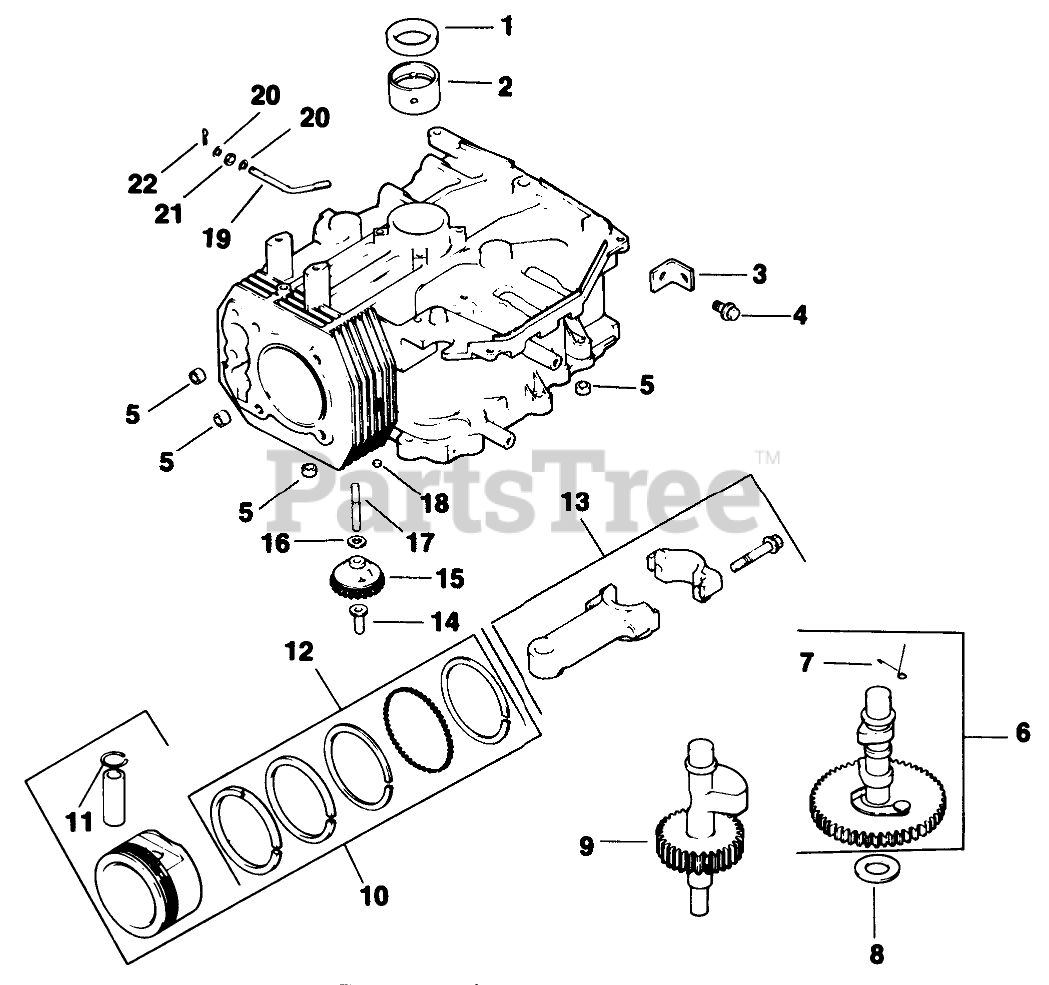

CRANKCASE-ENGINE KOHLER MODEL NO. CV14T-1412 Parts Diagram

  • Title

1

12_032_03

Seal-Oil

$

$

Not available

2

12_030_01

Bearing-Crankshaft

$

$

Not available

12_030_02

Bearing-Crankshaft (.25)

$

$

Not available

12_030_03

Bearing-Crankshaft (.50)

$

$

Not available

3

Toro 12_445_02

Strap-Liting

$

$

Currently unavailable

4

Toro SM-0839025

Screw

$

$

Currently unavailable

5

Toro 12_380_03

Pin-Dowel

$

$

Currently unavailable

6

12_010_01

Camshaft Assembly

$

$

Not available

7

12_089_18

Spring-Actuating

$

$

Not available

8

Toro 12_422_08

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_02

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_10

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_11

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_12

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_06

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_07

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_04

Shaft-Balance

$

$

Currently unavailable

10

Toro 12_847_01

Piston W/Ring Set (Std.)

$

$

Currently unavailable

Toro 12_847_02

Piston W/Ring Set (.25)

$

$

Currently unavailable

Toro 12_847_03

Piston W/Ring Set (.50)

$

$

Currently unavailable

11

12_018_02

Retainer-Piston Pin

$

$

Not available

12

12_108_01

Ring Set (Std.)

$

$

Not available

12_108_02

Ring Set (.25)

$

$

Not available

12_108_03

Ring Set (.50)

$

$

Not available

13

12_067_01

Connecting Rod STD

$

$

Not available

12_067_02

Connecting Rod .25

$

$

Not available

14

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

15

12_043_05

Gear-Governor ASM

$

$

Not available

16

Toro SM-0631005

Washer

$

$

Currently unavailable

17

12_144_02

Shaft-Govenor Gear

$

$

Not available

18

Toro 52_139_09

Cup

$

$

Currently unavailable

19

12_144_01

Rod-Push

$

$

Not available

20

Toro SM-0631015

Washer

$

$

Currently unavailable

Toro X25-102

Washer

$

$

Currently unavailable

21

12_032_01

Seal

$

$

Not available

22

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable
