30114 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 000000001 - 000999999) (1990) STARTING SYSTEM-ENGINE KOHLER MODEL NO. CV1 4T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

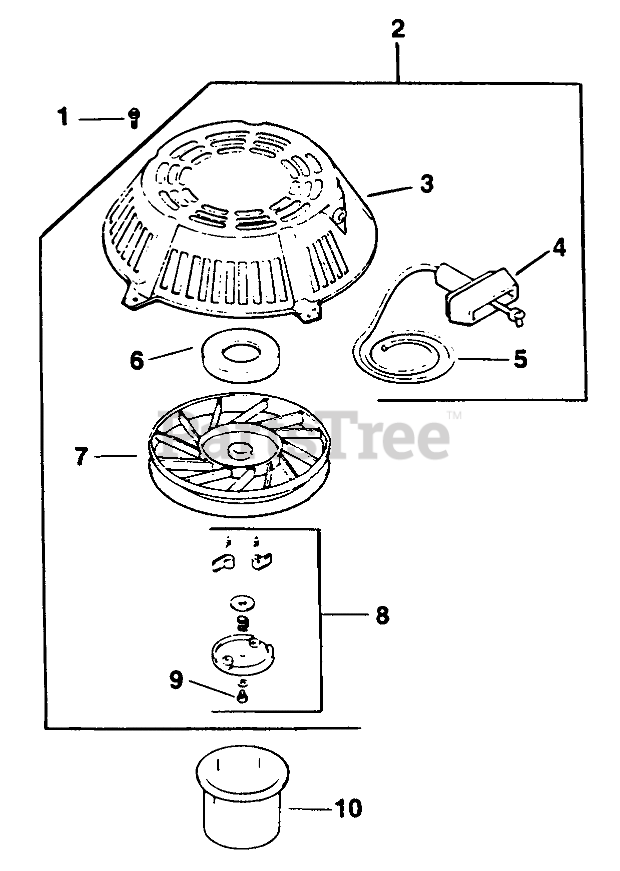

STARTING SYSTEM-ENGINE KOHLER MODEL NO. CV1 4T-1412 Parts Diagram

  • Title

$

$

Not available

2

12_165_01

Starter (Incl.Ref.#3-9)

$

$

Not available

3

12_081_01

Housing-Starter

$

$

Not available

4

Kohler 234452

Handle
(Superseded to 25 166 01)

$15.99

$

In Stock, Qty 10

0

5

12_160_01

Rope

$

$

Not available

6

12_089_06

Spring & Keeper

$

$

Not available

7

12_089_01

Pulley

$

$

Not available

8

Toro 12_757_06

Kit-Dog Replacement

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Toro 15_109_01

Cup-Drive

$

$

Currently unavailable
