30114 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 000000001 - 000999999) (1990) IGNITION/ELECTRICAL-ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

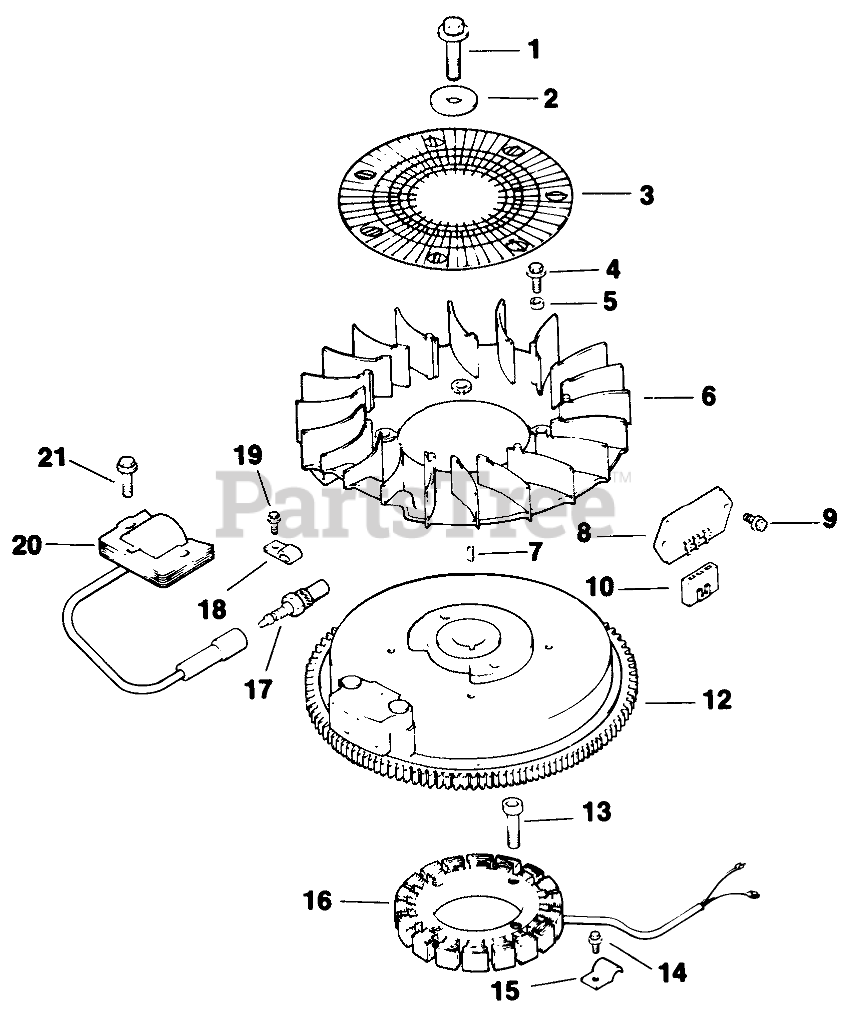

IGNITION/ELECTRICAL-ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

  • Title

1

Toro SM-1040045

Screw-Flywheel

$

$

Currently unavailable

2

Toro 12_468_03

Washer

$

$

Currently unavailable

3

12_162_03

Screen-Grass

$

$

Not available

4

Kohler SM-0639016

Screw-Fan
(Superseded to M-0639016)

$2.49

$

Usually ships in 2-5 days

0

5

12_112_01

Spacer-Fan

$

$

Not available

6

12_157_01

Fan

$

$

Not available

7

Kohler X-42-15

Key
(Superseded to X-42-15-S)

$2.99

$

In Stock, Qty 9

0

8

Toro 12_403_08

Rectifier-Unregulator

$

$

Currently unavailable

9

Kohler SM-639016

Screw-Regulator
(Superseded to M-651016)

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 236602

Connector
(Superseded to 236602-S)

$7.99

$

In Stock, only 1 left!

0

12

12_025_04

Flywheel Assembly

$

$

Not available

13

Toro SM-0548025

Screw-Stator

$

$

Currently unavailable

14

Kohler SM-0545010

Screw

$

$

Not available

15

12_154_02

Clip

$

$

Not available

16

Toro 41_085_07

Stator 15 amp.

$

$

Currently unavailable

17

12_132_02

Spark Plug

$

$

Not available

18

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

19

Kohler SM-0545010

Screw

$

$

Not available

20

Toro 12_584_02

Module-Ignition

$

$

Currently unavailable

21

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

Toro 25_518_05

Lead-Black

$

$

Currently unavailable

Toro 12_518_01

Lead-White

$

$

Currently unavailable

Toro 41_555_03

Connector

$

$

Currently unavailable
