30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

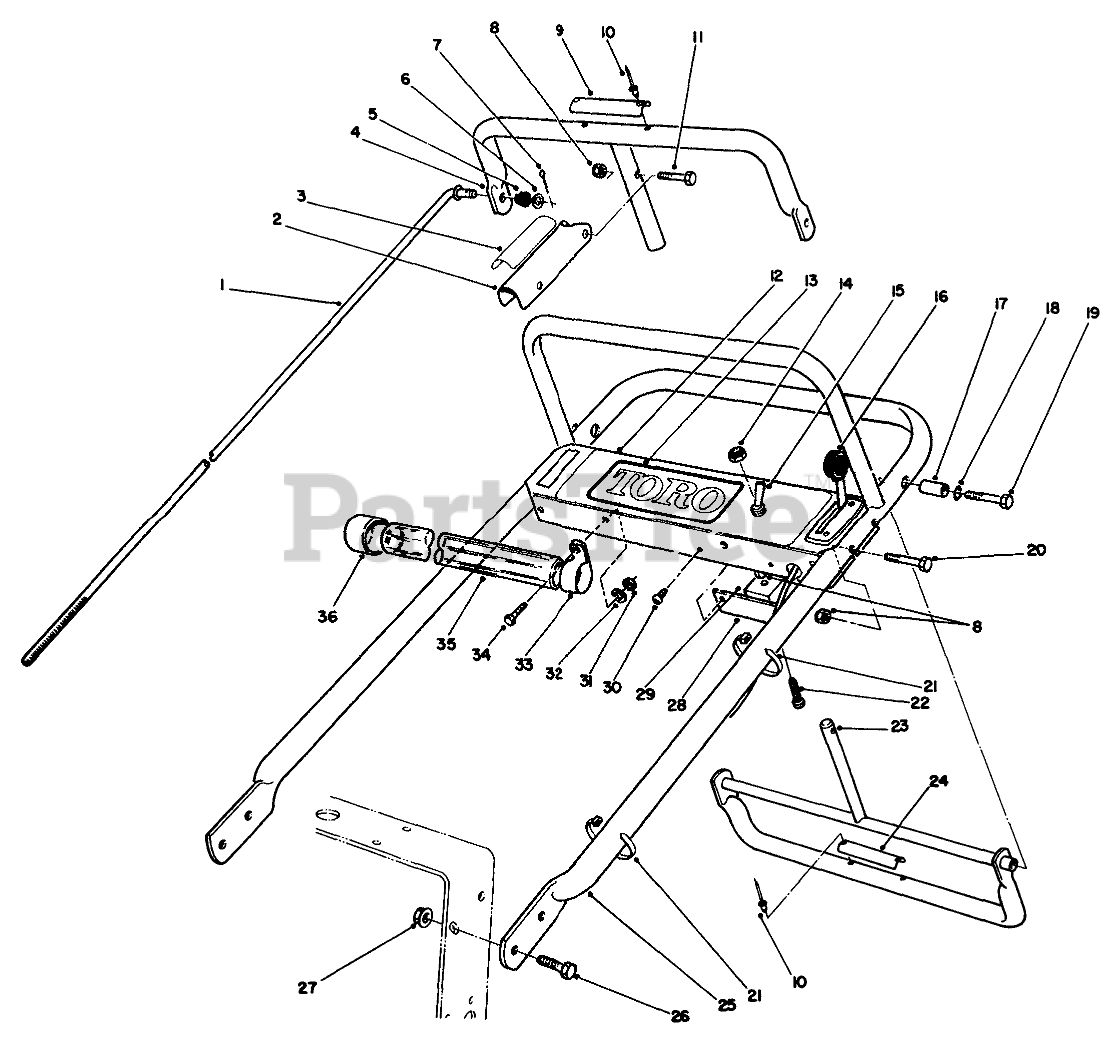

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-3070

ROD-CONTROL

$

$

Not available

2

Toro 51-4850

Lever-Parking Brake
(Superseded to 51-4850-03)

$38.99

$

In Stock, only 1 left!

0

3

Toro 52-2010

DECAL-LEVER, PARKING

$5.99

$

Usually ships in 3-6 days

0

4

Toro 51-4730

Bar-Control
(Superseded to 51-4730-03)

$

$

Not available

5

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

7

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

8

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 54-2740

DECAL-CONTROL BAR

$

$

Not available

10

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

11

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

12

Toro 68-9680

Panel-Control
(Superseded to 74-0790)

$

$

Not available

13

Toro 57-3130

JLO PANEL DECAL

$

$

Not available

14

Toro 218-500

NUT
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 37-2610

Switch
(Superseded to 92-6328)

$

$

Not available

16

Toro 71-3180

THROTTLE CONTROL JLO

$143.99

$

Usually ships in 3-6 days

0

17

Toro 51-4790

PIVOT-SPACER

$

$

Not available

18

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

19

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

23

Toro 51-4760

Control-Pivot
(Superseded to 106-5477-03)

$202.99

$

Usually ships in 3-6 days

0

24

Toro 52-2120

DECAL-REVERSE HANDLE

$

$

Not available

25

Toro 51-4550

HANDLE-UPPER
(Superseded to 51-4550-01)

$

$

Not available

26

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 57-5810

PANEL-BOTTOM

$

$

Not available

29

Toro 37-7600

RECTIFIER-BRIDGE

$27.99

$

In Stock, only 1 left!

0

30

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

32

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 2412-102

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

34

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 65-5870

TUBE

$

$

Not available

36

Toro 65-5890

CAP-END

$

$

Not available
