30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 009000001 - 009999999) (1989) CYLINDER & MUFFLER ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

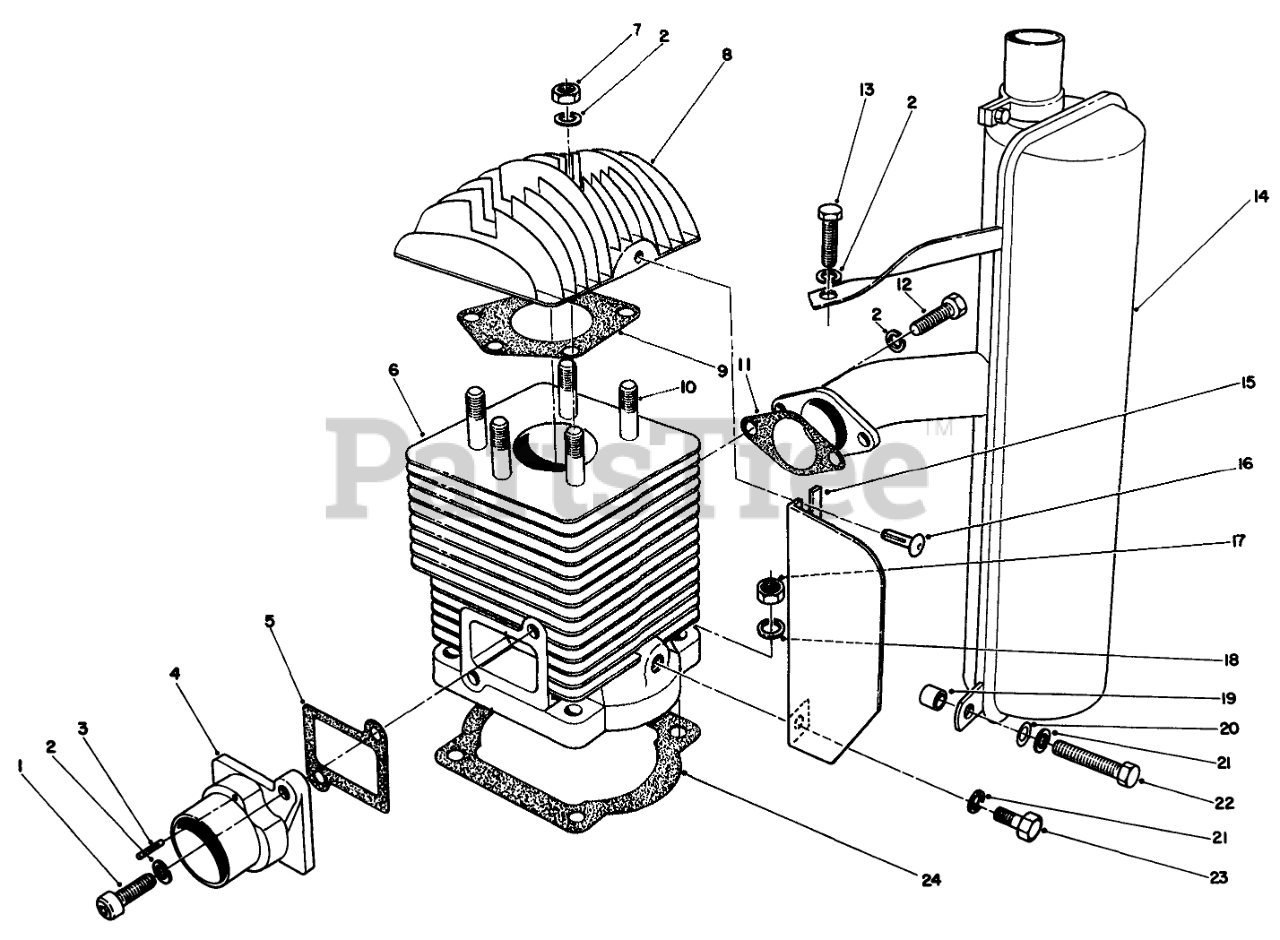

CYLINDER & MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 55-5390

Capscrew-Socket Head

$

$

Not available

2

Toro 55-5070

Lockwasher

$

$

Not available

3

Toro 55-5370

Pin-Wrist

$

$

Not available

4

Toro 55-5360

Manifold-Carburetor

$

$

Not available

5

Toro 55-5380

Gasket

$

$

Not available

6

Toro 59-9020

Cylinder

$

$

Not available

7

Toro 55-5310

Nut

$

$

Not available

8

Toro 55-5290

Cylinder Head

$

$

Not available

9

Toro 55-5300

CYL. HEAD GASKET

$

$

Not available

10

Toro 55-5280

Stud

$

$

Not available

11

Toro 55-5430

Gasket

$

$

Not available

12

Toro 55-5440

Screw-Hex Head

$

$

Not available

13

Toro 55-5460

Screw-Hex Head

$

$

Not available

14

Toro 59-9030

Muffler

$

$

Not available

15

Toro 72-2950

Air Guide Kit (Incl. Ref. #19, 22-24)

$

$

Not available

16

Toro 72-2910

Rivet

$

$

Not available

17

Toro 55-5340

Nut

$

$

Not available

18

Toro 55-5350

Lockwasher

$

$

Not available

19

Toro 55-5420

Spacer-Tube

$

$

Not available

20

Toro 55-5450

Washer

$

$

Not available

21

Toro 55-5400

Lockwasher

$

$

Not available

22

Toro 72-2870

Screw-Hex Head

$

$

Not available

23

Toro 72-2930

Capscrew-Hex Head

$

$

Not available

24

Toro 55-5330

Gasket

$

$

Not available

Toro 55-5940

Short Block

$

$

Not available

Toro 55-5950

GASKET SET

$267.99

$

Usually ships in 3-6 days

0

Toro 55-5930

Cylinder Set

$

$

Not available
