30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 009000001 - 009999999) (1989) CRANKCASE & FLYWHEEL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

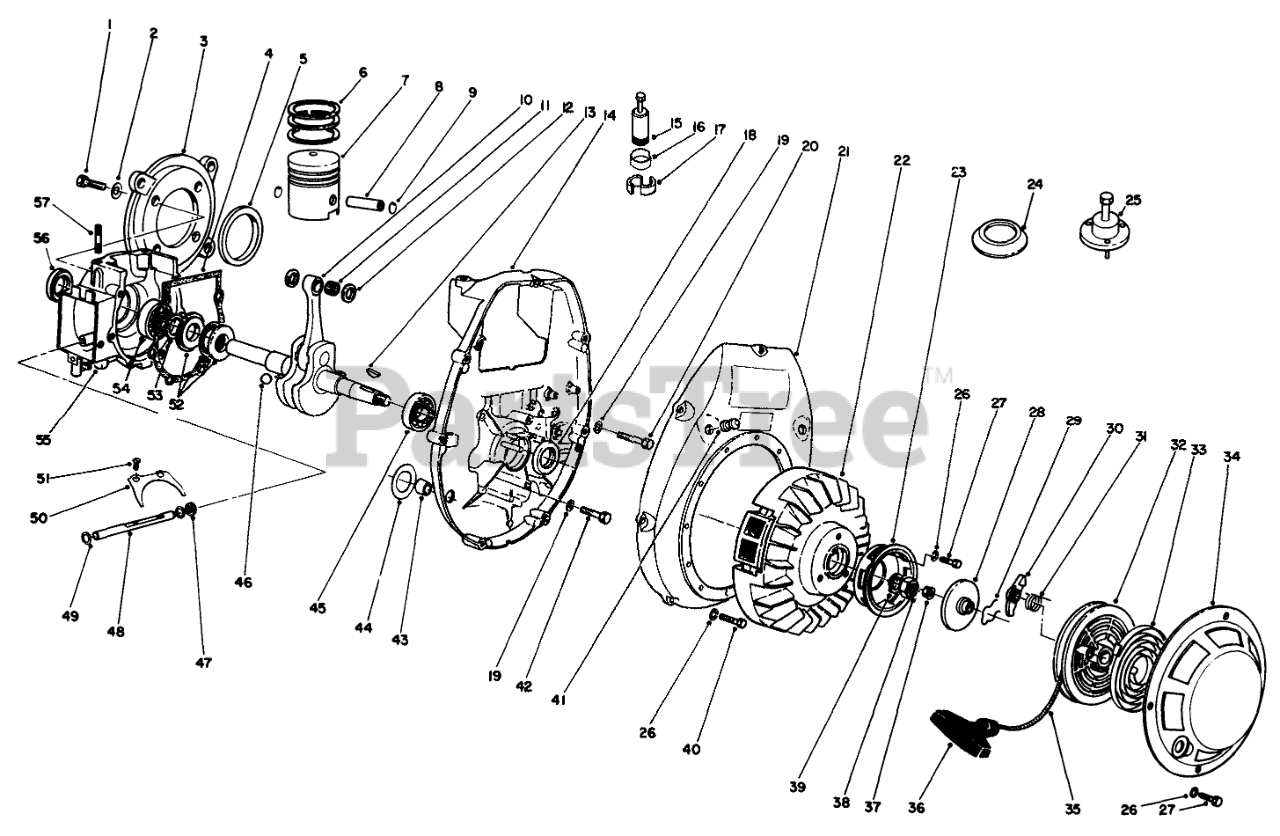

CRANKCASE & FLYWHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 72-3100

Capscrew

$

$

Not available

2

Toro 55-5350

Lockwasher

$

$

Not available

3

Toro 72-3080

Intermediate Flange Ring

$

$

Not available

4

Toro 55-5080

CRANKCASE GASKET

$

$

Not available

5

Toro 72-3090

Ring

$

$

Not available

6

Toro 55-5240

Piston Rings

$

$

Not available

Toro 55-6470

Piston Rings

$

$

Not available

Toro 55-6480

Piston Rings

$

$

Not available

7

Toro 55-5230

Piston-Std. 69 MM Dia. (Incl. Ref. #6, 8 & 9)

$

$

Not available

Toro 55-6450

Piston-1st Oversize 69.5 MM Dia. (Incl. Ref. #6, 8 & 9)

$

$

Not available

Toro 55-6460

Piston-2nd Oversize 70 MM Dia. (Incl. Ref. #6, 8 & 9)

$

$

Not available

8

Toro 55-5250

Wrist Pin

$

$

Not available

9

Toro 55-5260

Locking Ring

$

$

Not available

10

Toro 72-3000

Crankshaft Assembly
(Superseded to 59-8790)

$

$

Not available

11

Toro 72-3020

Bearing-Needle

$

$

Not available

12

Toro 55-5210

Washer

$

$

Not available

13

Toro 55-5190

Key-Woodruff

$

$

Not available

14

Toro 72-3040

Crankcase

$

$

Not available

15

Toro 55-6070

Extractor

$

$

Not available

16

Toro 55-6090

Retaining Ring

$

$

Not available

17

Toro 55-6080

Half Bushes (Pair)

$

$

Not available

18

Toro 55-5100

Oil Seal

$

$

Not available

19

Toro 55-5070

Lockwasher

$

$

Not available

20

Toro 59-8810

Capscrew-Hex Hd.

$

$

Not available

21

Toro 55-5710

Cover-Fan

$

$

Not available

22

Toro 72-2830

Wheel-Fan

$

$

Not available

23

Toro 55-5910

Carrier

$

$

Not available

24

Toro 55-6110

Meter-Revolution Frequency

$

$

Not available

25

Toro 55-6100

Puller

$

$

Not available

26

Toro 55-5400

Lockwasher

$

$

Not available

27

Toro 55-5920

Screw-Hex Head

$

$

Not available

28

Toro 55-5880

Brake-Disc

$

$

Not available

29

Toro 55-5860

SPRING

$

$

Not available

30

Toro 55-5840

Pawl

$

$

Not available

31

Toro 55-5870

Spring

$

$

Not available

32

Toro 55-5830

Pulley-Rope

$

$

Not available

33

Toro 55-8550

PISTON/PIN ASM

$

$

Not available

34

Toro 55-5820

Housing-Starter

$

$

Not available

35

Toro 55-5900

Rope (Incl. Ref. #36)

$

$

Not available

36

Toro 59-9320

Handle

$

$

Not available

37

Toro 65-5890

CAP-END

$

$

Not available

38

Toro 55-5140

Nut

$

$

Not available

39

Toro 55-5150

Washer

$

$

Not available

40

Toro 55-5720

HEX HEAD SCREW

$

$

Not available

41

Toro 55-6700

Plug

$

$

Not available

42

Toro 55-5060

Screw-Hex Head

$

$

Not available

43

Toro 55-6370

PLUG

$

$

Not available

44

Toro 59-8830

Washer

$

$

Not available

45

Toro 55-5170

Ball Bearing

$

$

Not available

46

Toro 72-3010

Ball

$

$

Not available

47

Toro 59-8720

Seal-Oil

$

$

Not available

48

Toro 59-8730

Shaft-Governor

$

$

Not available

49

Toro 59-8740

Washer

$

$

Not available

50

Toro 59-8750

Fork-Governor

$

$

Not available

51

Toro 59-8760

Screw

$

$

Not available

52

Toro 59-8770

Needle Bearing Assembly

$

$

Not available

53

Toro 59-8780

Washer

$

$

Not available

54

Toro 55-5160

Ball Bearing

$

$

Not available

55

Toro 72-2970

Crankcase-PTO Side

$

$

Not available

56

Toro 55-5090

Oil Seal

$

$

Not available

57

Toro 55-5020

Stud

$

$

Not available
