30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 008000001 - 008999999) (1988) GOVERNOR ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

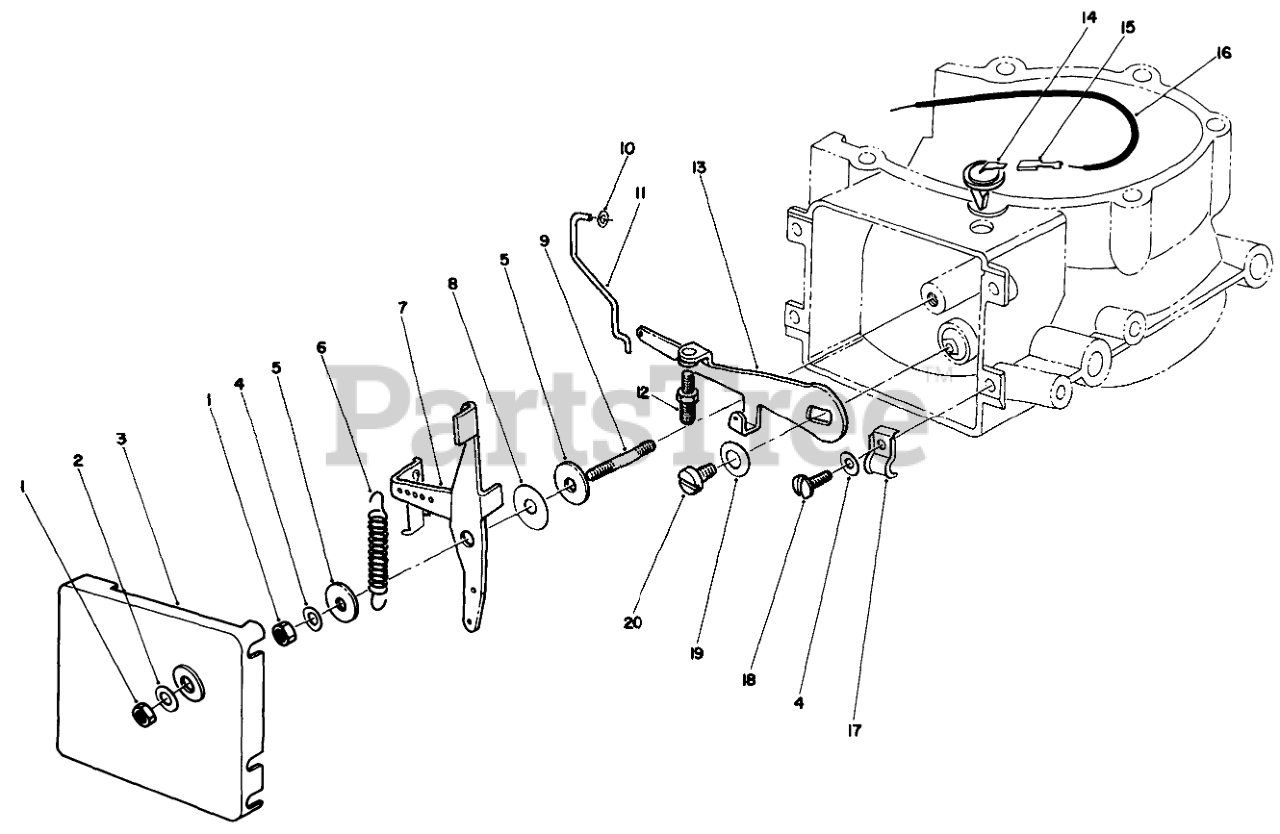

GOVERNOR ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro 55-6360

Washer

$

$

Not available

3

Toro 59-9000

Cover-Governor Housing

$

$

Not available

4

Toro 59-8980

Washer-Spring

$

$

Not available

5

Toro 59-8970

Washer

$

$

Not available

6

Toro 59-8860

Spring

$

$

Not available

7

Toro 59-8850

Lever

$

$

Not available

8

Toro 59-8950

Disc-Brake

$

$

Not available

9

$

$

Not available

10

Toro 59-8920

Washer-Tab

$

$

Not available

11

Toro 59-8840

LINKAGE

$

$

Not available

12

Toro 59-8880

Damping Spring Assembly

$

$

Not available

13

Toro 59-8910

Lever

$

$

Not available

14

Toro 59-8930

Connector Assembly

$

$

Not available

15

Toro 59-8940

Connector-Spade

$

$

Not available

16

$

$

Not available

17

Toro 59-8870

Clamp

$

$

Not available

18

Toro 59-9010

Screw

$

$

Not available

19

Toro 59-8900

Washer-Spring

$

$

Not available

20

Toro 59-8890

Screw

$

$

Not available
