30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 007000001 - 007999999) (1987) CARBURETOR ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

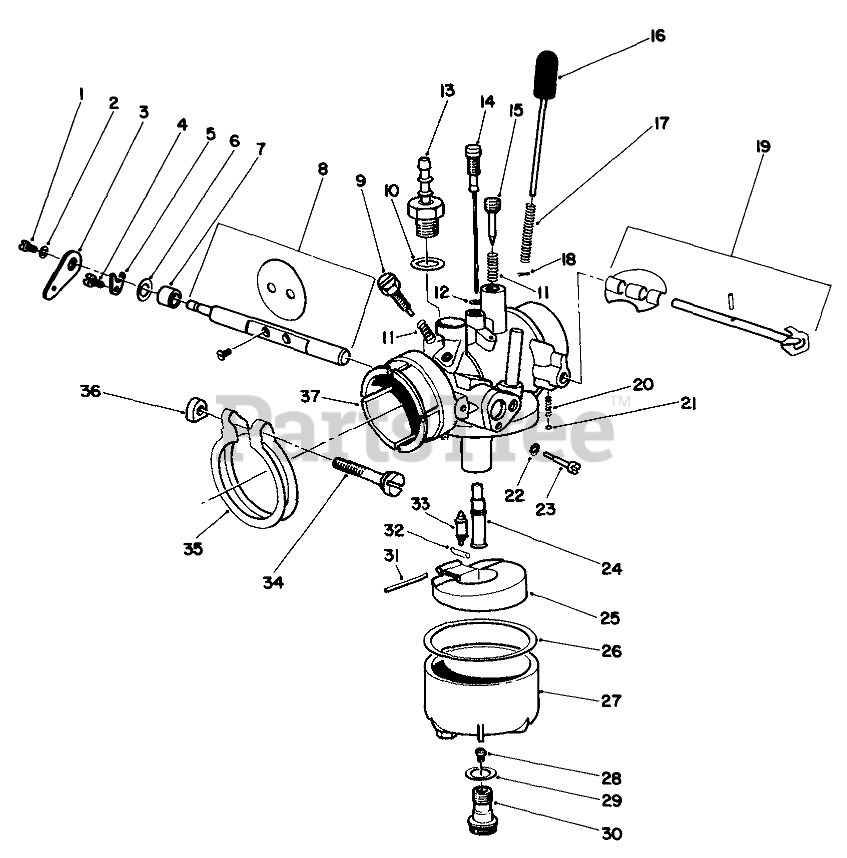

CARBURETOR ASSEMBLY Parts Diagram

  • Title
1

Toro 59-9230

Capscrew

$

$

Not available

2

Toro 59-9310

Washer
(Superseded to 72-3300)

$

$

Not available

3

Toro 59-9260

Lever

$

$

Not available

4

Toro 59-9240

Capscrew

$

$

Not available

5

Toro 59-9170

Plate

$

$

Not available

6

Toro 59-9250

Washer

$

$

Not available

7

Toro 55-5510

Sleeve

$

$

Not available

8

Toro 59-9180

Butterfly Shaft Assembly

$

$

Not available

10

Toro 55-5530

Gasket Ring

$

$

Not available

11

Toro 55-5660

Spring

$

$

Not available

12

Toro 55-5570

GASKET RING

$

$

Not available

13

Toro 59-9200

Nipple

$

$

Not available

14

Toro 55-5610

Idling Jet

$

$

Not available

15

Toro 55-5480

Screw

$

$

Not available

16

Toro 55-5650

Tickler

$

$

Not available

17

Toro 55-5670

Spring

$

$

Not available

18

Toro 55-5680

Split Pin

$

$

Not available

19

Toro 59-9290

Butterfly Shaft Assembly

$

$

Not available

20

Toro 59-9210

Spring

$

$

Not available

21

$

$

Not available

22

Washer-Star

$

$

Not available

23

Capscrew

$

$

Not available

24

Tube-Mixture

$

$

Not available

25

Toro 55-5580

Float

$

$

Not available

26

Toro 55-5560

Gasket Ring

$

$

Not available

27

Toro 55-5960

Chamber-Float

$

$

Not available

28

Toro 55-6500

Jet-Main 120 Std.

$

$

Not available

Toro 55-6510

Jet-Main 115 Over 3000 ft.

Note: Not Illustrated.

$

$

Not available

Toro 59-9160

Jet-Main 110 Over 6000 ft.

Note: Not Illustrated.

$

$

Not available

29

Toro 55-5590

GASKET RING

$

$

Not available

30

$

$

Not available

31

$

$

Not available

32

Toro 55-5640

RETAINER

$

$

Not available

33

Toro 55-5550

FLOAT NEEDLE

$53.99

$

Usually ships in 3-6 days

0

35

Toro 59-9270

Ring-Retaining

$

$

Not available

36

$

$

Not available

37

Toro 59-9300

Carburetor

$

$

Not available

Toro 59-9150

Carburetor Assembly

Note: Not Illustrated.

$

$

Not available
