30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 006000001 - 006999999) (1986) FRAME ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

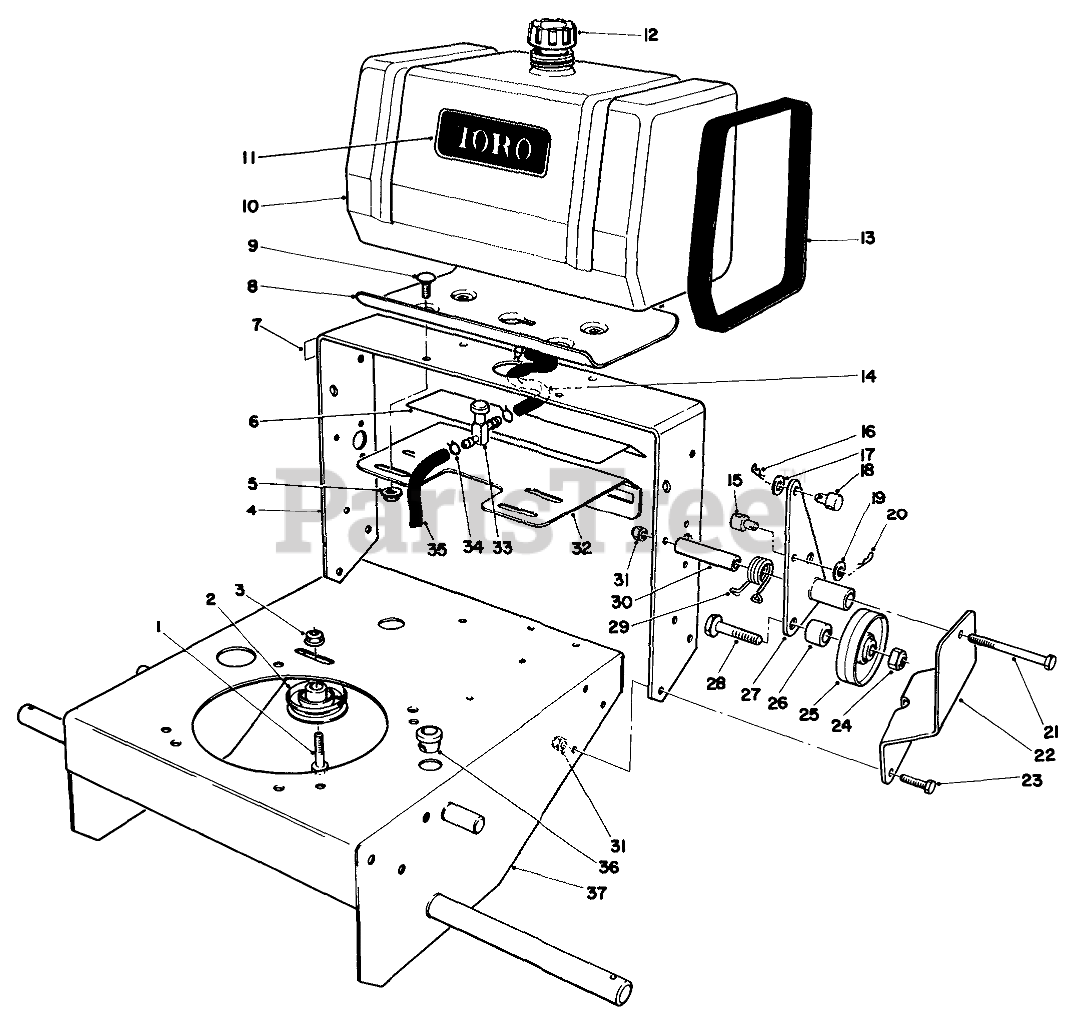

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 51-4810

PULLEY-IDLER

$46.99

$

Usually ships in 3-6 days

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 54-3170

Frame-Rear
(Superseded to 74-0360-01)

$

$

Not available

5

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 52-2140

Decal-Ground Speed
(Superseded to 82-7750)

$

$

Not available

7

Toro 55-4230

Decal-Fuel Shut Off
(Superseded to 74-0490)

$

$

Not available

8

Toro 54-3100

Plate-Fuel Tank

$

$

Not available

9

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

10

Toro 54-2010

Tank-Fuel
(Superseded to 62-4040)

$

$

Not available

11

Toro 57-4170

GAS TANK DECAL

$

$

Not available

12

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$16.99

$

Usually ships in 3-6 days

0

13

Toro 54-3110

Hinge-Seat

$

$

Not available

14

Toro 47-2984

Hose-Gas
(Superseded to 114-4428)

$10.99

$

Usually ships in 3-6 days

0

15

Toro 51-4690

ROD FITTING

$

$

Not available

16

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 54-3080

ROD FITTING

$

$

Not available

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

21

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

22

Toro 51-4360

Support-Idler L.H.
(Superseded to 67-6380-01)

$126.99

$

Usually ships in 3-6 days

0

Toro 51-4350

Support-Idler R.H.
(Superseded to 67-6370-01)

Note: Not Illustrated.

$126.99

$

Usually ships in 3-6 days

0

23

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 51-4480

IdlerWheel
(Superseded to 99-5879)

$67.99

$

Usually ships in 3-6 days

0

26

Toro 51-4490

WHEEL IDLER SPACER

$

$

Not available

27

Toro 51-4310

LH IDLER BRKT WA

$96.99

$

Usually ships in 3-6 days

0

Toro 51-4300

Bracket-Idler R.H.
(Superseded to 67-6750)

Note: Not Illustrated.

$

$

Not available

28

Toro 51-4450

SCREW-LEVELER

$13.99

$

Usually ships in 3-6 days

0

29

Toro 51-4380

SPRING-TORSION, LH

$17.99

$

In Stock, only 1 left!

0

Toro 51-4370

SPRING-TORSION, RH

Note: Not Illustrated.

$17.99

$

In Stock, only 1 left!

0

30

Toro 51-4340

PIVOT-IDLER SPACER

$22.99

$

In Stock, only 1 left!

0

31

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

32

Toro 51-4140

CONTROL PLATE R

$

$

Not available

33

Toro 54-3150

FUEL VALVE
(Superseded to 1-603770)

$8.49

$

In Stock, Qty 7

0

34

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

35

Toro 47-2980

HOSE-FUEL
(Superseded to 107-0588)

$5.99

$

In Stock, only 4 left!

0

36

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

37

Toro 51-4100

Frame

$

$

Not available
