30113 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 006000001 - 006999999) (1986) AXLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

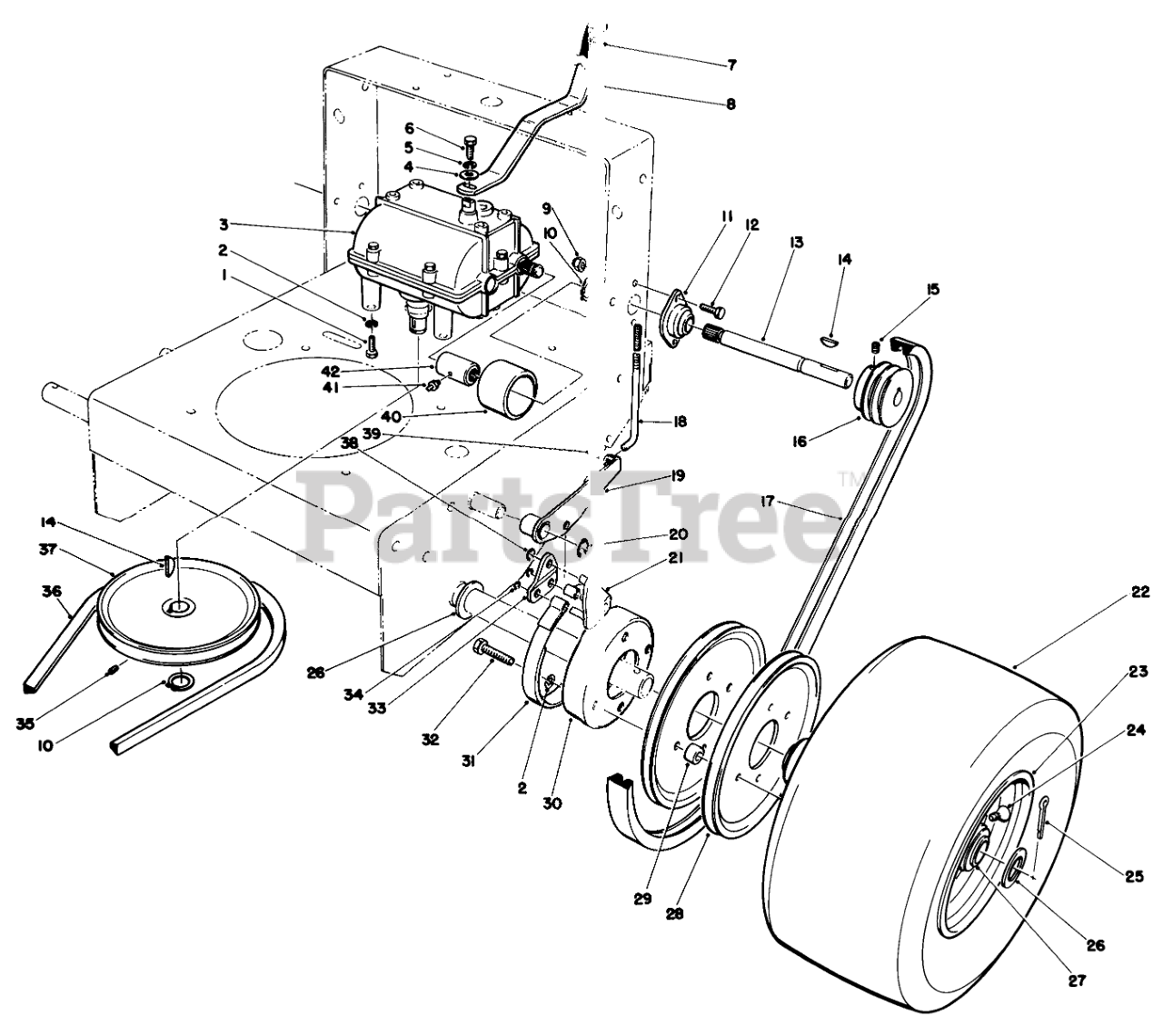

AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 51-4090

Transmission
(Superseded to 74-0610)

$

$

Not available

4

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

5

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 47-1970

GRIP

$15.99

$

Usually ships in 3-6 days

0

8

Toro 51-4150

LEVER-SHIFT

$269.99

$

Usually ships in 3-6 days

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

11

Toro 51-4270

BEARING-EXTERNAL SHAFT

$43.99

$

In Stock, only 4 left!

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 51-4240

SHAFT-EXTENSION, RH

$67.99

$

In Stock, only 2 left!

0

Toro 51-4250

SHAFT-EXTENSION, LH

Note: Not Illustrated.

$63.99

$

In Stock, only 1 left!

0

14

Toro 3257-411

Key-Non Roc

$

$

Currently unavailable

15

Toro 3246-6

SCREW-SET, HSH

$7.49

$

Usually ships in 3-6 days

0

16

Toro 51-4280

Pulley-Drive
(Superseded to 99-5878)

$80.99

$

Usually ships in 3-6 days

0

17

Toro 51-4290

V-BELT

$94.99

$

In Stock, only 3 left!

0

18

Toro 51-4580

ROD-BRAKE

$58.99

$

Usually ships in 3-6 days

0

19

Toro 51-4610

Brake Arm-LH
(Superseded to 106-5537-01)

$117.99

$

Usually ships in 3-6 days

0

Toro 51-4600

Brake Arm-RH
(Superseded to 106-5537-01)

Note: Not Illustrated.

$117.99

$

Usually ships in 3-6 days

0

20

Toro 32151-40

RING-RETAINING

$7.49

$

In Stock, Qty 6

0

21

Toro 51-4650

LINK-Brake
(Superseded to 51-4650-01)

$64.99

$

Usually ships in 3-6 days

0

22

Toro 231-111

TIRE

$104.99

$

Usually ships in 3-6 days

0

23

Toro 242-73

Rim
(Superseded to 242-80)

$347.99

$

Usually ships in 3-6 days

0

24

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

25

Toro 3272-30

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

26

Toro 51-4230

WASHER-WHEEL

$5.99

$

In Stock, only 1 left!

0

27

Toro 251-299

BEARING-WHEEL

$58.99

$

Usually ships in 3-6 days

0

28

Toro 51-4160

Pulley-Wheel
(Superseded to 51-4160-03)

$52.99

$

In Stock, only 2 left!

0

29

Toro 51-4170

SPACER-PULLEY

$10.99

$

Usually ships in 3-6 days

0

30

Toro 51-4180

Drum-Brake
(Superseded to 51-4180-03)

$72.99

$

Usually ships in 3-6 days

0

31

Toro 51-4700

BAND-BRAKE

$67.99

$

In Stock, Qty 10

0

32

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 51-4660

Plate-Link
(Superseded to 51-4660-01)

$31.99

$

Usually ships in 3-6 days

0

34

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, only 2 left!

0

35

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

36

Toro 26-9670

V-BELT

$25.99

$

In Stock, only 2 left!

0

37

Toro 51-4190

PULLEY-DRIVEN

$79.99

$

In Stock, only 3 left!

0

38

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.49

$

In Stock, Qty 5

0

39

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

40

Toro 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 1 left!

0

41

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

42

Toro 51-4260

COUPLER

$56.99

$

In Stock, Qty 7

0
