30112 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 009000001 - 009999999) (1989) ENGINE AND CLUTCH ASSEMBIY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

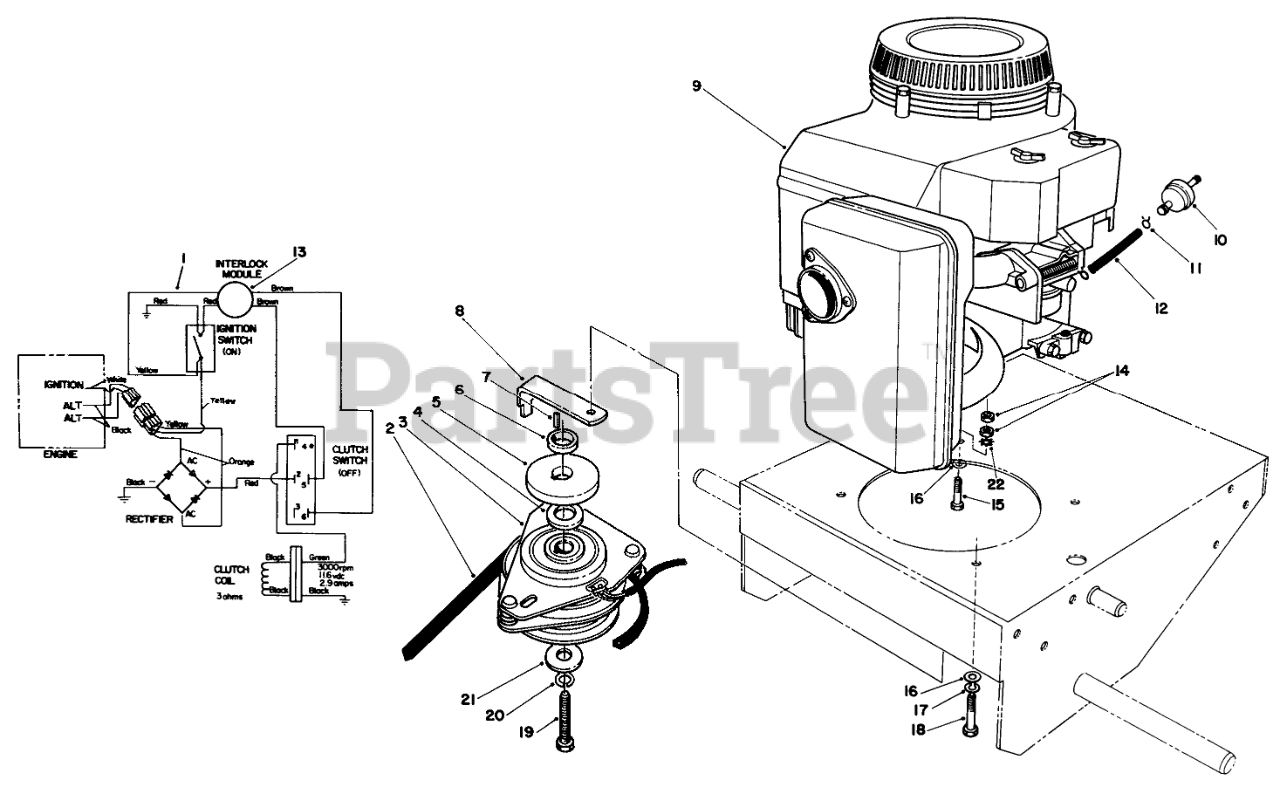

ENGINE AND CLUTCH ASSEMBIY Parts Diagram

  • Title

1

Toro 57-6320

WIRE HARNESS

$

$

Not available

2

Toro 54-2750

V-BELT, DRIVE

$59.99

$

In Stock, only 2 left!

0

3

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

4

Toro 51-3280

SPACER-LOWER

$

$

Not available

5

Toro 51-4460

Pulley-Drive
(Superseded to 100-3251)

$

$

Not available

6

Toro 51-3290

Spacer-Upper

$

$

Not available

7

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

8

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 1 left!

0

9

Engine-Kawasaki, FB460V Type DS08

Note: Not serviced separately

$

$

Not available

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

11

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

12

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$9.99

$

In Stock, only 1 left!

0

13

Toro 51-3250

Module
(Superseded to 77-4990)

$201.99

$

Usually ships in 3-6 days

0

14

Toro 57-6390

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

15

Toro 57-6370

SCREW (ENGINE, GROUND)

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 57-6380

SCREW-HH
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

19

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

20

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

21

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

22

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0
