30112 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 008000001 - 008999999) (1988) FRAME ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

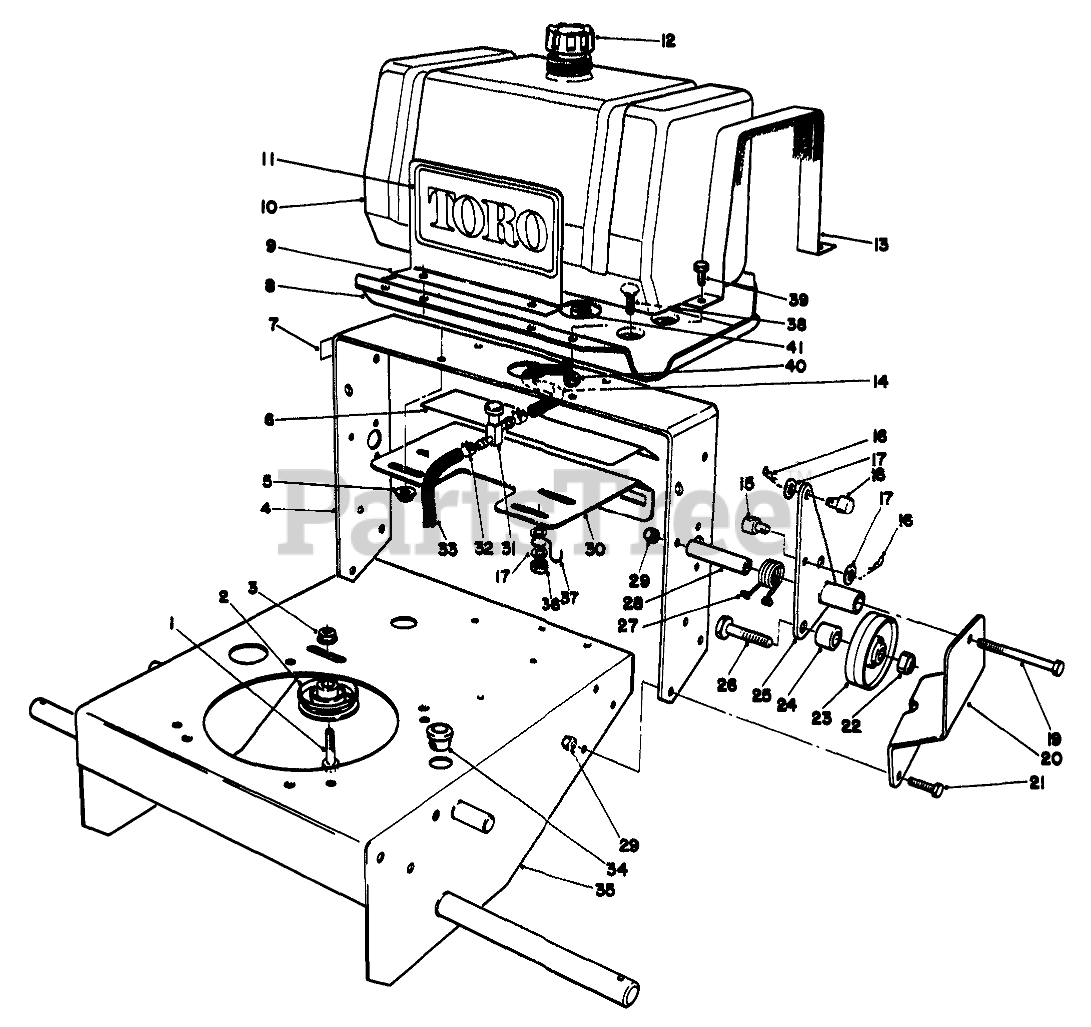

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 51-4810

PULLEY-IDLER

$49.99

$

Usually ships in 3-6 days

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 543170

Frame-Rear

$

$

Currently unavailable

5

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 52-2140

Decal-Ground Speed
(Superseded to 82-7750)

$

$

Not available

7

Toro 55-4230

Decal-Fuel Shut Off
(Superseded to 74-0490)

$

$

Not available

8

Toro 62-4030

PLATE-FUEL TANK

$

$

Not available

9

Toro 62-4120

DECAL-PLATE

$

$

Not available

10

Toro 62-4040

TANK-FUEL

$

$

Not available

11

Toro 62-5550

DECAL

$10.99

$

In Stock, only 4 left!

0

12

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, Qty 9

0

13

Toro 62-5500

STRAP ASM

$

$

Not available

14

Toro 47-2980

HOSE-FUEL
(Superseded to 107-0588)

$5.99

$

In Stock, only 2 left!

0

15

Toro 51-4690

ROD FITTING

$

$

Not available

16

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

17

Toro 325423

Washer-Plain Flat

$

$

Currently unavailable

18

Toro 54-3080

ROD FITTING

$

$

Not available

19

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 16

0

20

Toro 51-4360

Support-Idler L.H.
(Superseded to 67-6380-01)

$134.99

$

Usually ships in 3-6 days

0

Toro 51-4350

Support-Idler R.H.
(Superseded to 67-6370-01)

Note: Not Illustrated.

$134.99

$

Usually ships in 3-6 days

0

21

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 51-4480

IdlerWheel
(Superseded to 99-5879)

$71.99

$

Usually ships in 3-6 days

0

24

Toro 51-4490

WHEEL IDLER SPACER

$

$

Not available

25

Toro 51-4310

LH IDLER BRKT WA

$102.99

$

Usually ships in 3-6 days

0

Toro 51-4300

Bracket-Idler R.H.
(Superseded to 67-6750)

Note: Not Illustrated.

$

$

Not available

26

Toro 51-4450

SCREW-LEVELER

$14.99

$

Usually ships in 3-6 days

0

27

Toro 51-4380

SPRING-TORSION, LH

$18.99

$

In Stock, only 3 left!

0

Toro 51-4370

SPRING-TORSION, RH

Note: Not Illustrated.

$18.99

$

In Stock, only 3 left!

0

28

Toro 51-4340

PIVOT-IDLER SPACER

$22.99

$

In Stock, only 1 left!

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 66-7400

Plate
(Superseded to 66-7400-01)

$

$

Not available

31

Toro 54-3150

FUEL VALVE
(Superseded to 1-603770)

$8.99

$

In Stock, Qty 7

0

32

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

33

Toro 47-2985

GAS HOSE
(Superseded to 109-0304)

$2.49

$

In Stock, Qty 5

0

34

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

35

Toro 51-4100

Frame

$

$

Not available

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 62-5610

GAS LINE CLIP

$

$

Not available

38

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

41

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0
