30112 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 008000001 - 008999999) (1988) CARBURETOR ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

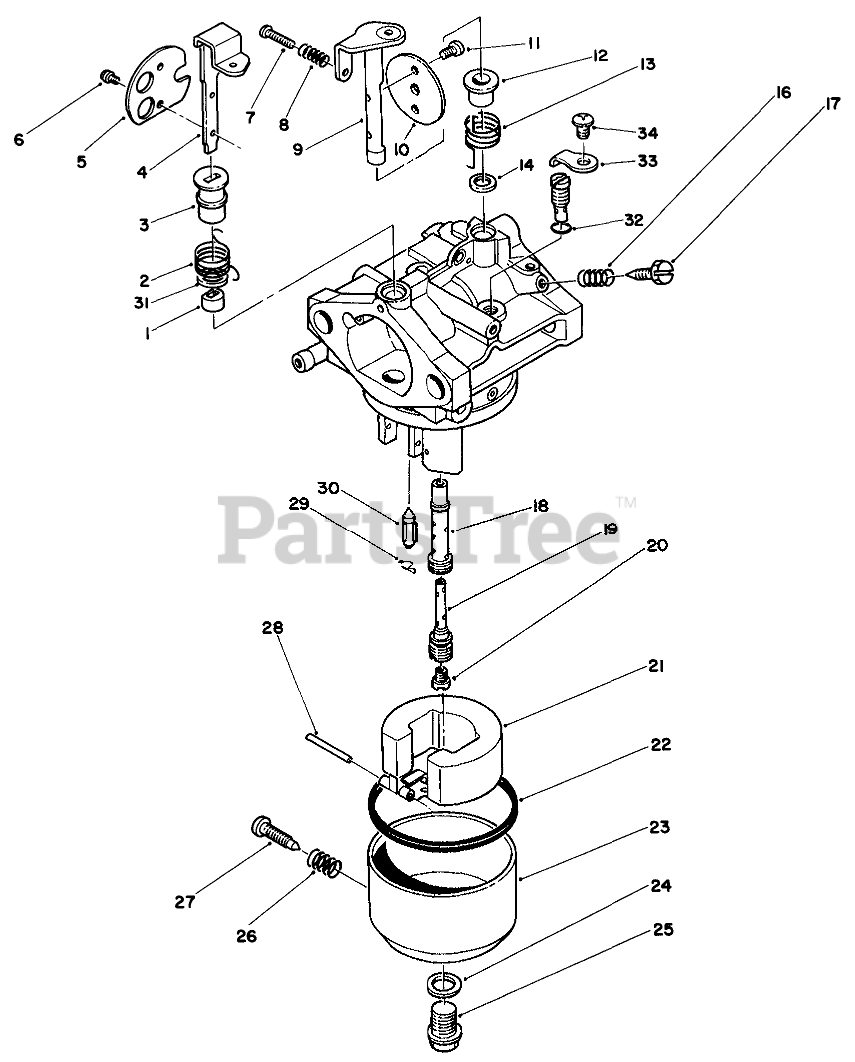

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Kawasaki 314598-6138A

Ring
(Superseded to 92027-2003)

$3.99

$

Usually ships in 2-5 days

0

2

Kawasaki 92144-2160

Spring

$

$

Not available

3

Toro 92143-2142

Ring

$

$

Currently unavailable

4

Toro 16041-2010

Shaft-Choke

$

$

Currently unavailable

5

Kawasaki 16126-2105

Valve-Choke

$3.99

$

Usually ships in 2-5 days

0

6

Toro 314572-6137A

Screw

$

$

Currently unavailable

7

Toro 92009-2079

Screw

$

$

Currently unavailable

8

Toro 313650-6108-00

Spring

$

$

Currently unavailable

9

Kawasaki 16041-2009

Shaft-Throttle

$29.99

$

In Stock, only 1 left!

0

10

Toro 16025-2114

Valve-Throttle

$

$

Currently unavailable

11

Toro 316550-6137A

Screw

$

$

Currently unavailable

12

Kawasaki 92027-2025

Collar

$3.99

$

Usually ships in 2-5 days

0

13

Kawasaki 92081-2077

Spring

$8.99

$

In Stock, only 1 left!

0

14

Kawasaki 316626-6206A

Seal
(Superseded to 92093-2002)

$1.99

$

In Stock, Qty 5

0

15

Toro 92064-2062

Jet

$

$

Currently unavailable

16

Toro 312750-6116-00

Spring

$

$

Currently unavailable

17

Toro 16014-2055

Screw

$

$

Currently unavailable

18

Kawasaki 49121-2077

Nozzle

$

$

Not available

19

Kawasaki 49123-2058

Pipe-Bleed

$

$

Not available

20

Toro 92063-2010

Jet

$

$

Currently unavailable

21

Kawasaki 16031-2066

Float

$29.99

$

In Stock, Qty 8

0

22

Kawasaki 313650-6128-00

Gasket
(Superseded to 11009-2024)

$4.49

$

In Stock, Qty 20+

0

23

Kawasaki 16020-2094

Chamber-Float
(Superseded to 16020-2109)

$47.99

$

Usually ships in 2-5 days

0

24

Toro 318190-6159-00

Washer

$

$

Currently unavailable

25

Kawasaki 314486-6143A

Bolt
(Superseded to 92002-2009)

$10.99

$

Usually ships in 2-5 days

0

26

Toro 313122-6116-00

Spring

$

$

Currently unavailable

27

Kawasaki 315470-6133A

Screw
(Superseded to 92009-2015)

$5.49

$

Usually ships in 2-5 days

0

28

Kawasaki 314499-6127A

Pin
(Superseded to 92043-2006)

$3.49

$

In Stock, only 1 left!

0

29

Kawasaki 315721-6134A

Clip
(Superseded to 92033-2067)

$5.49

$

In Stock, only 3 left!

0

30

Kawasaki 16030-2021

Valve-Needle

$33.99

$

In Stock, only 2 left!

0

Toro 15001-2721

Carburetor ASM

Note: Not Illustrated.

$

$

Currently unavailable

31

Kawasaki 92093-2069

Seal

$1.49

$

In Stock, only 3 left!

0

32

Kawasaki 16038-024

Gasket

$1.99

$

In Stock, Qty 9

0

33

Kawasaki 13183-2252

Plate

$3.99

$

In Stock, only 4 left!

0

34

Kawasaki 92009-2244

Screw

$1.99

$

In Stock, only 1 left!

0
