30112 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 006000001 - 006999999) (1986) CRANKCASE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

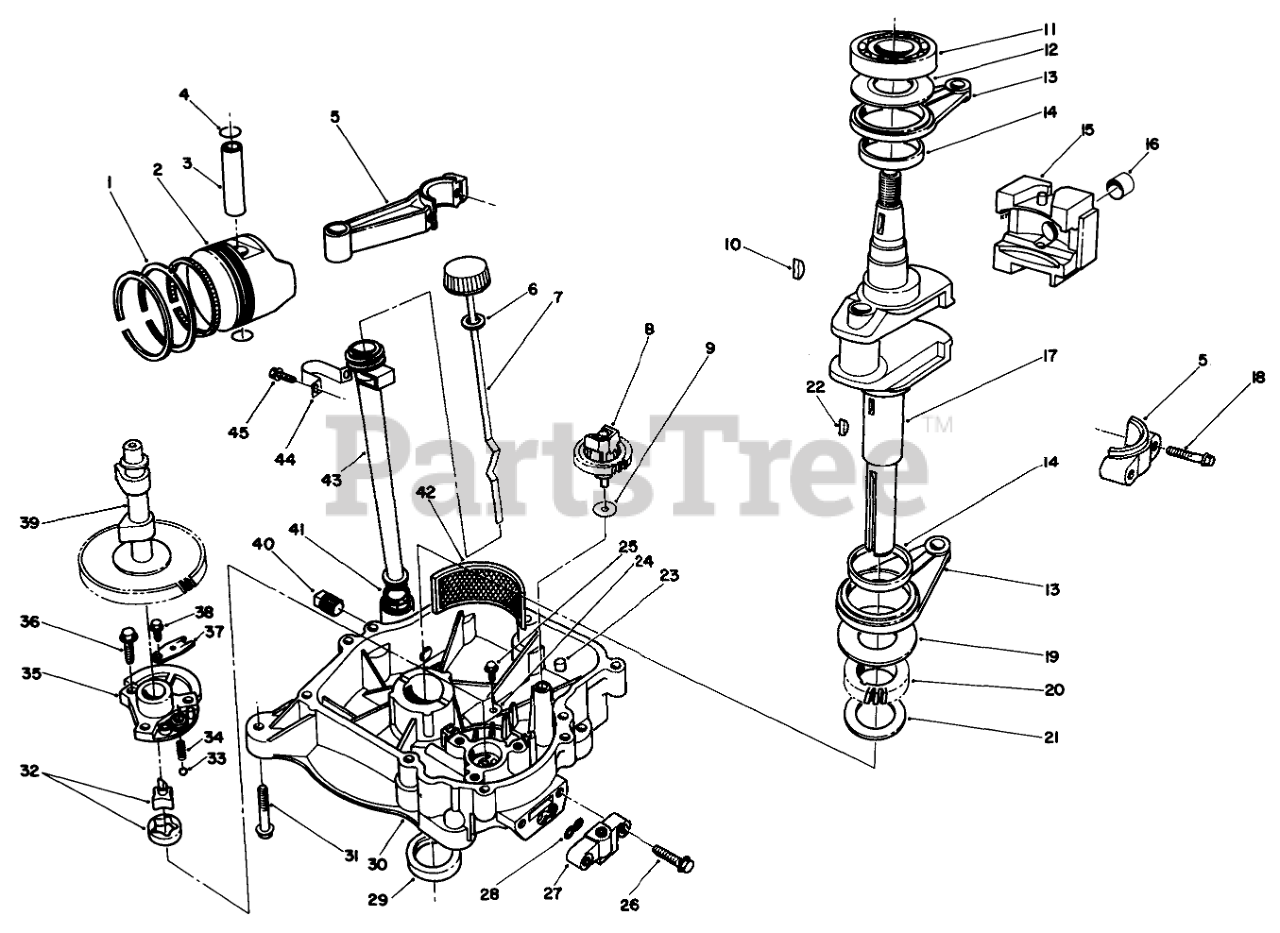

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Kawasaki 13008-6001

Piston Ring Set

$60.99

$

Usually ships in 2-5 days

0

Kawasaki 13008-6002

Set-Ring Piston 0.25

Note: Not Illustrated.

$

$

Not available

Toro 13008-6003

Set-Ring Piston 0.50

Note: Not Illustrated.

$

$

Currently unavailable

Kawasaki 13008-6004

Piston Rin Set (.75MM)

Note: Not Illustrated.

$

$

Not available

2

Kawasaki 13001-2084

Piston

$

$

Not available

Toro 13029-2019

Piston 0.25

Note: Not Illustrated.

$

$

Currently unavailable

Toro 13029-2020

Piston 0.50

Note: Not Illustrated.

$

$

Currently unavailable

Kawasaki 13027-2001

Piston (.75MM)

Note: Not Illustrated.

$57.99

$

Usually ships in 2-5 days

0

3

Toro 13002-2066

Pin-Piston

$

$

Currently unavailable

4

Toro 92033-2066

Ring-Snap

$

$

Currently unavailable

5

Kawasaki 13251-6005

Rod ASM Incl #10 11
(Superseded to 13251-6001)

$89.99

$

In Stock, only 1 left!

0

Kawasaki 13251-6007

Rod ASM Incl #10 110.50
(Superseded to 13251-6002)

Note: Not Illustrated.

$97.99

$

Usually ships in 2-5 days

0

6

Kawasaki 11009-2346

Gasket
(Superseded to M88482)

$2.49

$

In Stock, Qty 6

0

7

Kawasaki 52005-2058

Gauge

$

$

Not available

Kawasaki 49110-2067

Governor ASM
(Superseded to 49110-2084)

Note: Not Illustrated.

$

$

Not available

9

Toro 314401-5135A

Washer

$

$

Currently unavailable

10

Kawasaki 510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 20+

0

11

Kawasaki 601A6207

Ball Bearing

$21.99

$

In Stock, only 1 left!

0

12

Toro 92026-2150

Spacer

$

$

Currently unavailable

13

Kawasaki 46102-6001

Rod Assembly
(Superseded to 46102-6007)

$

$

Not available

14

Kawasaki 92141-2088

Bushing
(Superseded to 92141-2108)

$

$

Not available

15

Kawasaki 13042-6001

Weight
(Superseded to 13042-6006)

$179.99

$

Usually ships in 2-5 days

0

16

Toro 92141-2007

Bushing

$

$

Currently unavailable

17

Toro 49119-2106

Crankshaft

$

$

Currently unavailable

18

Toro 315801-3245A

Bolt

$

$

Currently unavailable

19

Toro 92026-2156

Spacer

$

$

Currently unavailable

20

Kawasaki 59056-2018

Gear
(Superseded to 59056-2105)

$46.99

$

Usually ships in 2-5 days

0

21

Kawasaki 92025-2145

Shim (1.18)

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2146

Shim (1.25)

Note: Not Illustrated.

$6.49

$

Usually ships in 2-5 days

0

Kawasaki 92025-2147

Shim (1.32)

Note: Not Illustrated.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2148

Shim (1.39)

Note: Not Illustrated.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2149

Shim (1.46)

Note: Not Illustrated.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2150

Shim (1.53)

Note: Not Illustrated.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2151

Shim (1.60)

Note: Not Illustrated.

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2152

Shim (1.67)

Note: Not Illustrated.

$3.99

$

In Stock, only 1 left!

0

Kawasaki 92025-2153

Shim (1.74)

Note: Not Illustrated.

$5.99

$

Usually ships in 2-5 days

0

22

Kawasaki 510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 20+

0

23

Toro 551A0814

Pin-Dowel

$

$

Currently unavailable

24

Kawasaki 13169-2359

Plate

$

$

Not available

25

Kawasaki 130B0508

Bolt
(Superseded to 130AA0508)

$0.99

$

In Stock, Qty 8

0

26

Kawasaki 130B0830

Bolt
(Superseded to 130AA0830)

$0.99

$

In Stock, only 1 left!

0

27

Kawasaki 14025-2145

Cover

$13.99

$

Usually ships in 2-5 days

0

28

Kawasaki 92055-2063

Seal

$4.49

$

In Stock, Qty 10

0

29

Kawasaki 92049-2095

Seal-Oil
(Superseded to 92049-2104)

$

$

Not available

30

Toro 49015-6001

Gasket

$

$

Currently unavailable

31

Toro 130G0825

Bolt-Flanged (8X25)

$

$

Currently unavailable

32

Toro 16082-2057

Pump ASM-Oil

$

$

Currently unavailable

33

Kawasaki 600A1000

Ball

$0.99

$

In Stock, Qty 7

0

34

Kawasaki 92081-2216

Spring

$0.99

$

Usually ships in 2-5 days

0

35

Toro 16142-6001

Cover-Pump

$

$

Currently unavailable

36

Toro 130G0825

Bolt-Flanged (8X25)

$

$

Currently unavailable

37

Kawasaki 13169-2360

Plate
(Superseded to 13270-2054)

$0.99

$

Usually ships in 2-5 days

0

38

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

39

Toro 120442109

Camshaft

$

$

Currently unavailable

40

Drain Plug

$

$

Not available

41

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0

42

Kawasaki 49065-2056

Filter-Oil

$

$

Not available

43

Kawasaki 59231-2059

Filler

$

$

Not available

44

Toro 92037-2160-9H

Clamp

$

$

Currently unavailable

45

Toro 233B0508

Screw

$

$

Currently unavailable
