30112 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 000000001 - 000999999) (1990) GOVERNOR ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

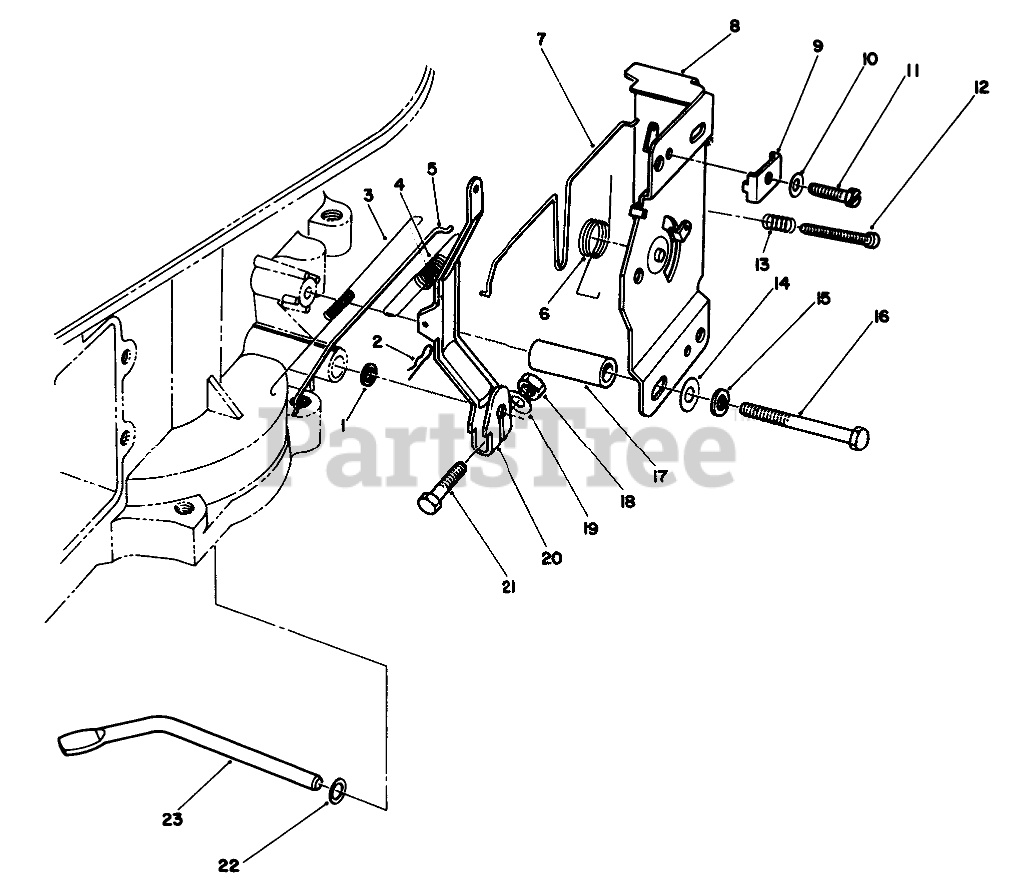

GOVERNOR ASSEMBLY Parts Diagram

  • Title

1

Kawasaki 92049-2097

SEAL-OIL (VC6X10X2.6)

$2.49

$

In Stock, Qty 20+

0

2

Kawasaki 554A0600

Pin-Snap (1.2 X 21.2)
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0

3

Toro 92081-2213

Spring

$

$

Currently unavailable

4

Toro 39129-2010

Spring

$

$

Currently unavailable

5

Kawasaki 16171-2001

Link
(Superseded to 16171-2083)

$

$

Not available

6

Toro 920981-2316

Spring

$

$

Currently unavailable

7

Kawasaki 16169-2074

LINK-Choke
(Superseded to 16169-2126)

$

$

Not available

8

Kawasaki 49113-2067

Panel Incl #2 4-7
(Superseded to 49113-2060)

$

$

Not available

9

Kawasaki 92037-2020

Clamp

$1.99

$

Usually ships in 2-5 days

0

10

Toro 411B0500

Washer

$

$

Currently unavailable

11

Kawasaki 310701-1225A

Bolt
(Superseded to 92150-2182)

$0.99

$

In Stock, Qty 20+

0

12

Toro 214b0425

Screw

$

$

Currently unavailable

13

Toro 314401-5321B

Spring

$

$

Currently unavailable

14

Toro 311509-3595-00

Washer

$

$

Currently unavailable

15

Toro 461F0600

Washer

$

$

Currently unavailable

16

Kawasaki 112B0650

Bolt

$0.99

$

Usually ships in 2-5 days

0

17

Kawasaki 92027-2071

Collar

$2.49

$

Usually ships in 2-5 days

0

18

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

19

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

20

Kawasaki 21187-2052

Arm ASM
(Superseded to 21187-2001)

$

$

Not available

21

Kawasaki 92002-2269

Bolt (6X28)

$1.99

$

In Stock, Qty 6

0

22

Kawasaki 410B0600

Washer
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

23

Toro 39003-2062

Arm-Pivot

$

$

Currently unavailable
