30111 - Toro ProLine Walk-Behind Mower, Gear Drive, 11hp (SN: 006000001 - 006999999) (1986) 52" CUTTING DECK MODEL NO. 30152 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 11hp

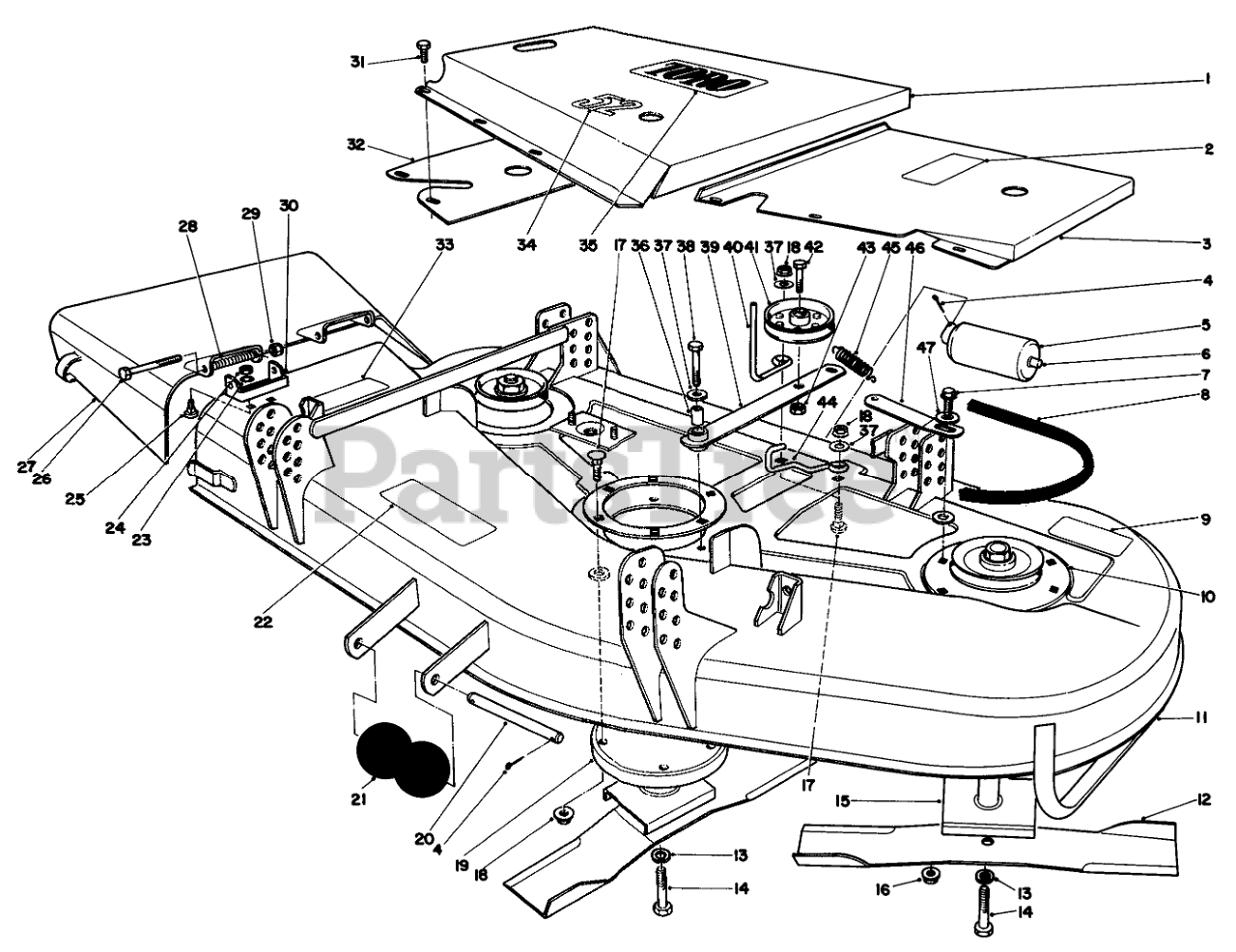

52" CUTTING DECK MODEL NO. 30152 Parts Diagram

  • Title

1

Toro 51-3930

CENTER COVER WA 52 R

$353.99

$

Usually ships in 3-6 days

0

2

Toro 42-6860

DECAL

$

$

Not available

3

Toro 51-3910

Cover
(Superseded to 51-3910-01)

$

$

Not available

4

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

5

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

6

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

7

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

8

Toro 27-1160

V-BELT

$63.99

$

In Stock, only 4 left!

0

9

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available

10

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

11

Toro 51-3850

Deck Assembly

$

$

Not available

12

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, Qty 8

0

13

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

14

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

15

Toro 27-0870

SPINDLE ASM

$548.99

$

Usually ships in 3-6 days

0

16

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

17

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 54-7781

HOUSING - SPINDLE ASM

$1053.99

$

Usually ships in 3-6 days

0

20

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

21

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

22

Toro 26-7960

Decal-Caution
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

25

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

26

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

27

Toro 40-6200

Deflector
(Superseded to 13-3949)

$

$

Not available

28

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

29

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

30

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

31

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

32

Toro 51-3890

Cover
(Superseded to 51-3890-01)

$

$

Not available

33

Toro 26-7980

DECAL-CAUTION, DEFLECTOR

$

$

Not available

34

Toro 51-3960

DECAL

$27.99

$

Usually ships in 3-6 days

0

35

Toro 43-5120

Decal-Toro
(Superseded to 62-7400)

$26.99

$

Usually ships in 3-6 days

0

36

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 3 left!

0

37

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

39

Toro 51-3610

ARM-IDLER, DECK

$

$

Not available

40

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 6

0

41

Toro 52-4580

Pulley
(Superseded to 99-5678)

$65.99

$

Usually ships in 3-6 days

0

42

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

43

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

44

Toro 52-4770

BELT GUIDE

$

$

Not available

45

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

46

Toro 51-3870

Plate-Spring Support
(Superseded to 55-7650)

$24.99

$

In Stock, Qty 9

0

47

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

Toro 44-5480

BLADE-HIGH SAIL

Note: Not Illustrated.

$25.99

$

Usually ships in 3-6 days

0
