30111 - Toro ProLine Walk-Behind Mower, Gear Drive, 11hp (SN: 006000001 - 006999999) (1986) 36" CUTTING DECK MODEL NO. 30136 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 11hp

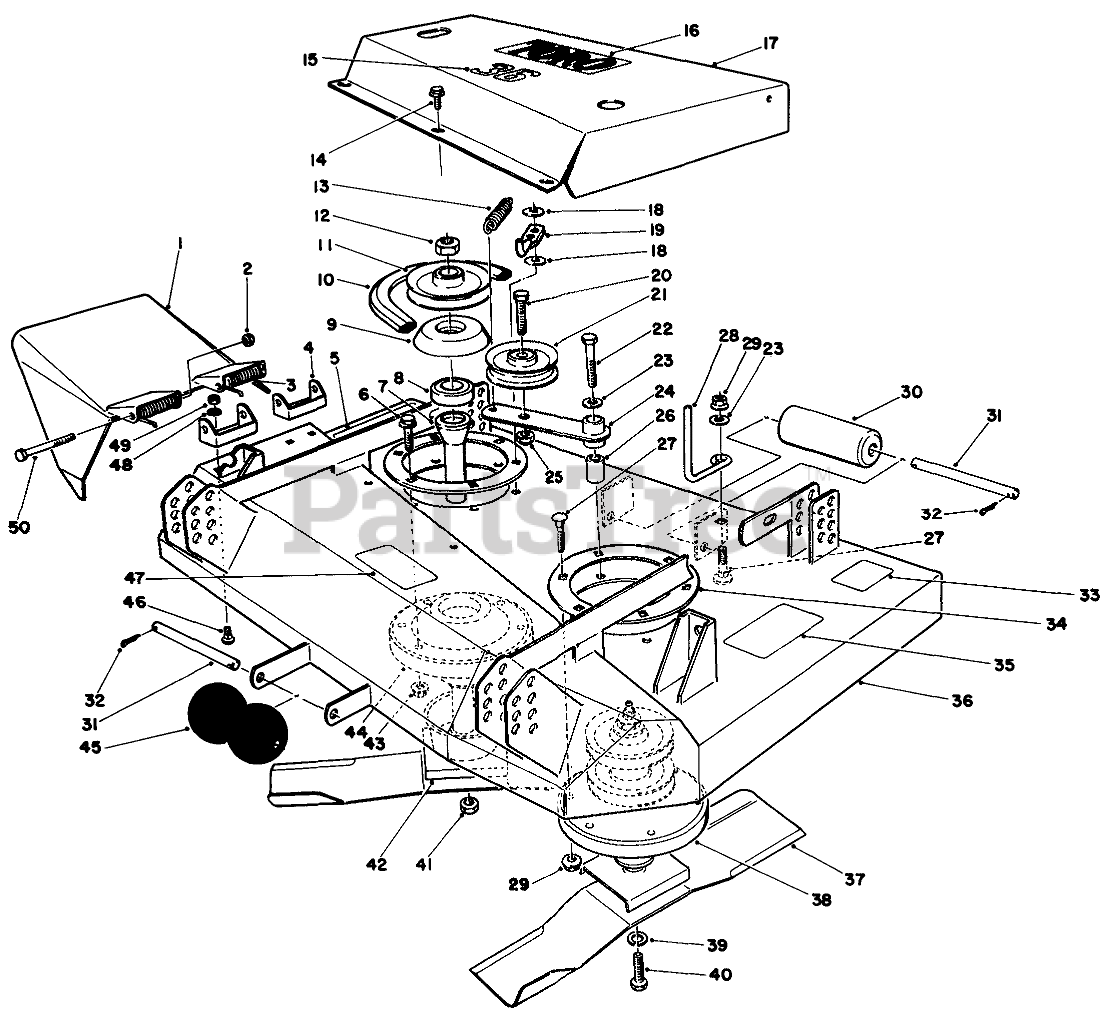

36" CUTTING DECK MODEL NO. 30136 Parts Diagram

  • Title

1

Toro 51-3670

Deflector-Grass
(Superseded to 13-3879)

$

$

Not available

2

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

3

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

4

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

5

Toro 26-7980

DECAL-CAUTION, DEFLECTOR

$

$

Not available

6

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

7

Toro 40-6320

SPACER-GREASE SHIELD

$32.61

$

In Stock, only 2 left!

0

8

Toro 40-6340

BEARING

$117.99

$

In Stock, only 2 left!

0

9

Toro 39-7690

COVER-DUST

$

$

Not available

10

Toro 51-3530

V-BELT-DRIVE, DECK

$37.99

$

In Stock, Qty 6

0

11

Toro 51-3520

PULLEY and HUB ASM

$

$

Not available

12

Toro 32146-19

Locknut
(Superseded to 3296-41)

$6.49

$

In Stock, Qty 9

0

13

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

14

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

15

Toro 51-3730

Decal-36 Inch

$

$

Not available

16

Toro 43-5120

Decal-Toro
(Superseded to 62-7400)

$26.99

$

Usually ships in 3-6 days

0

17

Toro 51-3690

COVER-DECK

$

$

Not available

18

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 57-3880

ROD-SPRING

$

$

Not available

20

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

21

Toro 51-3660

PULLEY-IDLER

$39.99

$

In Stock, Qty 5

0

22

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 51-3610

ARM-IDLER, DECK

$

$

Not available

25

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

26

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 3 left!

0

27

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

28

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 6

0

29

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

31

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

32

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

33

Toro 42-6860

DECAL

$

$

Not available

34

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

35

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available

36

Toro 51-3310

Deck
(Superseded to 99-5873)

$

$

Not available

37

Toro 40-3760

Blade
(Superseded to 40-3760-03)

$31.99

$

Usually ships in 3-6 days

0

38

Toro 54-7780

SPINDLE ASM

$

$

Not available

39

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

40

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

41

Toro 32146-19

Locknut
(Superseded to 3296-41)

$6.49

$

In Stock, Qty 9

0

42

Toro 40-6310

SHAFT and SADDLE ASM

$

$

Not available

43

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

44

Toro 51-3510

Spindle ASM
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

45

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

46

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

47

Toro 26-7960

Decal-Caution
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

48

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

49

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

50

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

Toro 55-4210

BLADE-18 INCH

Note: Not Illustrated.

$

$

Not available
