30110 - Toro Tru Trak Sulky, ProLine Mid-Size Mowers (SN: 210000001 - 210999999) (2001) SULKY ASSEMBLY Parts Diagram

Tru Trak Sulky, ProLine Mid-Size Mowers

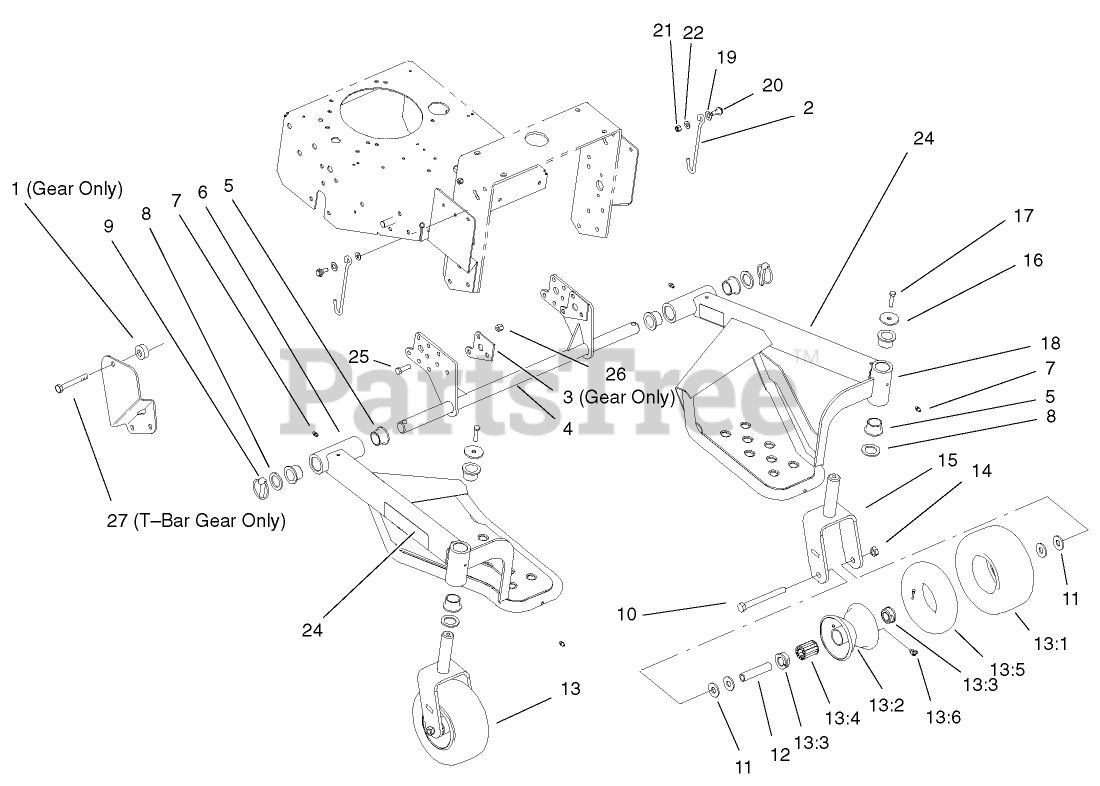

SULKY ASSEMBLY Parts Diagram

  • Title

5

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 10

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

9

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

10

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

11

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

13

Toro 99-1268

CASTOR WHEEL ASM

$150.99

$

Usually ships in 3-6 days

0

13:1

Toro 93-9939

TIRE

$47.99

$

Usually ships in 3-6 days

0

13:2

Toro 100-2348

RIM ASM

$59.99

$

Usually ships in 3-6 days

0

13:3

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

13:4

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

13:5

Toro 100-5832

TUBE

$15.99

$

Usually ships in 3-6 days

0

13:6

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

14

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

16

Toro 63-7400

WASHER-REBOUND

$2.99

$

In Stock, Qty 5

0

17

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3290-478

WASHER-BELLEVILLE

$1.99

$

Usually ships in 3-6 days

0

20

Toro 94-7817

BOLT-SHOULDER

$16.99

$

Usually ships in 3-6 days

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 80-4980

WASHER-THRUST

$27.99

$

Usually ships in 3-6 days

0

25

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

27

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0
