30106 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

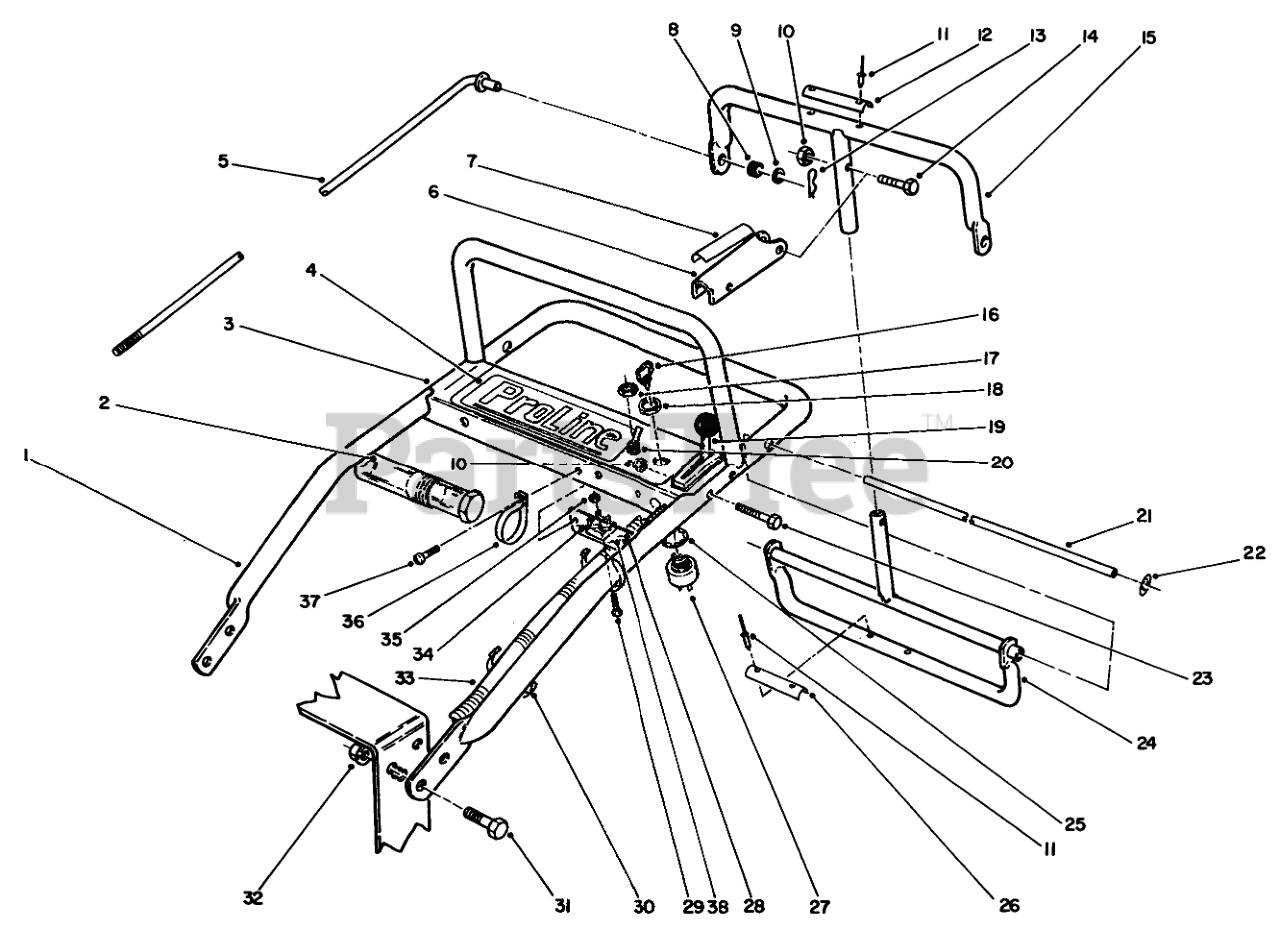

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 67-6440

Handle-Upper
(Superseded to 67-6440-03)

$

$

Not available

2

Toro 74-0720

TUBE-MANUAL

$25.99

$

Usually ships in 3-6 days

0

3

Toro 74-0790

CONTROL PANEL B

$

$

Not available

4

Toro 74-0880

DECAL - CONTROL PANEL

$

$

Not available

5

Toro 54-3071

CONTROL ROD B

$

$

Not available

6

Toro 51-4850

Lever-Parking Brake
(Superseded to 51-4850-03)

$41.99

$

In Stock, only 1 left!

0

7

Toro 52-2010

DECAL-LEVER, PARKING

$6.49

$

Usually ships in 3-6 days

0

8

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

12

Toro 54-2740

DECAL-CONTROL BAR

$

$

Not available

13

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

14

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 7

0

15

Toro 51-4730

Bar-Control
(Superseded to 51-4730-03)

$

$

Not available

16

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

17

Toro 218-500

NUT
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 7

0

19

Toro 74-0740

CONTROL-THROTTLE

$113.99

$

Usually ships in 3-6 days

0

20

Toro 37-2610

Switch
(Superseded to 92-6328)

$

$

Not available

21

Toro 74-0470

PIVOT ROD

$55.99

$

Usually ships in 3-6 days

0

22

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.99

$

In Stock, Qty 7

0

23

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

24

Toro 74-0380

Control Pivot
(Superseded to 74-0380-03)

$

$

Not available

25

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 18

0

26

Toro 52-2120

DECAL-REVERSE HANDLE

$

$

Not available

27

Toro 23-0660

Switch-Ignition (Incl. Ref. #16, 18 & 25)

$25.99

$

In Stock, Qty 5

0

28

Toro 57-5810

PANEL-BOTTOM

$

$

Not available

29

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

30

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

31

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

32

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

33

Toro 74-0970

Wire Harness

$

$

Not available

34

Toro 37-7600

RECTIFIER-BRIDGE

$28.99

$

Usually ships in 3-6 days

0

35

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

37

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

38

Toro 63-7590

RELAY

$88.99

$

Usually ships in 3-6 days

0
