30103 - Toro ProLine Walk-Behind Mower, Gear Drive, 12hp (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12hp

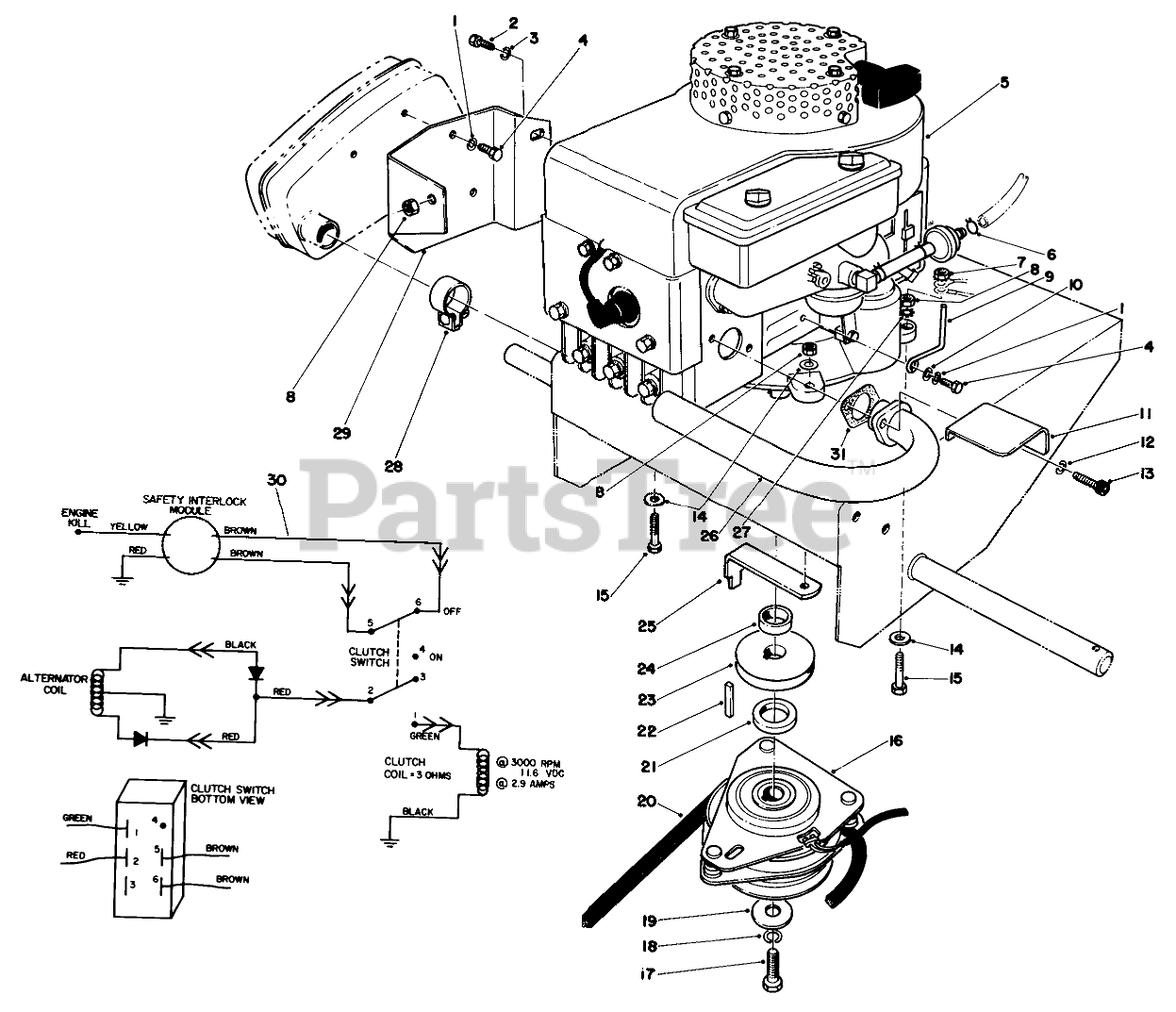

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 66-4930

Engine 12 H.P.

$

$

Currently unavailable

6

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

7

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

8

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

9

Toro 51-4390

BRUSH GUARD

$

$

Not available

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 51-4520

HEAT SHIELD

$

$

Not available

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3274-10

SCREW-HSH

$10.99

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

16

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

17

Toro 3212-24

SCREW-HH

$24.99

$

Usually ships in 3-6 days

0

18

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

19

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

20

Toro 54-2750

V-BELT, DRIVE

$59.99

$

In Stock, only 2 left!

0

21

Toro 51-3280

SPACER-LOWER

$

$

Not available

22

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

23

Toro 51-4460

Pulley-Drive
(Superseded to 100-3251)

$

$

Not available

24

Toro 51-3290

Spacer-Upper

$

$

Not available

25

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 3 left!

0

26

Toro 51-4500

EXHAUST PIPE WA

$

$

Not available

27

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

28

Toro 23-7760

MUFFLER CLAMP

$

$

Not available

29

Toro 51-4530

MUFFLER BRKT B

$

$

Not available

30

Toro 54-3030

WIRE HARNESS

$

$

Not available

31

Toro 39-1810

Gasket

$

$

Not available
