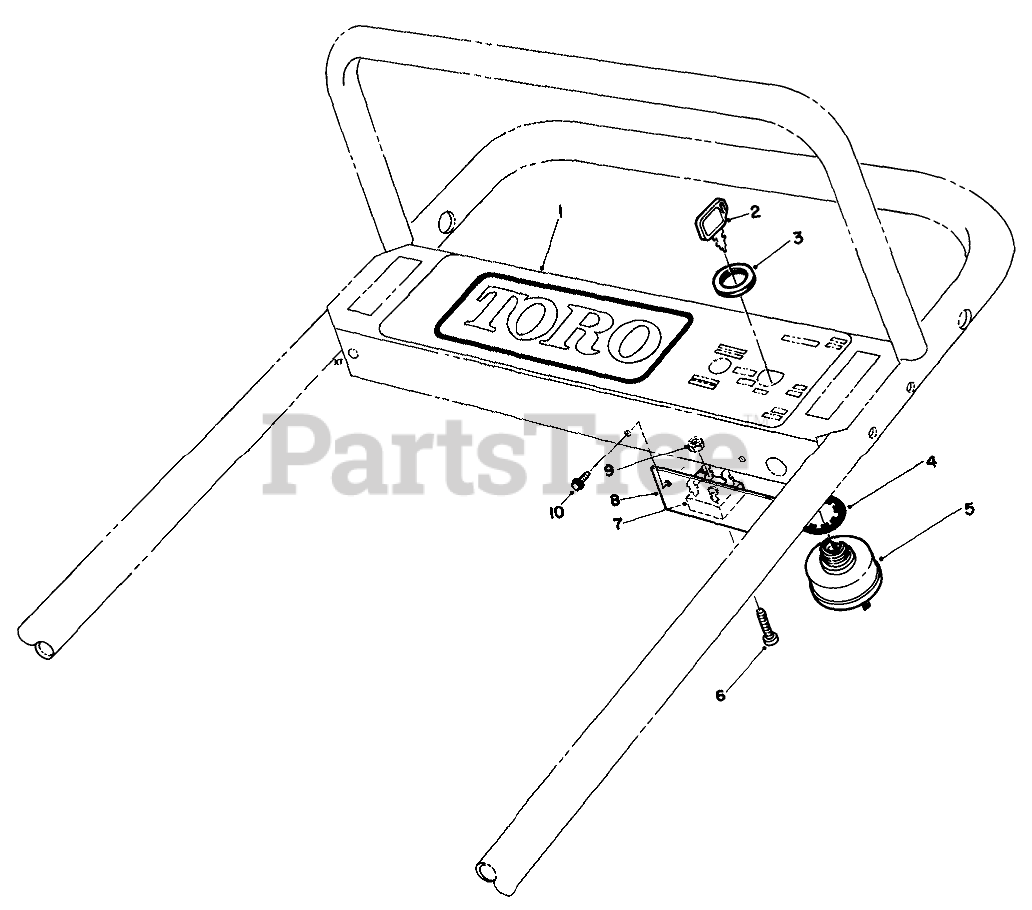

30103 - Toro ProLine Walk-Behind Mower, Gear Drive, 12hp (SN: 008000001 - 008999999) (1988) ELECTRIC START KIT PART NO. 66-6130 (OPTIONAL) Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12hp

ELECTRIC START KIT PART NO. 66-6130 (OPTIONAL) Parts Diagram

  • Title
1

Toro 54-2790

Decal-Electric Start Panel

$

$

Not available

2

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 2 left!

0

3

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

4

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

5

Toro 23-0660

Ignition Switch (Incl. Ref. #2-4)

$22.99

$

In Stock, only 1 left!

0

6

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

7

Toro 37-7600

RECTIFIER-BRIDGE

$25.99

$

In Stock, only 1 left!

0

8

Toro 57-5810

PANEL-BOTTOM

$

$

Not available

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
