30103 - Toro ProLine Walk-Behind Mower, Gear Drive, 12hp (SN: 008000001 - 008999999) (1988) BRIGGS & STRATTON MODEL NO. 281706-0180-01 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12hp

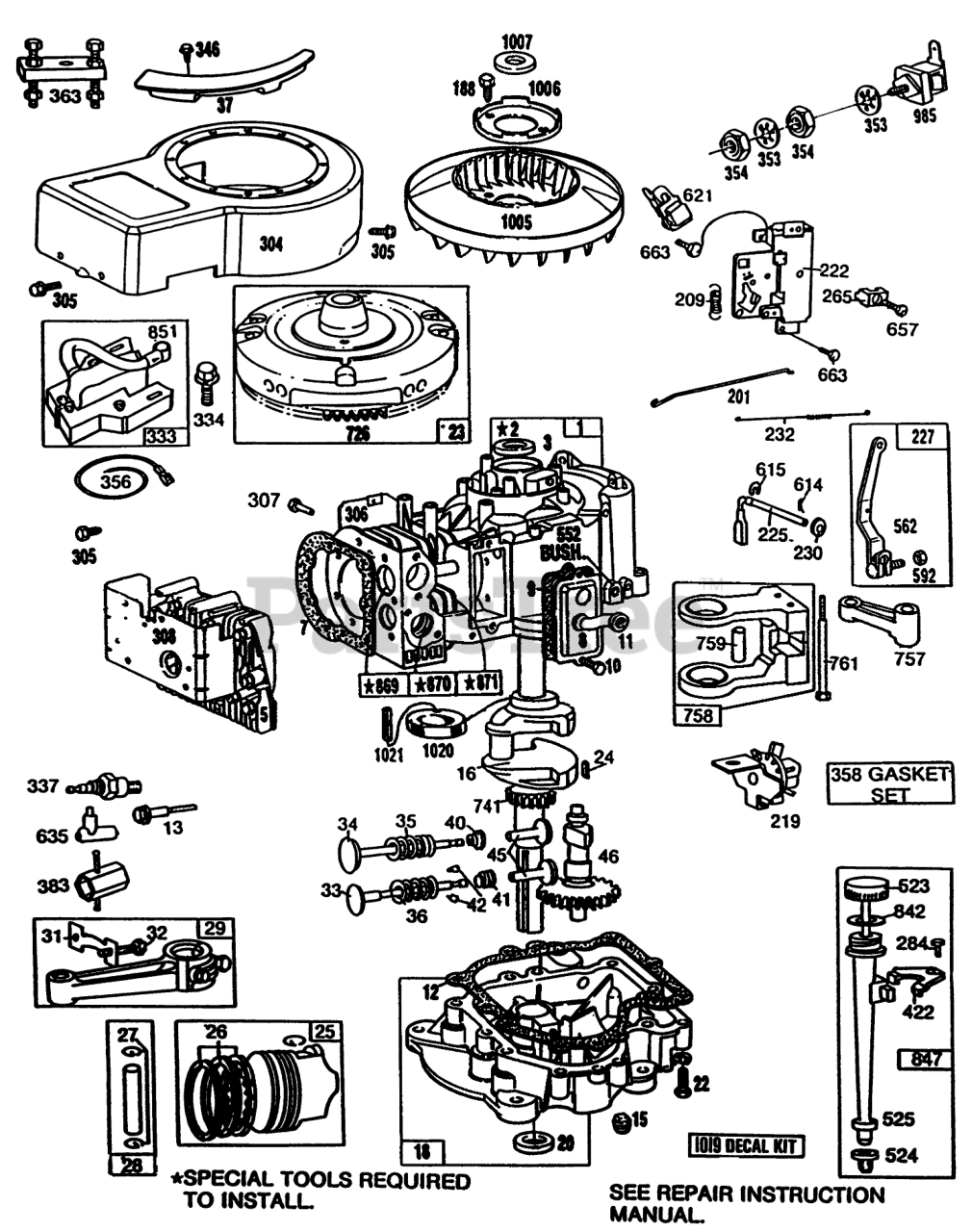

BRIGGS & STRATTON MODEL NO. 281706-0180-01 Parts Diagram

  • Title

1

Briggs & Stratton 490450

Cylinder Assembly
(Superseded to 496413)

$344.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 491491

Head-Cylinder
(Superseded to 494240)

$110.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

$9.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 391406

Assembly-Breather
(Superseded to 495735)

$63.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280100

Tube-Breather
(Superseded to 692253)

$9.99

$

In Stock, Qty 13

0

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

$6.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

$6.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

$9.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93723

Screw-Cylinder Head
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 490466

Crankshaft
(Superseded to 693653)

$246.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 490452

Base-Engine
(Superseded to 494238)

$

$

Not available

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94305

Screw-Base Mounting
(Superseded to 692125)

$4.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 399917

Flywheel/Ring Gear Ass-y
(Superseded to 693557)

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 394661

Piston Assy-Std.
(Superseded to 499284)

$

$

Not available

25

Briggs & Stratton 394662

Piston Assy-.010" O.S.

$

$

Not available

25

Briggs & Stratton 394663

Piston Assy-.020" O.S.
(Superseded to 499292)

$

$

Not available

25

Briggs & Stratton 394664

Piston Assy-.030" O.S.
(Superseded to 499296)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 394665

Ring-Piston (Std.)
(Superseded to 499996)

$53.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 391781

Ring Set (.010 O.S.)

$

$

Not available

26

Briggs & Stratton 391782

Ring Set (.020 O.S.)
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391783

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston (Std.)

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston (.005" OS.)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490348

Rod-Connecting

$50.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222299

Lock-Screw

$

$

Not available

32

Briggs & Stratton 92909

Screw-Conn. Rod
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 262246

Valve-Exhaust
(Superseded to 262246S)

$

$

Not available

34

Briggs & Stratton 262247

Valve-Intake
(Superseded to 262247S)

$

$

Not available

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

37

Briggs & Stratton 223752

Guard-Flywheel
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 262248

Tappet
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212897

Gear-Cam
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

201

Briggs & Stratton 262348

Link-Governor

$9.49

$

In Stock, only 4 left!

0

209

Briggs & Stratton 261126

Spring-Gov.
(Superseded to 796261)

$6.49

$

In Stock, only 4 left!

0

219

Briggs & Stratton 490815

Gear-Governor
(Superseded to 691968)

$37.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 491594

Plate-Gov. Control

$

$

Not available

224

Briggs & Stratton 94018

Screw
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

225

Briggs & Stratton 231058

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 490927

Lever Assy-Governor

$16.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 260584

Spring-Governor Link
(Superseded to 692207)

$6.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

284

Briggs & Stratton 93804

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

304

Briggs & Stratton 490689

Housing-Blower

$97.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306

Briggs & Stratton 223715

Shield-Cylinder
(Superseded to 698477)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 491490

Cover-Cylinder Head
(Superseded to 698476)

$49.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 398811

Armature Group

$63.99

$

In Stock, Qty 19

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 398808

Wire Stop

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 490525

Gasket Set
(Superseded to 494241)

$39.99

$

In Stock, Qty 8

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

422

Briggs & Stratton 223721

Clamp-Oil Filler Tub
(Superseded to 224390)

$

$

Not available

523

Briggs & Stratton 490327

Dipstick
(Superseded to 692014)

$25.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 68838

Seal-Fill Tube
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280741

Tube-Oil Filler
(Superseded to 495768)

$29.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 231055

Bushing-Gov. Crank
(Superseded to 491986)

$

$

Not available

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 7

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

726

Briggs & Stratton 392134

Gear-Ring (Includes Mounting Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262135

Gear-Timing
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 212359

Link-Counterweight
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 399891

Counterweight
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 2 left!

0

761

Briggs & Stratton 93875

Screw
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 490474

Cam-Dog

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 261463

Seat-Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 210940

Seat-Exhaust Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

Manual-Owner's

$14.99

$

Usually ships in 2-12 days

0

985

Briggs & Stratton 398525

Insulator
(Superseded to 691972)

$8.49

$

In Stock, only 3 left!

0

1005

Briggs & Stratton 280687

Retainer
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 223726

Screw
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1007

Briggs & Stratton 231531

Spacer-Clutch

$10.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491255

Decal Kit

$25.99

$

Usually ships in 2-12 days

0

1020

Briggs & Stratton 262243

Eccentric

$36.99

$

Usually ships in 2-12 days

0

1021

Briggs & Stratton 94160

Pin-Ecentric
(Superseded to 691679)

$4.49

$

Usually ships in 2-12 days

0
