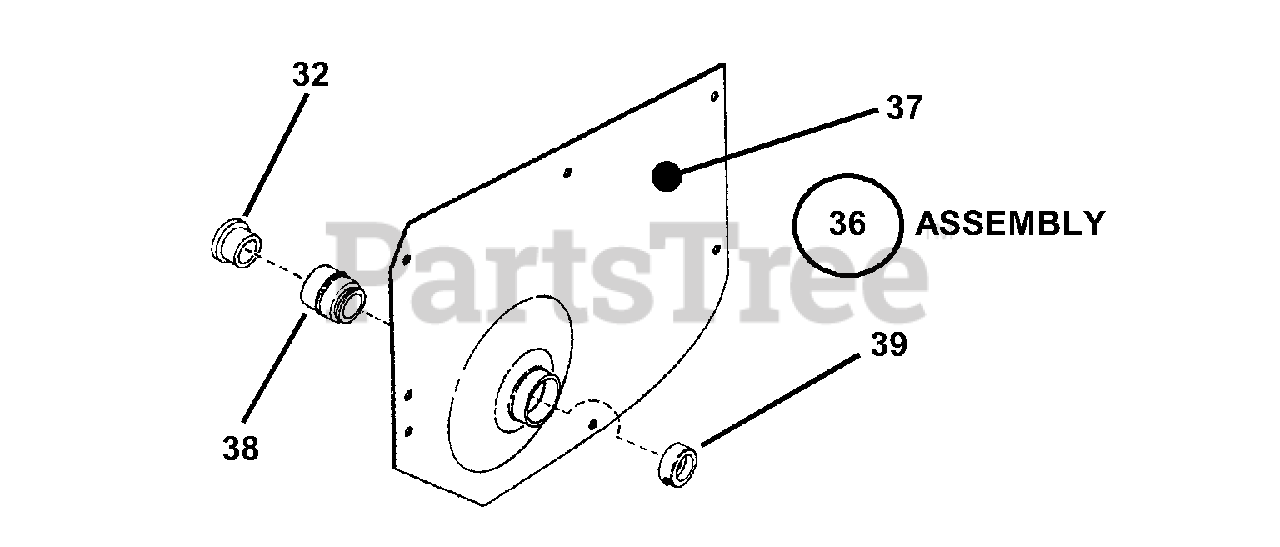

301022BE (84701) - Snapper 30" Rear-Engine Riding Mower, 10hp Chain Case, L.H. Fender (Part 2) Parts Diagram

30" Rear-Engine Riding Mower, 10hp

Chain Case, L.H. Fender (Part 2) Parts Diagram

  • Title

32

Snapper 7023447

SPACER
(Superseded to 7023447YP)

Note: (Used with optional ball bearing, item 38 only)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 7051451

ASS'Y, L. H. Fender & Ball Bearing

Note: (Optional, incl. items 37-39)

$

$

Not available

37

Snapper 7037958

FENDER, Left Hand (1.744" I.D. hole)

$

$

Not available

38

Snapper 7014624

BALL BEARING, Left Hand Fender
(Superseded to 7014624YP)

$

$

Not available

39

Snapper 7014625

COLLAR, Lock
(Superseded to 7014625YP)

Note: (Includes #9-0776 Setscrew 1/4-20 x 1/4")

$11.99

$

In Stock, Qty 11

0
