30102 - Toro ProLine Walk-Behind Mower, Gear Drive, 12hp (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12hp

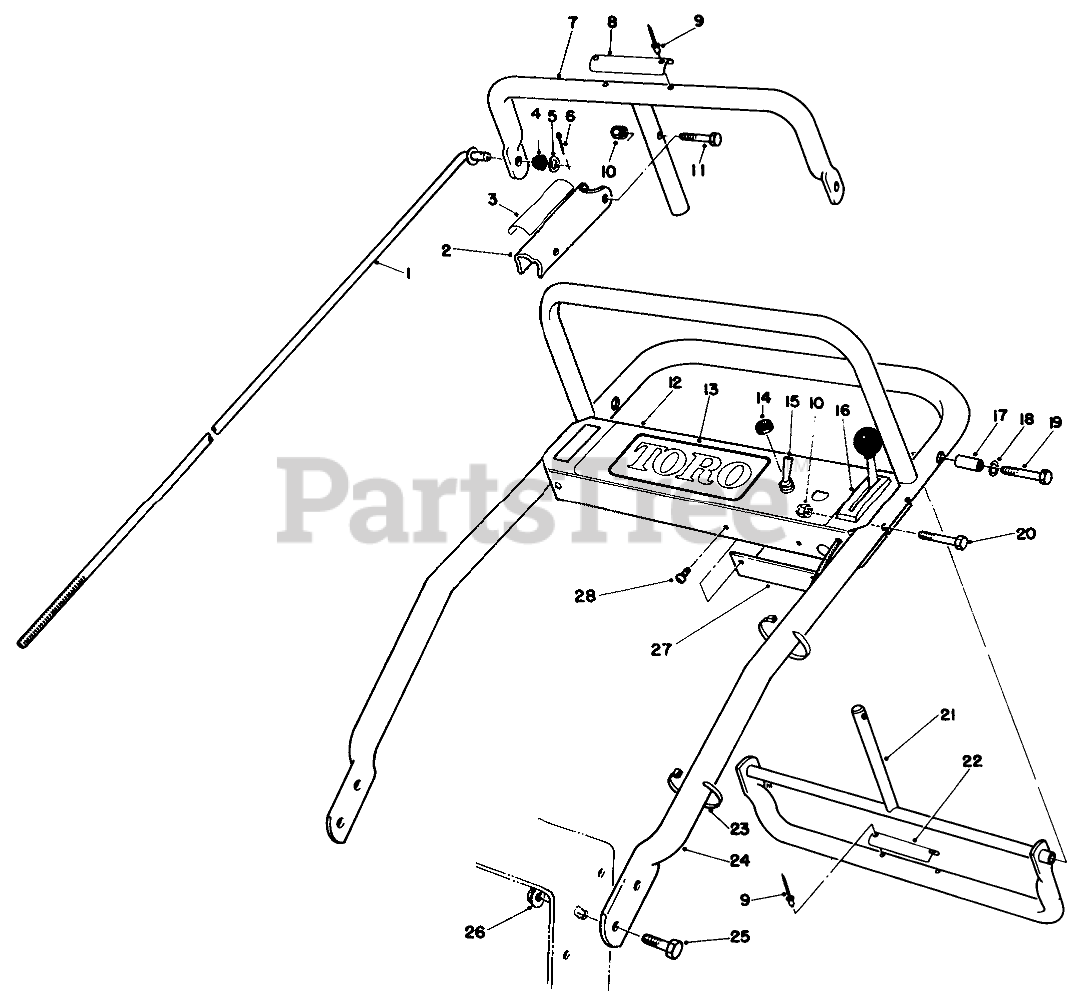

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-3071

CONTROL ROD B

$

$

Not available

2

Toro 51-4850

Lever-Parking Brake
(Superseded to 51-4850-03)

$38.99

$

In Stock, only 1 left!

0

3

Toro 52-2010

DECAL-LEVER, PARKING

$5.99

$

Usually ships in 3-6 days

0

4

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

7

Toro 514730

Control Bar

$

$

Currently unavailable

8

Toro 54-2740

DECAL-CONTROL BAR

$

$

Not available

9

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

12

Toro 54-2860

Panel-Control
(Superseded to 74-0790)

$

$

Not available

13

Toro 54-2770

PANEL DECAL

$

$

Not available

14

Toro 218-500

NUT
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 37-2610

Switch
(Superseded to 92-6328)

$

$

Not available

16

Toro 51-4821

Control-Throttle
(Superseded to 74-0740)

$107.99

$

Usually ships in 3-6 days

0

17

Toro 51-4790

PIVOT-SPACER

$

$

Not available

18

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

19

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

21

Toro 51-4760

Control-Pivot
(Superseded to 106-5477-03)

$202.99

$

Usually ships in 3-6 days

0

22

Toro 52-2120

DECAL-REVERSE HANDLE

$

$

Not available

23

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

24

Toro 67-6440

Handle-Upper
(Superseded to 67-6440-03)

$

$

Not available

25

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 57-5810

PANEL-BOTTOM

$

$

Not available

28

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
