3010 XP (31CH5EP9B66) - Troy-Bilt Vortex 30" Snow Thrower (2022) Auger Housing Parts Diagram

Vortex 30" Snow Thrower

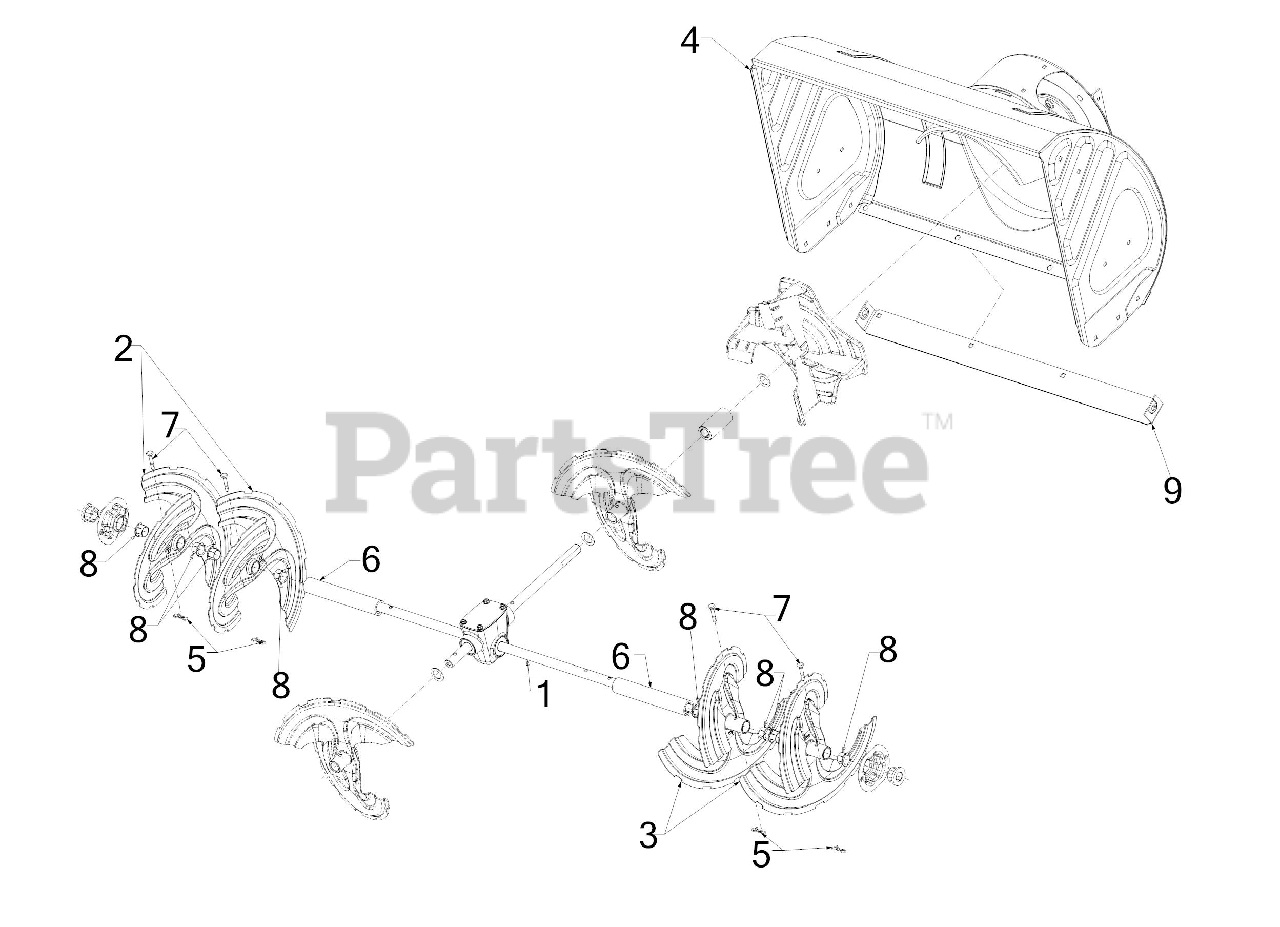

Auger Housing Parts Diagram

  • Title

1

Troy-Bilt 918-06061

30" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$403.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-05020-4033

SPIRAL ASSEMBLY (RH)

$80.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 684-05021-4033

SPIRAL ASSEMBLY (LH)
(Superseded to 684-05021-0637)

$89.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-05220-4033

30" AUGER HOUSING
(Superseded to 684-05220A-4033)

$305.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-09557

SPACER

$9.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 790-00119-4033

30" SHAVE PLATE
(Superseded to 790-00119-0637)

$39.99

$

In Stock, Qty 12

0
