3010 XP (31AH8DR5B66) - Troy-Bilt Arctic Storm 30" Snow Thrower (2023) Panel Parts Diagram

Arctic Storm 30" Snow Thrower

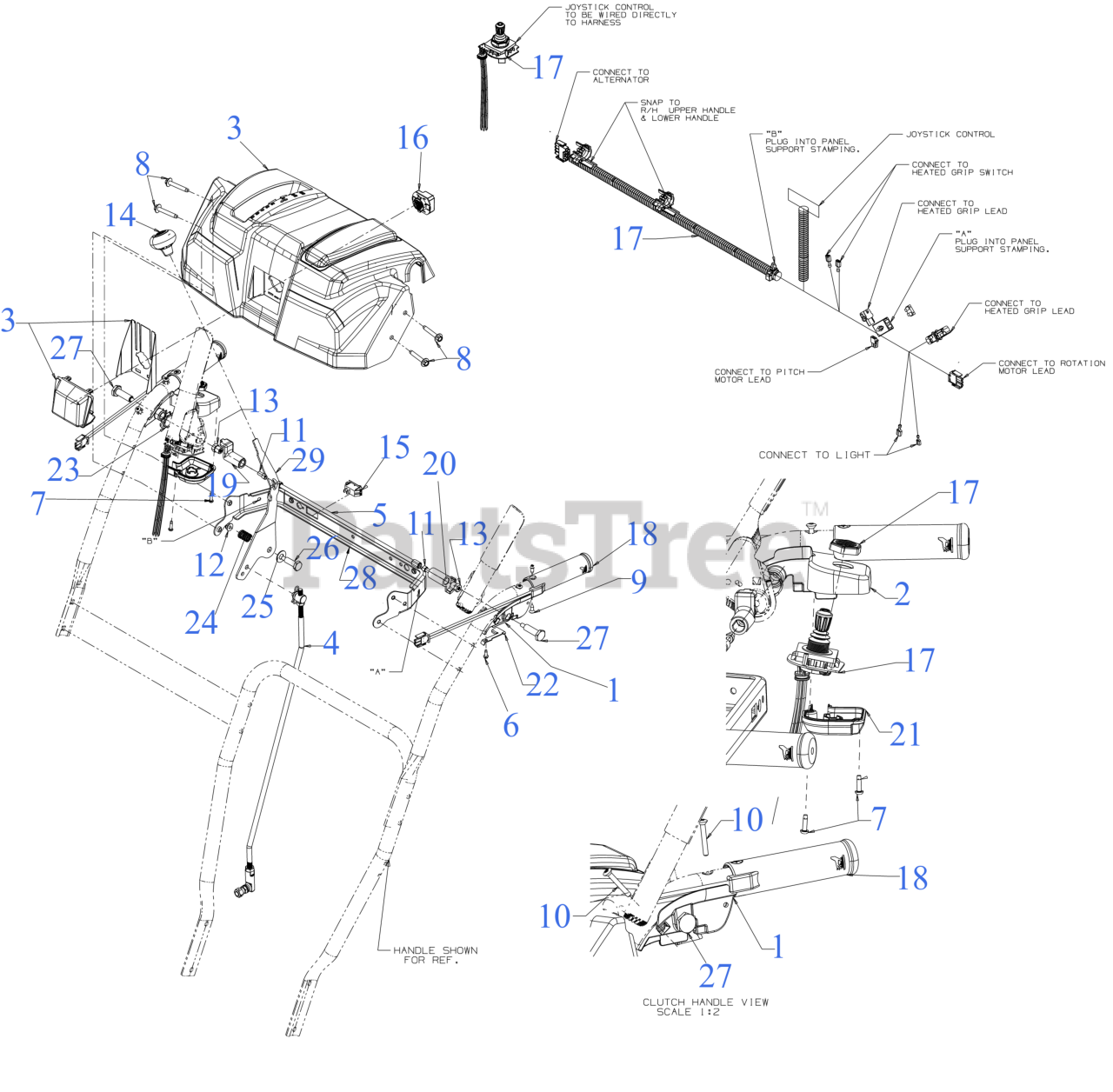

Panel Parts Diagram

  • Title
1

Troy-Bilt 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 8

0

1

Troy-Bilt 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 931-04653

CLUTCH HANDLE ASSEMBLY (RH)

$12.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 931-05001

HANDLE PANEL ASSEMBLY

$69.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 777X41805

LABEL:SNOW:2 STAGE

Note: (Not Shown)

$9.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 731-05319

LENS

Note: (Not Shown)

$13.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 947-05032

SHIFT ROD ASSEMBLY

Note: (See Separate Breakdown)

$39.99

$

Usually ships in 3-6 days

0

5

$12.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-04329

SCREW .159 x .610

$4.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-08934

SCREW-AB #12-24 x .625

$2.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

11

Troy-Bilt 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

12

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 725-04393

HEATED GRIP SWITCH

$16.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 925-06095A

LED HEADLIGHT & SOCKET (150 LUMNES)

$52.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 925-06838

4-WAY ELEC/HEAT GRIP HARNESS

$193.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 725P12285

HEATED GRIP

$58.99

$

In Stock, only 3 left!

0

19

$5.49

$

In Stock, Qty 11

0

20

Troy-Bilt 731-04896C

CLUTCH LOCK CAM

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 731-11147

JOYSTICK HOUSING COVER

$6.49

$

In Stock, Qty 11

0

22

Troy-Bilt 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 11

0

24

Troy-Bilt 732-04756

COMPRESSION SPRING

$3.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 736-0267

FLAT WASHER .38X.88

Note: (11/1/22 & Before)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-05080

FLAT WASHER .401X.88

Note: (11/1/22 & After)

$3.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 790-00248E

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00248E-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 5

0

$24.99

$

In Stock, Qty 5

0

29

$27.99

$

In Stock, only 4 left!

0
