3010 XP (31AH8DR5B66) - Troy-Bilt Arctic Storm 30" Snow Thrower (2023) Chute Controls Parts Diagram

Arctic Storm 30" Snow Thrower

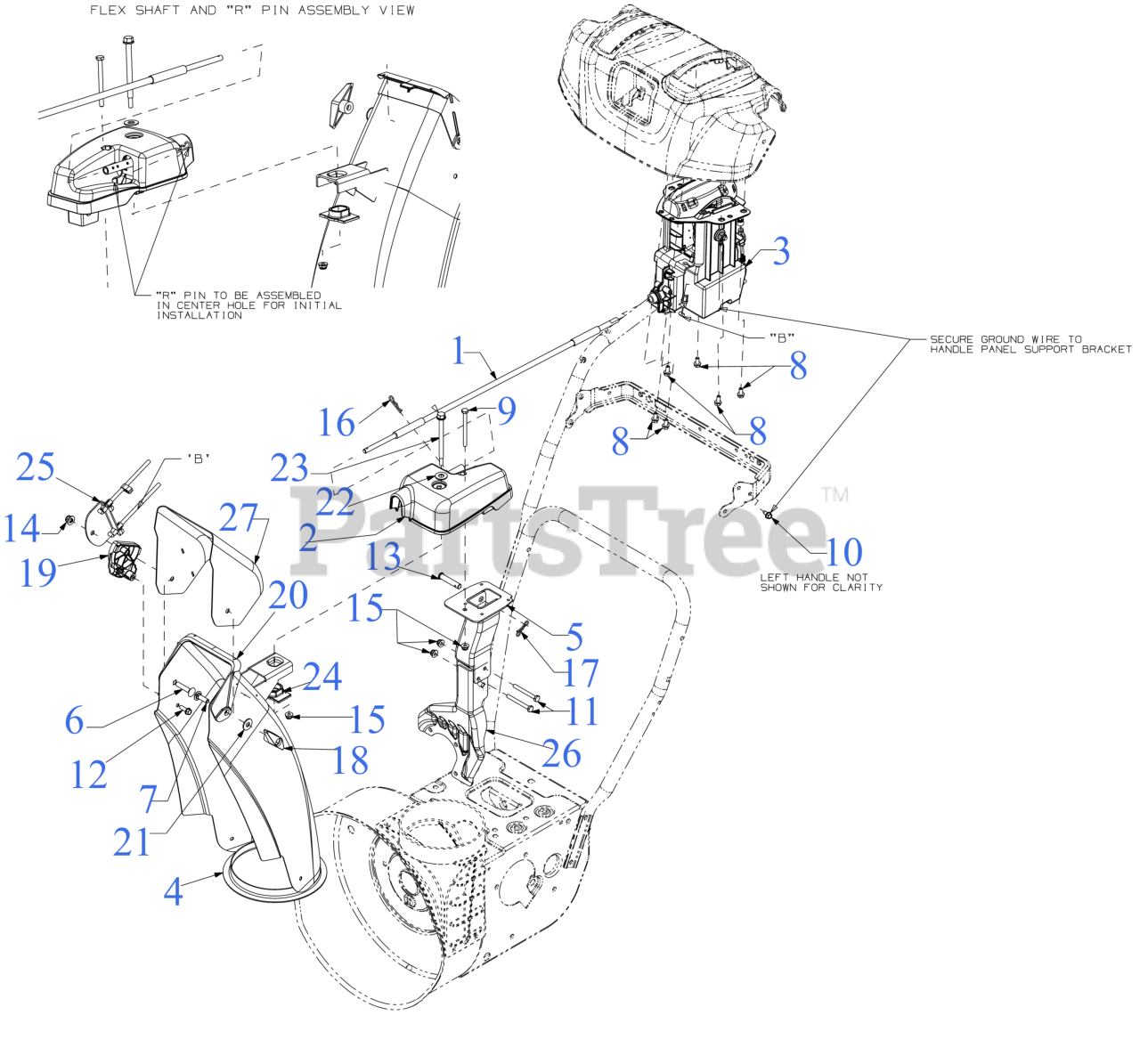

Chute Controls Parts Diagram

  • Title

1

Troy-Bilt 911-05146

ELECTRIC 4-WAY CHUTE CONTROL SHAFT

$178.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 618P09835A

CHUTE GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$64.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 984-05119

CHUTE CONTROL ASSEMBLY-4-WAY ELECTRIC

Note: (See Separate Breakdown)

$403.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-05182A

LOWER STEEL CHUTE 6" DIA

Note: *CHOOSE COLOR WHEN ORDERING*

$109.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 684-06718

EXTENSION CHUTE MAST

Note: *CHOOSE COLOR WHEN ORDERING*

$45.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 13

0

7

Troy-Bilt 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 17

0

8

Troy-Bilt 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 7

0

9

Troy-Bilt 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0641

SCREW 1/4-20 x 2.25 GR5

$4.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 11

0

13

Troy-Bilt 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, Qty 5

0

14

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 18

0

16

Troy-Bilt 714-0101

INTERNAL COTTER PIN

$4.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 920-0284

WING KNOB NUT
(Superseded to 720-0284)

$

$

Not available

18

Troy-Bilt 712-0429

HEX NUT

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 731-09535

CHUTE TILT GUIDE

$8.49

$

In Stock, Qty 8

0

20

Troy-Bilt 731-09539A

UPPER CHUTE ADAPTER

$25.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-0185

FLAT WASHER

Note: (11/1/22 & Before)

$3.99

$

In Stock, Qty 8

0

22

Troy-Bilt 736-0300

FLAT WASHER

Note: (11/1/22 & After)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 738-04367

SHOULDER SCREW

$4.99

$

In Stock, only 4 left!

0

24

Troy-Bilt 748-05057

HELICAL GEAR CHUTE ADAPTER

$11.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 790-00565A

CABLE BRACKET GUIDE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00565A-0637

CABLE BRACKET GUIDE (POWDER BLACK) - POWDER BLACK (0637)

$14.99

$

In Stock, only 2 left!

0

$12.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 790-00780A

CHUTE SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00780A-0637

BRACKET-CHUTE SUPP - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 790-03893

UPPER STEEL CHUTE (REMOTE TILT)

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0
