301 ZX (966681701) - Poulan Pro 30" Zero-Turn Mower (2010-09) IGNITION SYSTEM Parts Diagram

30" Zero-Turn Mower

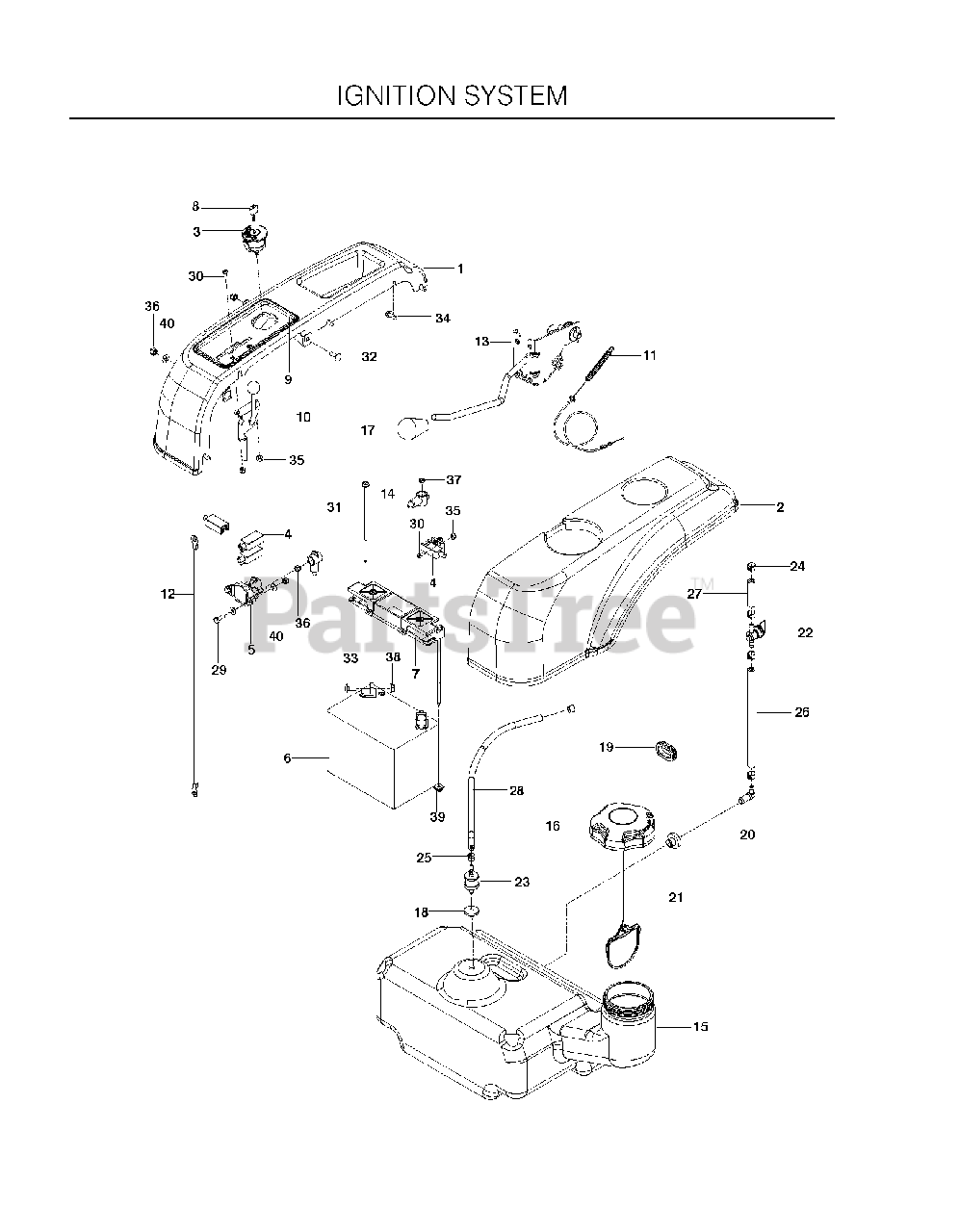

IGNITION SYSTEM Parts Diagram

  • Title

1

Poulan 539120193

FENDER RH

$39.99

$

Usually ships in 3-10 days

0

2

Poulan 539120192

FENDER LH

$39.99

$

Usually ships in 3-10 days

0

3

Poulan 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

4

Poulan 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

5

Poulan 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

6

Poulan 539102436

BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

7

Poulan 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

8

Poulan 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

9

Poulan 525598601

MOUNT, CONTROLS, BLK

$54.99

$

Usually ships in 3-10 days

0

10

Poulan 522730101

CABLE, THROTTLE

$30.99

$

In Stock, only 1 left!

0

11

Poulan 532193235

CABLE.CLUTCH.38".SERVICE

$51.99

$

In Stock, only 2 left!

0

12

Poulan 539110068

BATTERY CABLE, NEGATIVE

$9.49

$

Usually ships in 3-10 days

0

13

Poulan 575661501

ASM, CLUTCH ENGAGE W/CABLE

$53.99

$

Usually ships in 3-10 days

0

14

Poulan 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 576369501

TANK, FUEL EPA
(Superseded to 576646403)

$193.99

$

Usually ships in 3-10 days

0

16

Poulan 575018101

CAP, FUEL

$21.99

$

Usually ships in 3-10 days

0

17

Poulan 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

18

Poulan 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

19

Poulan 539105974

RUBBER GROMMET

$

$

Not available

20

Poulan 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, only 1 left!

0

21

Poulan 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 11

0

22

Poulan 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

23

Poulan 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 17

0

24

Poulan 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

25

Poulan 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

26

Poulan 539115736

HOSE 1/4 X 8

$6.99

$

Usually ships in 3-10 days

0

27

Poulan 539121486

HOSE 1/4 X 2"

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 574521305

HOSE.FEEL.3/16" X 20"

$11.99

$

Usually ships in 3-10 days

0

29

Poulan 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 539976952

SCREW #10-24 X 5/8

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

32

Poulan 539990074

RHSNB 1/4C X 3/4

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Poulan 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

35

Poulan 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

36

Poulan 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 539108120

JAM NUT 1/4C

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

39

Poulan 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

40

Poulan 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

Poulan 539104974

POST.CABLE LONG

Note: NOT SHOWN

$

$

Not available

Poulan 539103306

CABLE POSITIVE, LONG

Note: NOT SHOWN

$10.99

$

In Stock, only 2 left!

0

Poulan 525744301

HARNESS, WIRING 30/38
(Superseded to 574658201)

Note: NOT SHOWN

$148.99

$

Usually ships in 3-10 days

0

Poulan 539110290

FOAM STRIP, FUEL TANK

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0
