301 ZX (966681701) - Poulan Pro 30" Zero-Turn Mower (2010-09) FRAME Parts Diagram

30" Zero-Turn Mower

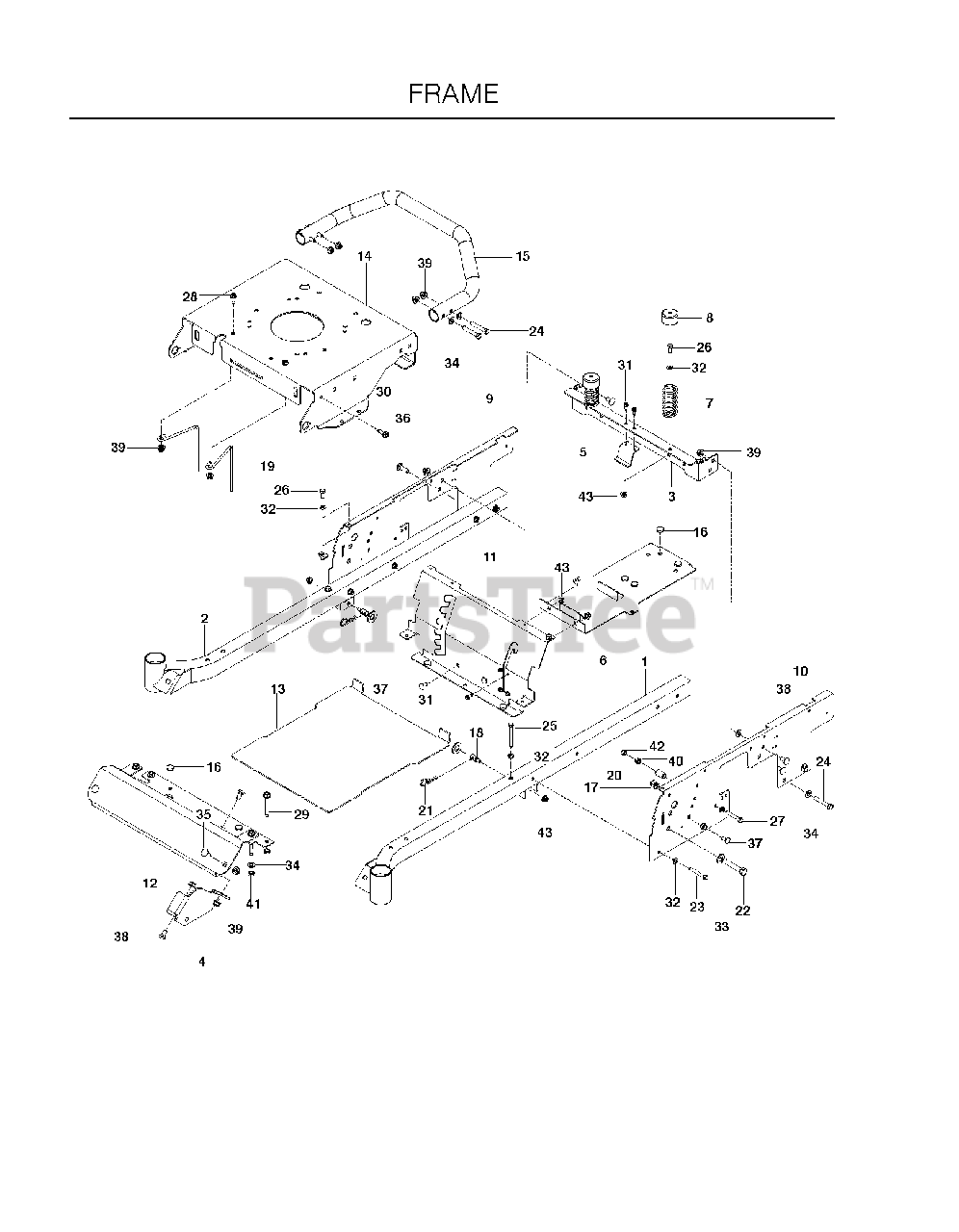

FRAME Parts Diagram

  • Title

1

Poulan 525454704

WLDMT, FRAME TUBED, LH YLW

$

$

Not available

2

Poulan 525454904

WLDMT, FRAME, TUBE RH YLW

$

$

Not available

3

Poulan 525464605

SUPPORT, REAR SEAT, YLW

$

$

Not available

4

Poulan 525605502

BRACKET, FRONT DECK, BLK

$46.99

$

Usually ships in 3-10 days

0

5

Poulan 525864502

HOLDING DEVICE, FUEL TANK, BLK

$12.99

$

Usually ships in 3-10 days

0

6

Poulan 525798402

SUPPORT, TANK/BATT, BLK

$60.99

$

Usually ships in 3-10 days

0

7

Poulan 539122632

SEAT SPRING

$9.49

$

In Stock, only 2 left!

0

8

Poulan 539119884

SPRING CAP

$

$

Not available

9

Poulan 575328404

PANEL, RH SIDE, YLW

$

$

Not available

10

Poulan 575328304

PANEL, LH SIDE, YLW

$

$

Not available

11

Poulan 575852105

PANEL, SEAT SUPP. YLW

$

$

Not available

12

Poulan 522740710

FOOT, REST, YLW

$

$

Not available

13

Poulan 576452404

PLATE, FOOT W/DECALS, HUS

$

$

Not available

14

Poulan 525462609

PLATE, ENGINE, YLW

$

$

Not available

15

Poulan 525865905

IMPACT BAR, YLW

$

$

Not available

16

Poulan 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

17

Poulan 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

18

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

19

Poulan 574172901

BELT GUIDE

$

$

Not available

20

Poulan 539119087

BUSHING

$9.99

$

Usually ships in 3-10 days

0

21

Poulan 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

23

Poulan 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

24

Poulan 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

In Stock, only 2 left!

0

25

Poulan 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

26

Poulan 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

27

Poulan 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

29

Poulan 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 539990369

SCREW

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

32

Poulan 539990188

FLAT WASHER 5/16 SAE
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

33

Poulan 539990250

WASHER 1/2" FLAT
(Superseded to 595086801)

$3.99

$

In Stock, only 2 left!

0

34

Poulan 539990122

WASHER 3/8 SAE FLAT

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 3 left!

0

36

Poulan 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

38

Poulan 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

40

Poulan 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

42

Poulan 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
