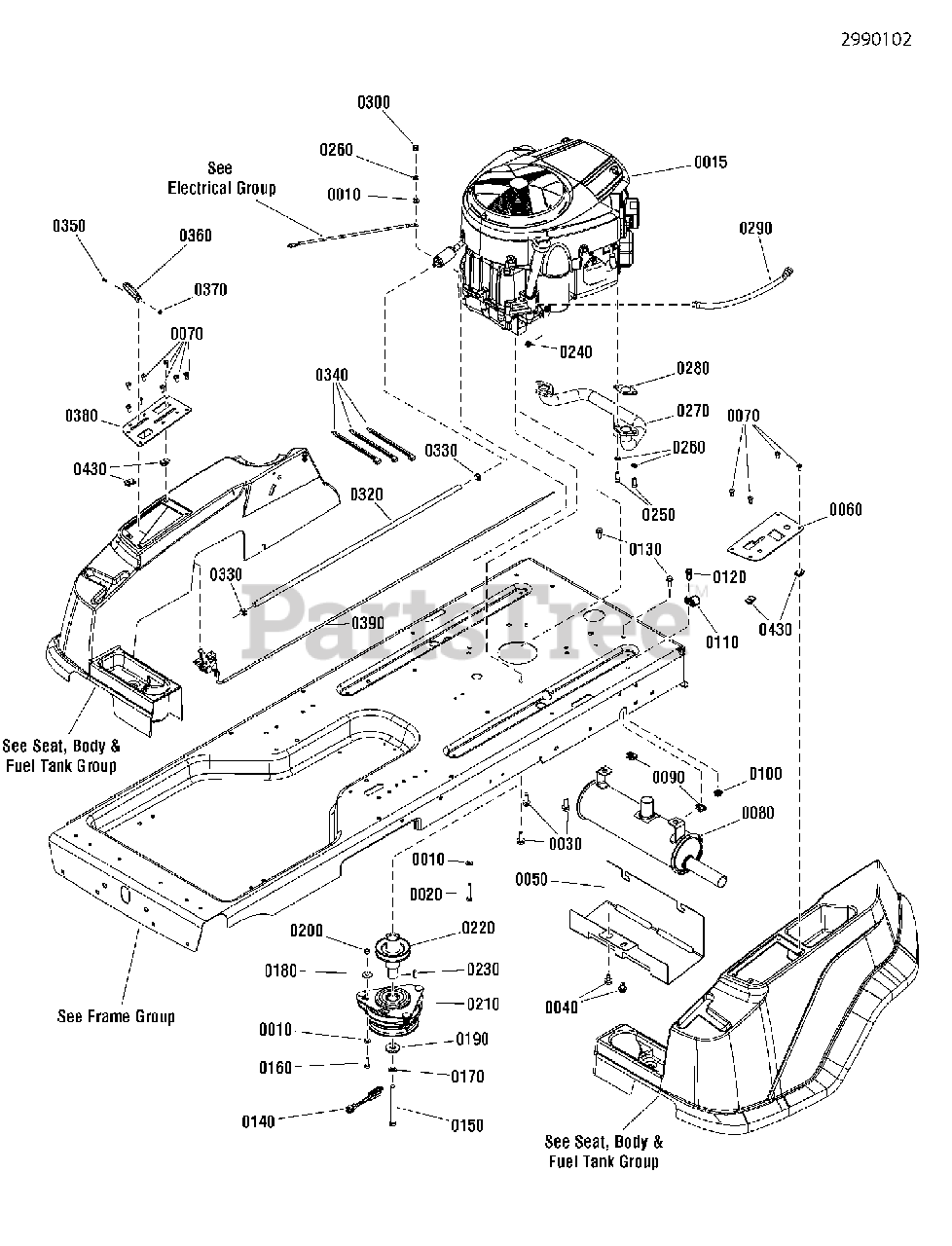

300Z (ZT 2752) (2691035-01) - Snapper 52"/132cm Zero-Turn Mower, 27hp Engine Group, Twin W/EFM Parts Diagram

52"/132cm Zero-Turn Mower, 27hp

Engine Group, Twin W/EFM Parts Diagram

  • Title

0010

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0015

Snapper 44Q777-5141-G5

* ENGINE, 27HP B&S Twin Cyl. W/ EFM, Model 44Q777-5141-G5

$

$

Not available

0020

Snapper 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0020

Snapper 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0030

Snapper 7090324SM

SCREW, 3/8C X1, Hex Washer Head Self Tap, BZ
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 7091198SM

SCREW, 3/8C X 5/8, Hex Washer Head Self Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 7301083BMYP

SHIELD, Muffler Heat

$46.99

$

Usually ships in 2-12 days

0

0060

Snapper 7301084BMYP

PANEL, Control, LH

$21.99

$

Usually ships in 2-12 days

0

0070

Snapper 7090999SM

SCREW, 1/4-20 X 5/8, Pan Head Self Tap Torx, BP
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 7103411YP

MUFFLER, RZT

$231.99

$

Usually ships in 2-12 days

0

0090

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

0100

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 7900020SM

CLIP, Harness, 5/8

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 1921332SM

SCREW, 5/16-18 X 0.750, Hex Head Cap, GR5, Zinc/Clear
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0130

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 10

0

0140

Snapper 1737462YP

HARNESS, Jumper, 4" LG

$9.99

$

In Stock, only 1 left!

0

0150

Snapper 7092130SM

SCREW, 7/16-20 X 4-1/2, Hex Head Cap, GR5 YZ

$

$

Not available

0160

Snapper 703408

SCREW, Hex Head Cap, 5/16-18 X 7/8, GR5

$4.99

$

In Stock, Qty 13

0

0170

Snapper 704007

WASHER, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

0180

Snapper 7011763SM

WASHER, 5/16, Fender

$4.49

$

In Stock, only 4 left!

0

0190

Snapper 704053

WASHER, Thick, 0.468 ID x 1.50 OD x 0.19

$9.99

$

In Stock, only 1 left!

0

0200

Snapper 703164

NUT, Hex Center Lock, 5/16-18, GRB

$3.49

$

In Stock, Qty 18

0

0210

Snapper 1717664SM

CLUTCH, Electric, Ogura JD-11, #504586
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

0220

Snapper 7043343SM

PULLEY, Engine, 3.5" OD, 1" ID, 4.92" Tall

$114.99

$

In Stock, only 1 left!

0

0230

Snapper 7016755YP

KEY, 1/4 X .75, Square

$4.99

$

Usually ships in 2-12 days

0

0240

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 5

0

0250

Snapper 7091738SM

SCREW, 5/16-18 X 3/4, Allen Socket Head, GR8 BZ

$4.99

$

In Stock, Qty 14

0

0260

Snapper 7091315SM

WASHER, .32 X .58 X .08, Split Lock, YZ
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 7103414YP

MANIFOLD, B&S V-Twin

$96.99

$

In Stock, only 1 left!

0

0280

Snapper 1731214SM

GASKET, Exhaust, B&S

$4.99

$

Usually ships in 2-12 days

0

0290

Snapper 1726498SM

HOSE, Oil Drain, .375 ID X 16.5 Long

$26.99

$

Usually ships in 2-12 days

0

0300

Snapper 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0320

Snapper 7200140YP

HOSE, Fuel, Low Perm, 1/4" ID X 32"

$14.99

$

In Stock, only 1 left!

0

0330

Snapper 7012222YP

CLAMP, Fuel Hose, .490 X .31

$

$

Not available

0340

Snapper 7012080SM

TIE, Cable, 7.0"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 7091017YP

SCREW, Filister Head, #8C X 3/8 GR2 BZ

$3.99

$

In Stock, only 4 left!

0

0360

Snapper 7103888YP

KNOB, Throttle

$8.49

$

Usually ships in 2-12 days

0

0370

Snapper 703460

NUT

$3.99

$

In Stock, Qty 9

0

0380

Snapper 7301093BMYP

PANEL, Control, RH

$20.99

$

Usually ships in 2-12 days

0

0390

Snapper 7104211YP

Control, Throttle, B&S V-Twin 44", 1.15" Throw

$45.99

$

Usually ships in 2-12 days

0

0430

Snapper 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0
