300Z (ZT 2548) (2691167-00) - Snapper 48"/122cm Zero-Turn Mower, Fab Deck, 25hp Engine Group - 25 Gross HP B&S Twin Parts Diagram

48"/122cm Zero-Turn Mower, Fab Deck, 25hp

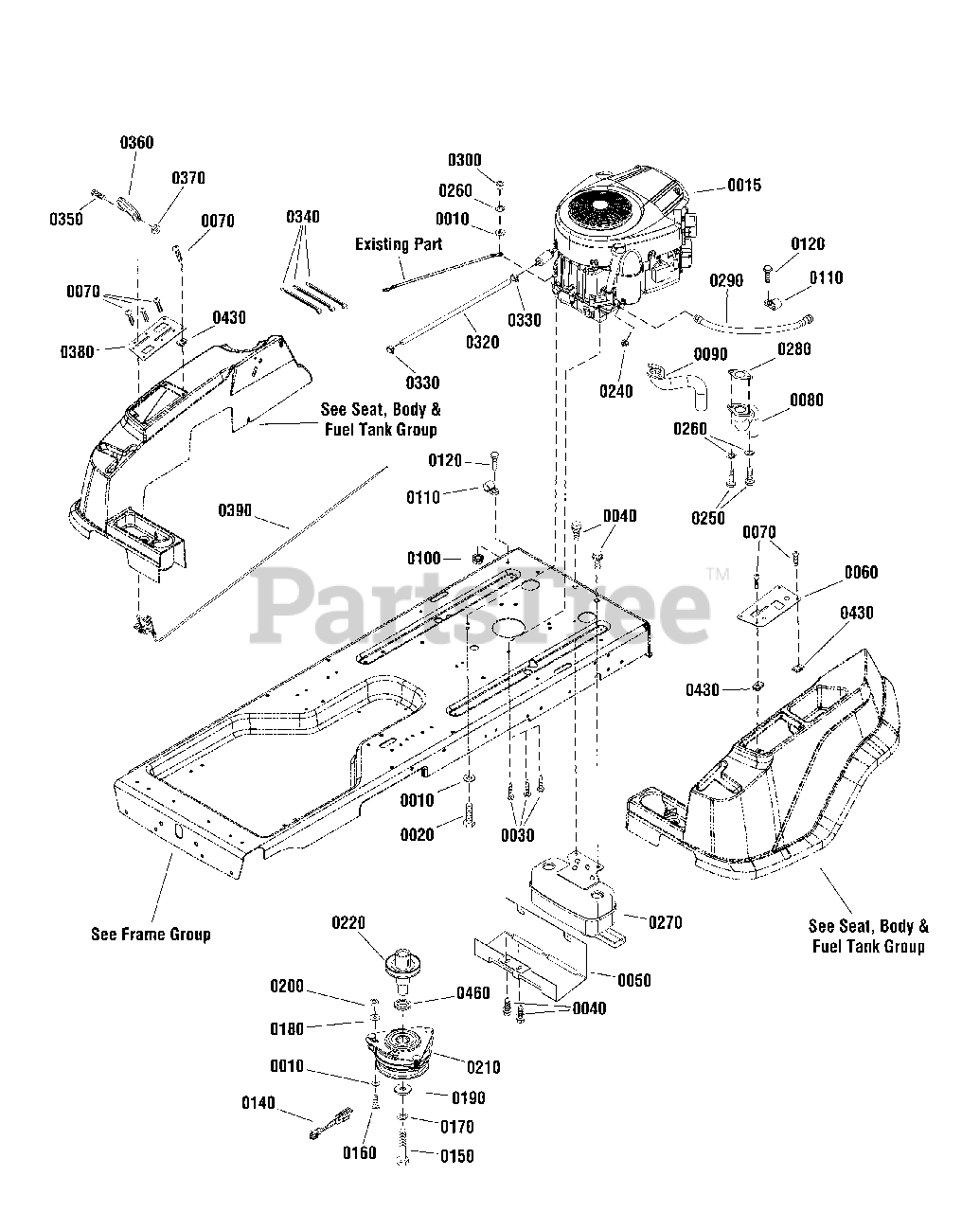

Engine Group - 25 Gross HP B&S Twin Parts Diagram

  • Title

0010

Snapper 703350

WASHER, 5/16, SAE Flat, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0015

Snapper 44S977-0004-G1

* ENGINE, 25 Gross HP B&S Twin Cyl. W/ EFM, Model 44S977-0004-G1

$

$

Not available

0020

Snapper 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0030

Snapper 7090324SM

SCREW, 3/8C X1, Hex Washer Head Self Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 7091198SM

SCREW, 3/8C X 5/8, Hex Washer Head Self Tap

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 1757310BMYP

SHIELD, Muffler Heat

$

$

Not available

0060

Snapper 7301084BMYP

PANEL, Control, LH

$21.99

$

Usually ships in 2-12 days

0

0070

Snapper 7090999SM

SCREW, 1/4-20 X 5/8, Pan Head Self Tap Torx
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 1756684YP

PIPE, Exhaust, LH

$26.99

$

Usually ships in 2-12 days

0

0090

Snapper 1756685YP

PIPE, Exhaust, RH

$26.99

$

Usually ships in 2-12 days

0

0100

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 7900020SM

CLIP, Harness, 5/8

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 1921332SM

SCREW, 5/16-18 X 0.750, Hex Head Cap, GR5
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

0140

Snapper 1737462YP

HARNESS, Jumper, 4" LG

$9.99

$

In Stock, only 1 left!

0

0150

Snapper 7092130SM

SCREW, 7/16-20 X 4-1/2, Hex Head Cap, GR5

$

$

Not available

0160

Snapper 703408

SCREW, 5/16-18 X 0.875, Hex Head Cap, GR5

$4.99

$

In Stock, Qty 13

0

0170

Snapper 703439

WASHER, 7/16, Split Lock, Zinc/Clear

$

$

Not available

0180

Snapper 7011763SM

WASHER, 5/16, Fender

$4.49

$

In Stock, only 4 left!

0

0190

Snapper 703438

WASHER, 0.468 ID X 1.50 OD X 0.19 Thick,Special

$

$

Not available

0200

Snapper 703164

NUT, 5/16-18, Hex Center Lock, GRB

$3.49

$

In Stock, Qty 17

0

0210

Snapper 1757359YP

CLUTCH, Electric, Ogura

$290.99

$

In Stock, only 1 left!

0

0220

Snapper 7043343SM

PULLEY, Engine, 3.5" OD, 1" ID, 4.92" Tall

$114.99

$

In Stock, only 1 left!

0

0240

Snapper 703233

NUT, 1/4-20, Serrated Flange, GR5

$4.49

$

In Stock, Qty 5

0

0250

Snapper 7091738SM

SCREW, 5/16-18 X 3/4, Allen Socket Head, GR8

$4.99

$

In Stock, Qty 14

0

0260

Snapper 7091315SM

WASHER, .32 X .58 X .08, Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 1756693YP

MUFFLER

$109.99

$

In Stock, only 1 left!

0

0280

Snapper 1731214SM

GASKET, Exhaust, B&S

$4.99

$

Usually ships in 2-12 days

0

0290

Snapper 1726498SM

HOSE, Oil Drain, .375 ID X 16.5 Long

$26.99

$

Usually ships in 2-12 days

0

0300

Snapper 7091511SM

NUT, 5/16-18, GR5

$3.49

$

In Stock, Qty 20+

0

0320

Snapper 7200140YP

HOSE, Fuel, Low Perm

$14.99

$

In Stock, only 1 left!

0

0330

Snapper 7012222SM

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0340

Snapper 7012080SM

TIE, Cable, 7.0"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 7091017YP

SCREW, Filister Head, #8C X 3/8 GR2

$3.99

$

In Stock, only 4 left!

0

0360

Snapper 7103888YP

KNOB, Throttle

$8.49

$

Usually ships in 2-12 days

0

0370

Snapper 703437

NUT, #8-32, Hex, Zinc/Clear

$

$

Not available

0380

Snapper 7301093BMYP

PANEL, Control, RH

$20.99

$

Usually ships in 2-12 days

0

0390

Snapper 7104211YP

Control, Throttle

$45.99

$

Usually ships in 2-12 days

0

0430

Snapper 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0460

Snapper 7029137SM

WASHER, Flat

$

$

Not available
