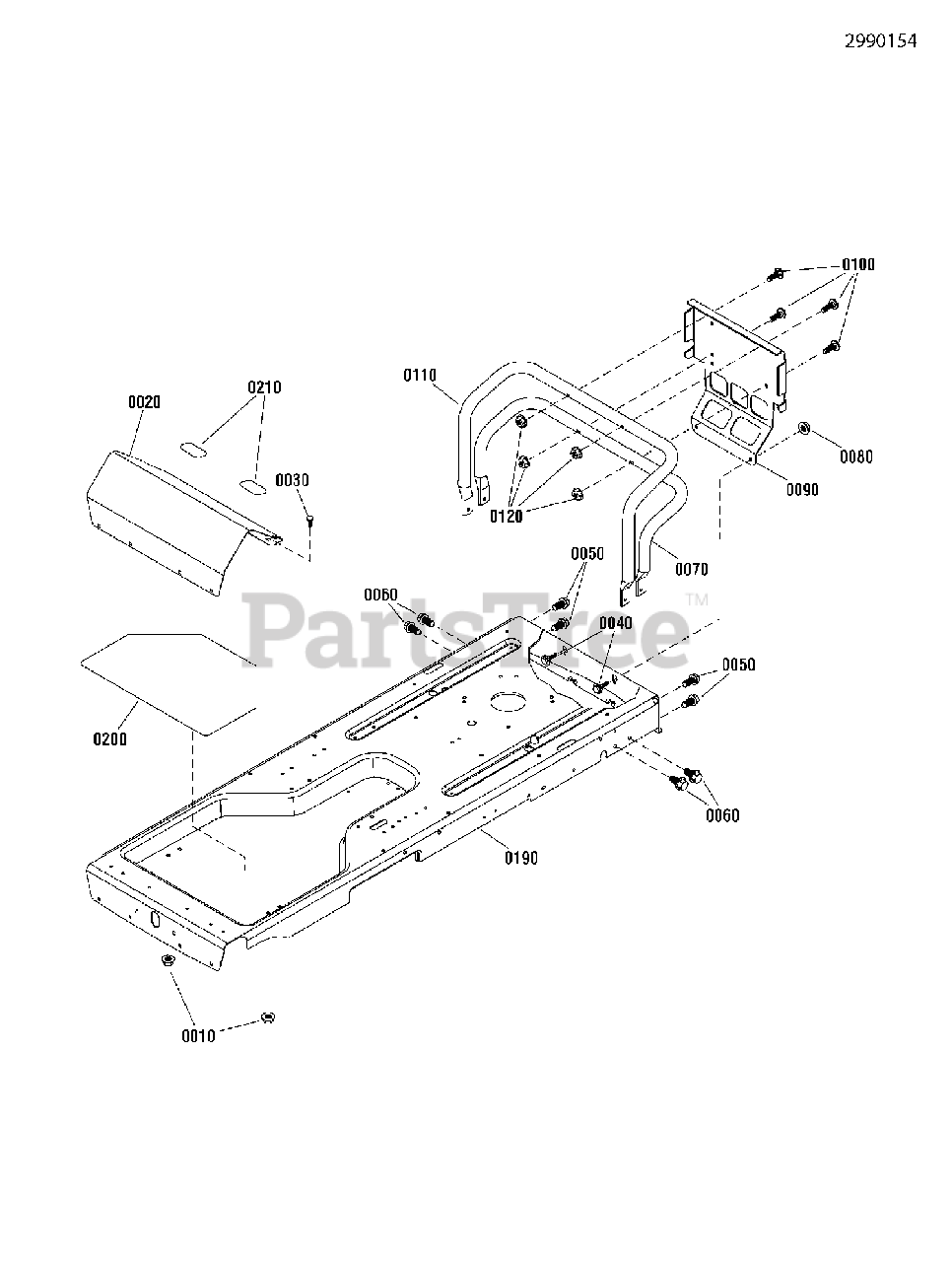

300Z (ZT 2446) (2691034-00) - Snapper 46"/117cm Zero-Turn Mower, 24hp Frame, Footrest, & Two Bar Bumper Group Parts Diagram

46"/117cm Zero-Turn Mower, 24hp

Frame, Footrest, & Two Bar Bumper Group Parts Diagram

  • Title

0010

Snapper 80002728

NUT, 5/16-18, Hex Flange Lock, GR 5, Zinc/Clear
(Superseded to 703409)

Note: (Was 7091601)

$5.49

$

In Stock, Qty 20+

0

0020

Snapper 7300140D

FOOTREST, SNAPPER
(Superseded to 7300140DYP)

$79.99

$

Usually ships in 2-12 days

0

0030

Snapper 80003584

BOLT, 5/16-18 x 5/8 Carriage, Grade 5, Zinc/Clear
(Superseded to 703125)

Note: (Was 7090799)

$3.99

$

In Stock, only 2 left!

0

0040

Snapper 1716654

BOLT, 5/16-18 Shoulder, G5 Yel
(Superseded to 1716654SM)

$5.49

$

In Stock, only 3 left!

0

0050

SCREW, 5/16-18X0.750, Washer Head Taptite, Zinc/Clear

Note: (Was 1664847)

$

$

Not available

0060

SCREW, 5/16-18X0.750, Washer Head Taptite, Zinc/Clear

Note: (Was 1664847)

$

$

Not available

0070

Snapper 1753517BM

BUMPER, Lower Tube Single
(Superseded to 1753517BMYP)

$92.99

$

In Stock, only 1 left!

0

0080

NUT, 5/16-18, Hex Flange Whiz-Lock, Zinc/Clear

Note: (Was 1927557)

$

$

Not available

0090

Snapper 1753572D

PLATE, Brand - SNAPPER, Red
(Superseded to 1753572DYP)

$95.99

$

Usually ships in 2-12 days

0

0100

BOLT, 5/16-18 x 1-3/4 Round Head Short Square Neck, GR 5, Zinc/Clear

Note: (Was 1931338)

$

$

Not available

0110

Snapper 7301123BM

TUBE, Bumper, Upper, 285Z
(Superseded to 7301123BMYP)

$142.99

$

Usually ships in 2-12 days

0

0120

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

Note: (Was 1960686)

$

$

Not available

0190

Snapper 7301073D

FRAME, RZT
(Superseded to 7301073DYP)

$1128.99

$

Usually ships in 2-12 days

0

0200

Snapper 7103830

MAT, Floor Pan, RZT
(Superseded to 7103830YP)

$33.99

$

Usually ships in 2-12 days

0

0210

Snapper 7104571

PAD, Foot, Wide
(Superseded to 7104571YP)

$17.99

$

In Stock, Qty 5

0
