300Z (ZT 2446) (2691034-00) - Snapper 46"/117cm Zero-Turn Mower, 24hp 46" Mower Deck - Housing & Arbor Group Parts Diagram

46"/117cm Zero-Turn Mower, 24hp

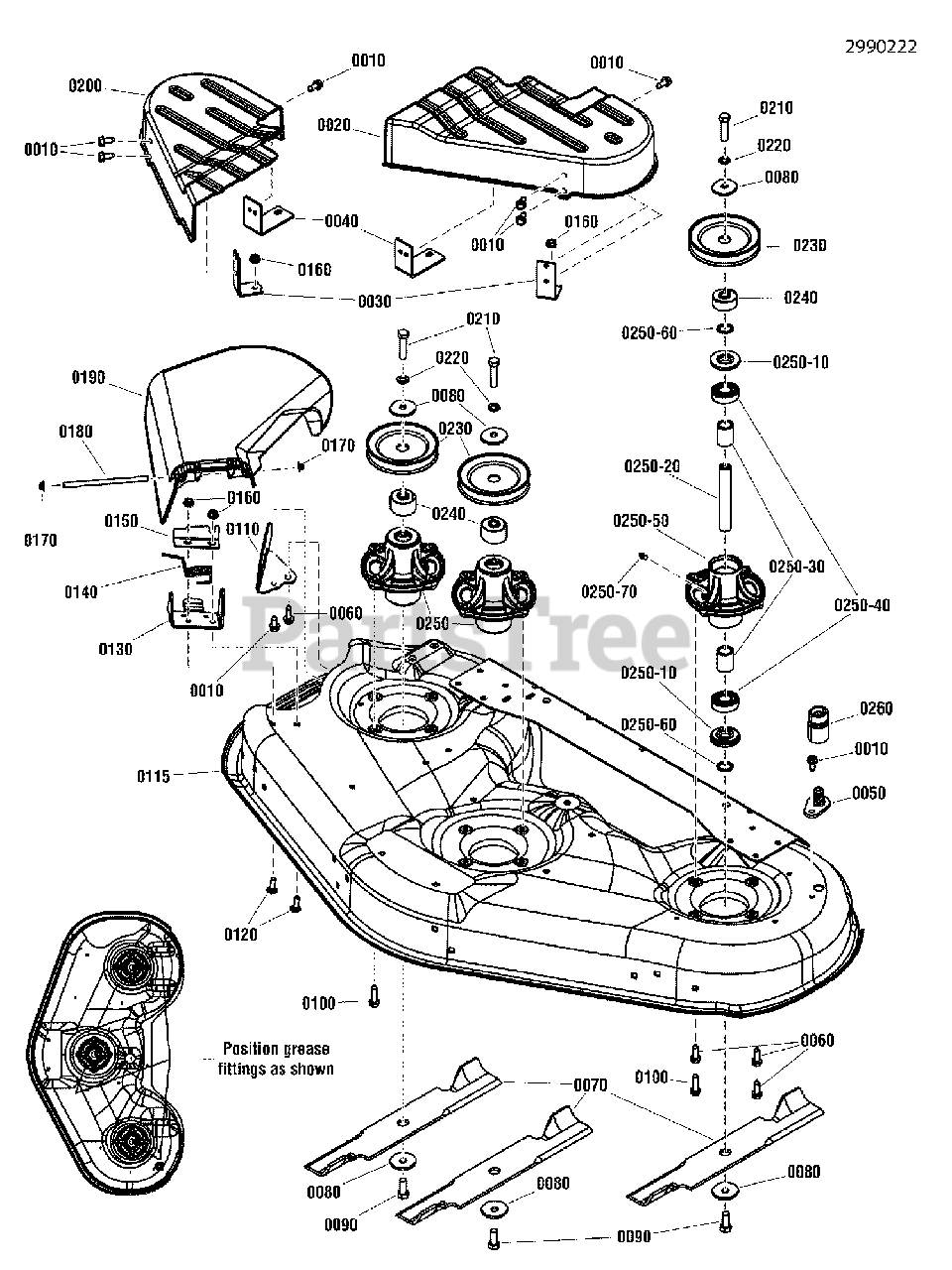

46" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

0010

Snapper 80002741YP

SCREW, 5/16-18X0.750,Washer Head Taptite, Zinc/Clear

Note: (Was 1664847)

$

$

Currently unavailable

0020

Snapper 7104697YP

COVER, Spindle, 46/52 Deck, LH 285Z

$55.99

$

In Stock, only 2 left!

0

0030

Snapper 7301134BMYP

BRACKET, 46 / 52 Cover Mounting

$

$

Not available

0040

Snapper 7301133BMYP

BRACKET, Rear Deck Cover Support 285Z

$14.99

$

Usually ships in 2-12 days

0

0050

Snapper 1735716YP

ADAPTER, Washout Port, 46+52, Plastic
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0060

Snapper 1960373SM

SCREW, 5/16-18X1.0, Hex Washer Head, Taptite, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0070

Snapper 1737228YP

BLADE, Mower, 16.13 Long, 46 Deck
(Superseded to 1737228BZYP)

$21.99

$

In Stock, Qty 20+

0

0080

Snapper 1656916SM

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black

$7.49

$

In Stock, Qty 20+

0

0090

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 15

0

0260

Snapper 1736898YP

CONNECTOR, Washout Port 46/52 Black Poly
(Superseded to 1756246YP)

$15.99

$

Usually ships in 2-12 days

0

0110

Snapper 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0115

Snapper 1753348DYP

HOUSING, 46" Mower - Frame Hung, Red

$

$

Currently unavailable

0120

Snapper 1931334SM

BOLT, 5/16-18 x 7/8 Carriage, Short Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

0130

Snapper 1736365BMYP

PIVOT, Hinge

$12.99

$

In Stock, only 1 left!

0

0140

Snapper 1736364YP

SPRING, Torsion, Deflector, 2.16 LG, 46 Mwr

$8.49

$

Usually ships in 2-12 days

0

0150

Snapper 1737359BMYP

PLATE, Deflector Closeoff

$8.49

$

In Stock, only 3 left!

0

0160

Snapper 80002728YP

NUT, 5/16-18, Hex Flange Lock, GR 5, Zinc/Clear

Note: (Was 1931277)

$

$

Currently unavailable

0170

Snapper 7012542YP

NUT, 5/16 Push, BZ
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

0180

Snapper 1736366YP

ROD, Deflector, Clear/Zinc

$11.99

$

Usually ships in 2-12 days

0

0190

Snapper 1735447YP

DEFLECTOR, Discharge, Plastic 46/52 Decks
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

0200

Snapper 7104696YP

COVER, Spindle, 46/52 Deck RH 285Z

$55.99

$

In Stock, only 2 left!

0

0260

Snapper 1736898YP

CONNECTOR, Washout Port 46/52 Black Poly
(Superseded to 1756246YP)

$15.99

$

Usually ships in 2-12 days

0

0220

Snapper 1918199SM

LOCKWASHER, 7/16, Spring, Black
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0230

Snapper 1735686YP

PULLEY, 4.6 OD, 11 GA Split 46 Mower

$19.99

$

In Stock, only 3 left!

0

0240

Snapper 1736445YP

SPACER, Pulley, Powdered Metal

$13.99

$

In Stock, only 1 left!

0

0250

Snapper 7502226YP

ARBOR ASSEMBLY
(Superseded to 84003175)

$100.99

$

In Stock, only 1 left!

0

0250-10

Snapper 1735323YP

SHIELD, Arbor, 2-1/16 OD
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0250-20

Snapper 1735326YP

SHAFT, Spindle 20MM Dia., 134.60 MM Long
(Superseded to 1760276YP)

$27.99

$

In Stock, only 2 left!

0

0250-30

Snapper 1735328YP

SPACER, Bearing Powdered Metal

$6.49

$

In Stock, only 1 left!

0

0250-40

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0250-50

Snapper 1735573YP

HOUSING, Spindle, Cast Aluminum (Machined) w/Grease Fitting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 10

0

0250-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0250-70

Snapper 1704314SM

LUBE FITTING, .250 Drive Type, Ball Check, Yel
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0260

Snapper 1736898YP

CONNECTOR, Washout Port 46/52 Black Poly
(Superseded to 1756246YP)

$15.99

$

Usually ships in 2-12 days

0

0610

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$
