300S (5902149) - Ferris 300S Series 42" Zero-Turn Mower, 23hp Briggs & Stratton Lift Group Parts Diagram

300S Series 42" Zero-Turn Mower, 23hp Briggs & Stratton

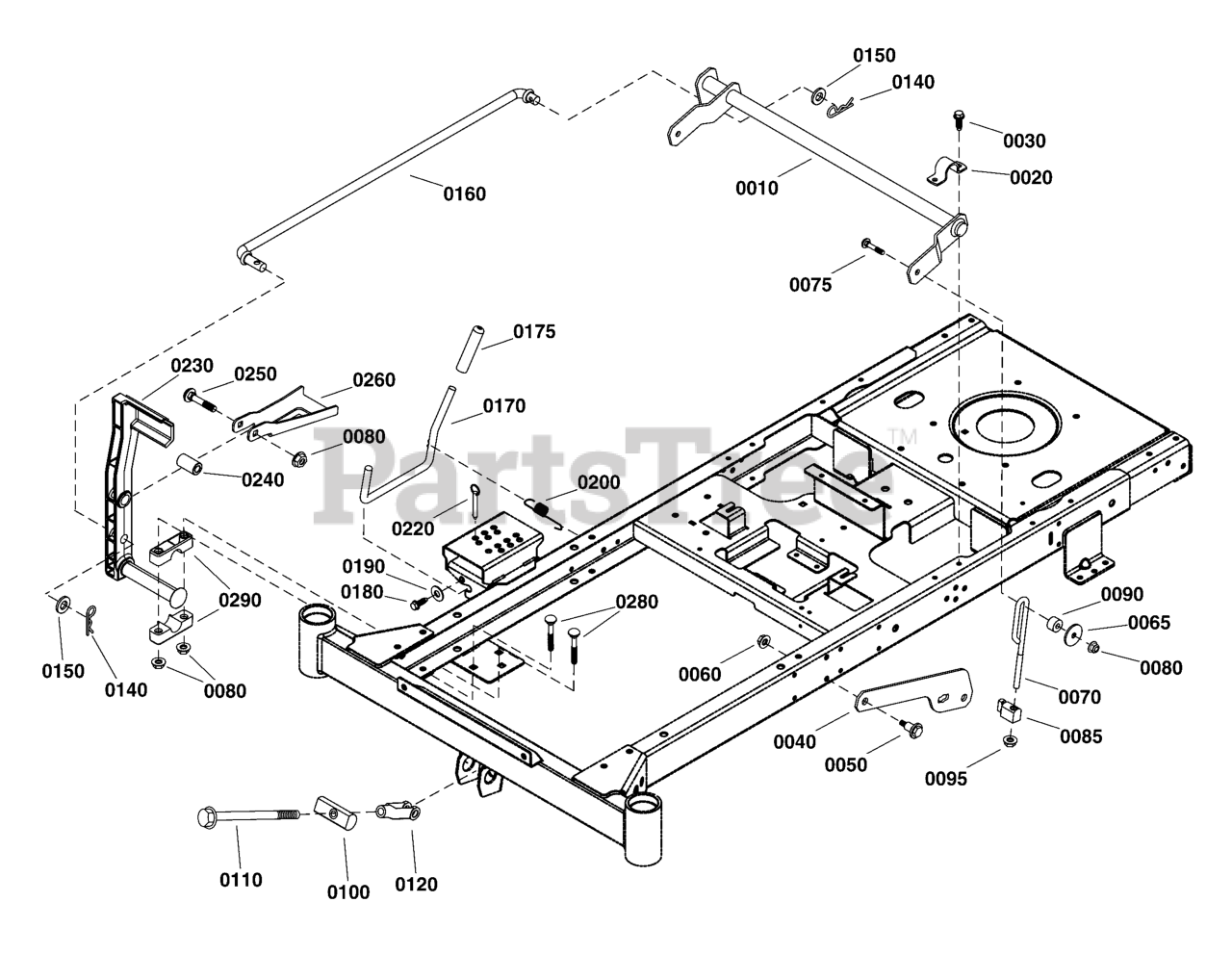

Lift Group Parts Diagram

  • Title
0010

$165.99

$

Usually ships in 2-12 days

0

0020

Ferris 1720147BZYP

STRAP, 1 IN. DIA

$9.99

$

Usually ships in 2-12 days

0

0030

Ferris 703949

SCREW, 5/16-18.625

$3.99

$

In Stock, Qty 5

0

0040

Ferris 1757953AYP

ARM, Lift

$34.99

$

In Stock, only 2 left!

0

0050

Ferris 1732426SM

BOLT-SHLDR 5/16-18 0.

$4.49

$

In Stock, only 1 left!

0

0060

$3.49

$

In Stock, Qty 20+

0

0065

Ferris 5025305SM

WASHER, .41 X 1.75 X

$3.99

$

In Stock, only 2 left!

0

0070

Ferris 84003818

ROD, Lift

$12.99

$

In Stock, only 1 left!

0

0075

Ferris 703406

CAPSCREW,3/8-16X1.5

$4.99

$

In Stock, only 1 left!

0

0080

Ferris 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0085

Ferris 84003820

TRUNNION

$6.99

$

Usually ships in 2-12 days

0

0090

$7.49

$

In Stock, Qty 5

0

0095

$3.49

$

In Stock, Qty 20+

0

0100

$13.99

$

In Stock, only 1 left!

0

0110

$18.99

$

In Stock, only 1 left!

0

0120

Ferris 5023174SM

CLEVIS, 1/2-20, STEEL

$16.99

$

Usually ships in 2-12 days

0

0140

Ferris 403162MA

PIN, Hair, 3/32 X 1.6

$

$

Not available

0150

Ferris 5025281SM

WASHER, 5/8" SAE

$3.99

$

In Stock, Qty 8

0

0160

$45.99

$

Usually ships in 2-12 days

0

0170

$39.99

$

Usually ships in 2-12 days

0

0175

Ferris 5021880SM

GRIP, FOAM

$5.99

$

Usually ships in 2-12 days

0

0180

Ferris 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 5

0

0190

Ferris 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, only 4 left!

0

0200

Ferris 1758283YP

SPRING, EXTENSION

$6.99

$

In Stock, only 1 left!

0

0220

Ferris 5103021YP

HITCH PIN, 3/8 X 2-1/

$11.99

$

In Stock, Qty 5

0

0230

$113.99

$

Usually ships in 2-12 days

0

0240

Ferris 1756612YP

BUSHING, DIFF. LOCK

$5.49

$

Usually ships in 2-12 days

0

0250

Ferris 7900009SM

RHSSNB, 3/8-16 X 2-1/

$3.99

$

In Stock, only 1 left!

0

0260

$18.99

$

Usually ships in 2-12 days

0

0280

Ferris 1960615SM

BOLT-RD HD SQ NK 3/8

$5.49

$

In Stock, only 1 left!

0

0290

Ferris 5100634SM

PIVOT BLOCK, PLASTIC

$7.49

$

Usually ships in 2-12 days

0
