300S (5902144) - Ferris 300S Series 42" Zero-Turn Mower, 23hp Briggs & Stratton 42" Mower Deck - Clutch & Support Group Parts Diagram

300S Series 42" Zero-Turn Mower, 23hp Briggs & Stratton

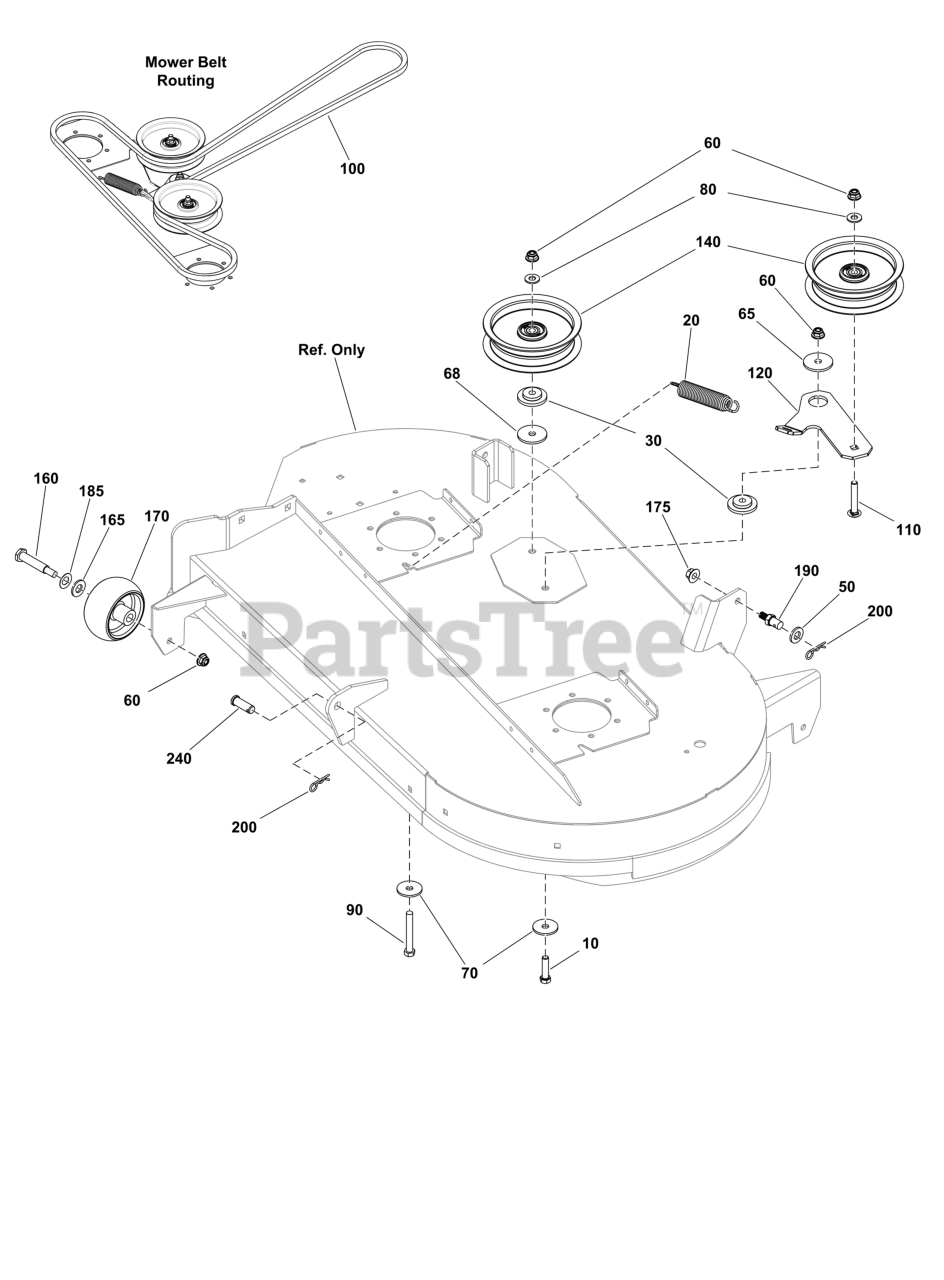

42" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

10

Ferris 703406

CAPSCREW,3/8-16X1.5

$4.99

$

In Stock, only 1 left!

0

20

Ferris 1715772SM

SPRING, Extension

$13.99

$

In Stock, Qty 20+

0

30

Ferris 706128

SPACER, IDLER

$6.99

$

In Stock, only 4 left!

0

50

Ferris 703853

WASHER, 0.516IDX1OD

$4.99

$

In Stock, Qty 20+

0

60

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

65

Ferris 5025305SM

WASHER, .41 X 1.75 X

$3.99

$

In Stock, only 2 left!

0

68

Ferris 5025305SM

WASHER, .41 X 1.75 X

$3.99

$

In Stock, only 2 left!

0

70

Ferris 703591

WASHER, .406X1.5X.12

$5.49

$

In Stock, Qty 20+

0

80

Ferris 703878

WASHER, FLAT

$3.99

$

In Stock, Qty 20+

0

90

Ferris 5025013X22SM

BOLT, 3/8-16 X 2-3/4"

$4.49

$

In Stock, only 3 left!

0

100

Ferris 1758101YP

BELT, 113.0 Effective Length

$64.99

$

Usually ships in 2-12 days

0

110

Ferris 7900009SM

RHSSNB, 3/8-16 X 2-1/

$3.99

$

In Stock, only 1 left!

0

120

Ferris 1758789AYP

ARM, Idler

$28.99

$

In Stock, only 1 left!

0

140

Ferris 84003633

PULLEY, Flat Idler

$39.99

$

In Stock, Qty 12

0

160

Ferris 2108765SM

BOLT-WHEEL 3/8-16X2.7

$6.49

$

In Stock, Qty 20+

0

165

Ferris 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 12

0

170

Ferris 1714760SM

GAUGE WHEEL

$6.49

$

In Stock, Qty 20+

0

175

Ferris 1960339SM

NUT, Hex Flange, MAC Lock Large, 3/8-16

$

$

Not available

185

Ferris 0020X3MA

WASHER,SPRING .52X.99

$4.49

$

Usually ships in 2-12 days

0

190

Ferris 704054

PIN, 3/8-16

$7.49

$

In Stock, Qty 20+

0

200

Ferris 7091503SM

HAIR PIN, 3/32X1-1/2

$3.99

$

In Stock, Qty 20+

0

240

Ferris 5025479YP

CLEVIS PIN, 1/2 X 1.3

$3.99

$

In Stock, only 2 left!

0
