300S (5902143) - Ferris 300S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Frame Group Parts Diagram

300S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

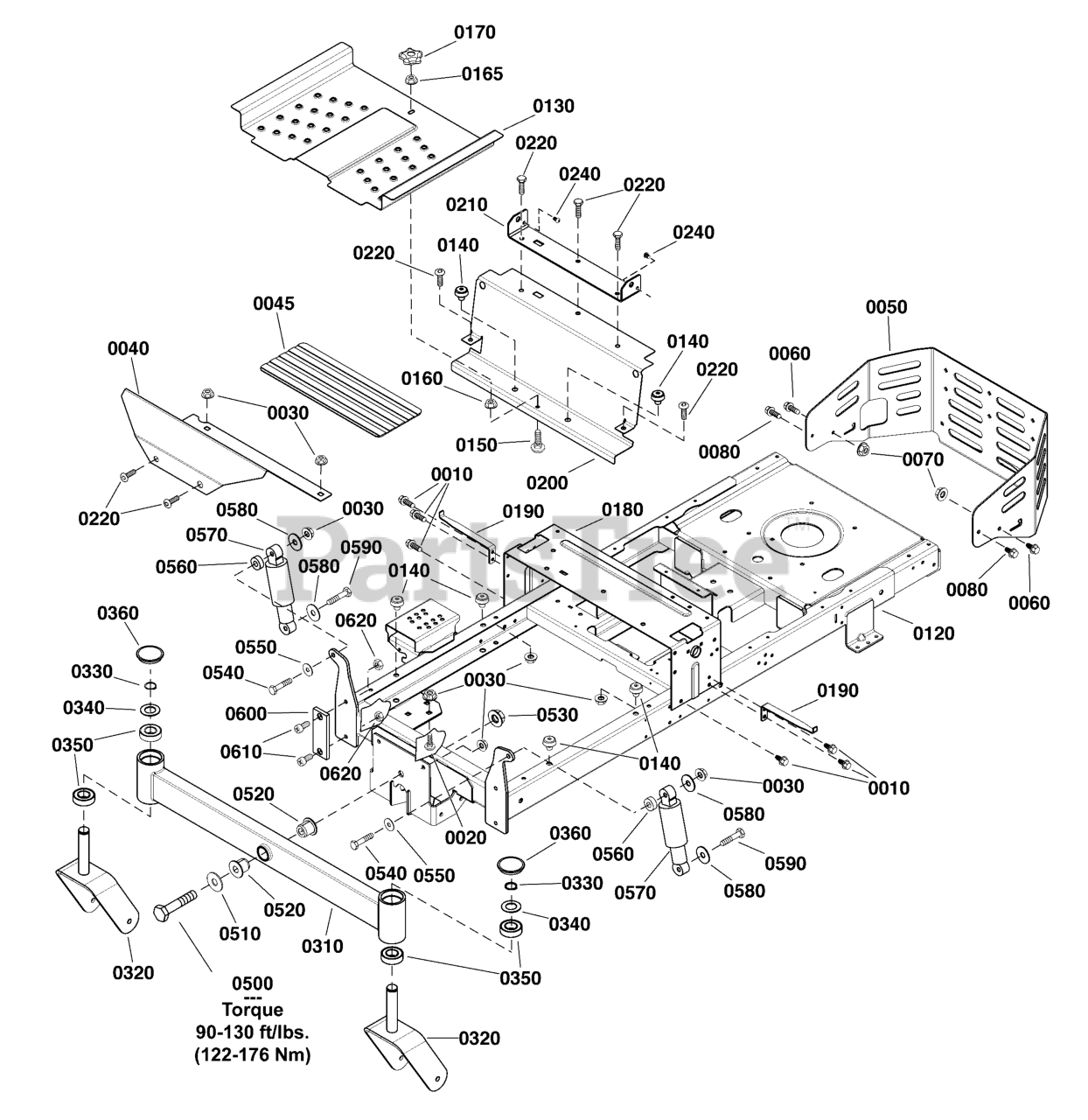

Frame Group Parts Diagram

  • Title

0010

Ferris 703949

SCREW, 5/16-18.625

$3.99

$

In Stock, only 3 left!

0

0020

Ferris 703448

BOLT, 3/8-16X.75 G5

$4.49

$

In Stock, Qty 20+

0

0030

Ferris 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0040

Ferris 1759278BYP

FOOTREST

$165.99

$

Usually ships in 2-12 days

0

0045

Ferris 5101374YP

SAFETY WALK, FLOOR RE

$18.99

$

In Stock, only 1 left!

0

0050

Ferris 1759501BYP

BUMPER, Rear

$250.99

$

Usually ships in 2-12 days

0

0060

Ferris 703410

BOLT,5/16-18X1

$4.49

$

In Stock, only 2 left!

0

0070

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0080

Ferris 1664847CAYP

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0120

FRAME , Pivot & Suspension

Note: (Not a serviceable part)

$

$

Not available

0130

Ferris 5601480

FOOT PAN W/ DECAL

$

$

Currently unavailable

0140

Ferris 197546GS

MOUNT-VIBRATION

$7.99

$

In Stock, only 2 left!

0

0150

Ferris 7090496YP

RHSSNB, 1/4C X1 GR5 Z

$3.49

$

Usually ships in 2-12 days

0

0160

Ferris 7091584SM

NUT, Serrated Flange,1/4-20, GR5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0165

Ferris 703954

NUT, Centerlock, 1/4-20, GR5
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0170

Ferris 707785

KNOB

$5.99

$

Usually ships in 2-12 days

0

0180

Ferris 80096436BFS

BRACKET, CONTROL

$109.99

$

Usually ships in 2-12 days

0

0190

Ferris 1758240AYP

BRACKET, Fender

$9.49

$

Usually ships in 2-12 days

0

0200

Ferris 1757796BYP

PLATE-DECAL

$108.99

$

Usually ships in 2-12 days

0

0210

Ferris 84001640

SUPPORT, Seat

$35.99

$

Usually ships in 2-12 days

0

0220

Ferris 707790

SCREW, Button Head, 3/8-16 X .88
(Superseded to 84004627)

$4.49

$

Usually ships in 2-12 days

0

0240

Ferris 703932

SCREW, 5/16-18X.5

$4.99

$

Usually ships in 2-12 days

0

0310

Ferris 84001641

AXLE ASSEMBLY

$246.99

$

Usually ships in 2-12 days

0

0320

Ferris 80081658BFS

CASTER

$104.99

$

Usually ships in 2-12 days

0

0330

Ferris 703993

RETAINER, EXT RING, 1

$3.49

$

In Stock, Qty 11

0

0340

Ferris 703199

WASHER, 1

$4.99

$

In Stock, only 2 left!

0

0350

Ferris 1758354YP

BEARING

$10.99

$

In Stock, only 2 left!

0

0360

Ferris 1725651SM

COVER, Spindle

$4.49

$

In Stock, Qty 20+

0

0360

Ferris 5105524YP

CAP

$8.99

$

In Stock, only 3 left!

0

0500

Ferris 707789

BOLT

$5.49

$

Usually ships in 2-12 days

0

0510

Ferris 1960035SM

WASHER-0.625(0.64IDX1

$4.49

$

In Stock, only 2 left!

0

0520

Ferris 1759234YP

BUSHING

$9.49

$

Usually ships in 2-12 days

0

0530

Ferris 2860646SM

NUT, Hex Flange, 5/8-11

$10.99

$

In Stock, Qty 6

0

0540

Ferris 703589

CAPSCREW, 3/8-16X2

$4.49

$

In Stock, only 1 left!

0

0550

Ferris 71072MA

WASHER, FLAT .406X.81

$4.49

$

In Stock, only 4 left!

0

0560

Ferris 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

0570

Ferris 1755279YP

SHOCK ABSORBER, 8IN

$69.99

$

Usually ships in 2-12 days

0

0580

Ferris 5025165SM

WASHER, 3/8" FENDER

$3.99

$

In Stock, only 2 left!

0

0590

Ferris 703406

CAPSCREW,3/8-16X1.5

$4.99

$

In Stock, only 1 left!

0

0600

Ferris 1759391YP

PAD-FRICTION

$13.99

$

Usually ships in 2-12 days

0

0610

Ferris 5025594YP

SCREW, 5/16-18 X 1

$3.99

$

Usually ships in 2-12 days

0

0620

Ferris 703902

NUT, HEX, 5/16-18

$3.99

$

In Stock, Qty 20+

0
