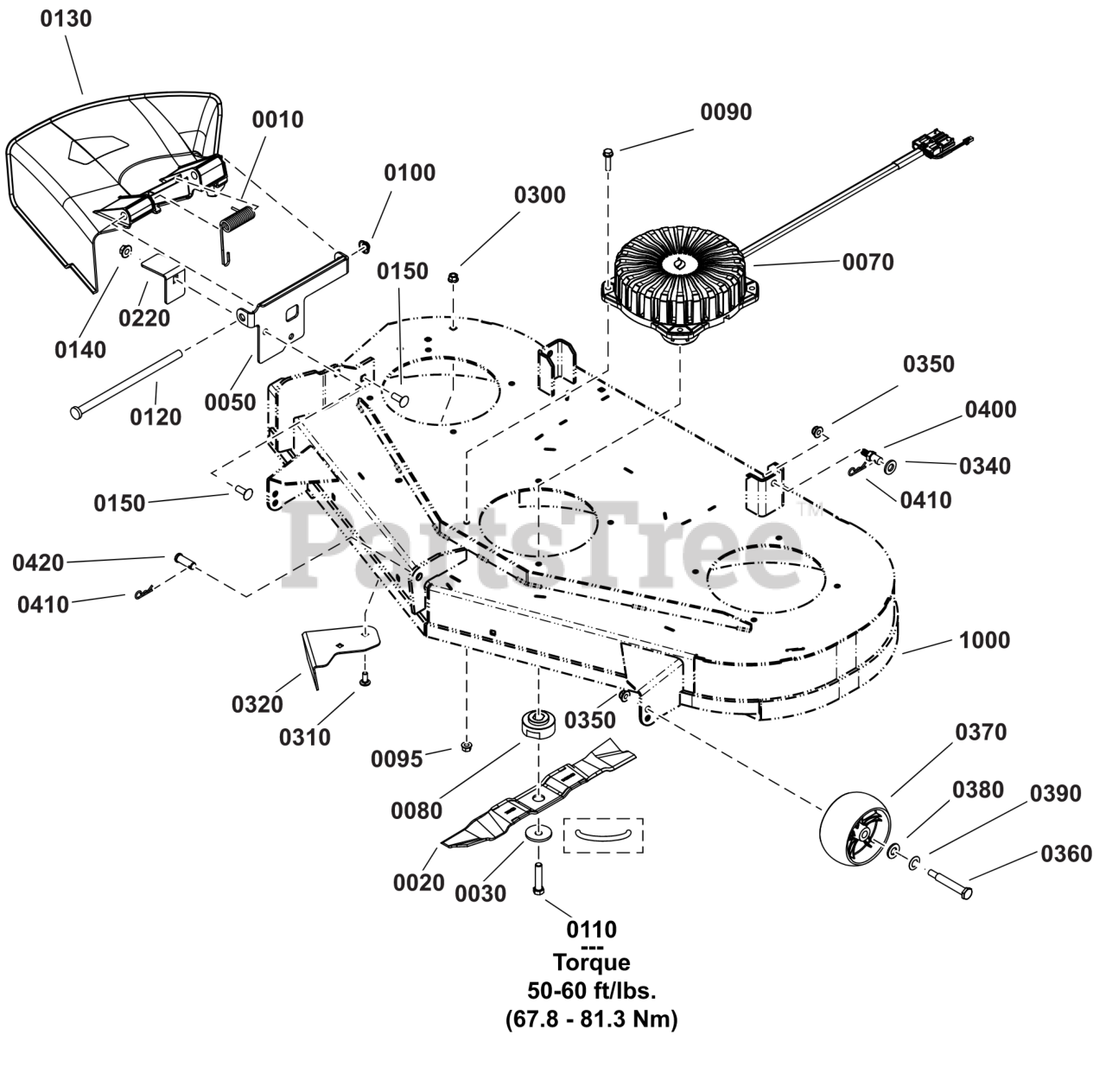

300e (5902094-00) - Ferris 300e Series 48" EZT Zero-Turn Mower, Electric 48" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

300e Series 48" EZT Zero-Turn Mower, Electric

48" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Ferris 7035813SM

SPRING, TORSION, SIDE

$24.99

$

In Stock, only 1 left!

0

0020

Ferris 84007843

BLADE

$

$

Currently unavailable

0030

Ferris 1656916SM

WASHER, SPRING 0.475I

$7.49

$

In Stock, Qty 20+

0

0050

Ferris 84007829

BRACKET

$

$

Currently unavailable

0070

Ferris 84007820

MOTOR

$

$

Currently unavailable

0080

Ferris 84007840

ADAPTER, Blade

$

$

Currently unavailable

0090

Ferris 5023156SM

BOLT, 5/16-18 X 1 1/4

$3.99

$

In Stock, only 1 left!

0

0095

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0100

Ferris 703179

PUSHNUT, CAP TYPE

$3.49

$

In Stock, Qty 20+

0

0110

Ferris 1927531SM

CAPSCREW-HEX HD 7/16-

$5.49

$

In Stock, Qty 5

0

0120

Ferris 7104640YP

ROD, Deflector

$28.99

$

In Stock, only 1 left!

0

0130

Ferris 7104733YP

CHUTE, SIDE DISCHARGE

$87.99

$

In Stock, Qty 19

0

0140

Ferris 703793

LOCKNUT

$4.49

$

In Stock, Qty 5

0

0150

Ferris 703815

BOLT, RD SQ 3/8-16X1

$4.49

$

In Stock, only 4 left!

0

0220

Ferris 1758593BMYP

PROP, DEFLECTOR

$18.99

$

Usually ships in 2-12 days

0

0300

Ferris 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 16

0

0310

Ferris 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 16

0

0320

Ferris 84007830

BAFFLE

$

$

Currently unavailable

0340

Ferris 703853

WASHER, 0.516IDX1OD

$4.99

$

In Stock, Qty 20+

0

0350

Ferris 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0360

Ferris 1736539YP

BOLT, SHOULDER

$8.99

$

Usually ships in 2-12 days

0

0370

Ferris 1736896YP

WHEEL, GAUGE

$16.99

$

In Stock, Qty 5

0

0380

Ferris 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 12

0

0390

Ferris 0020X3MA

WASHER,SPRING .52X.99

$4.49

$

Usually ships in 2-12 days

0

0400

Ferris 704054

PIN, 3/8-16

$7.49

$

In Stock, Qty 20+

0

0410

Ferris 703300

PIN, 3/32 X 1.6

$3.99

$

In Stock, Qty 20+

0

0420

Ferris 5025479YP

CLEVIS PIN, 1/2 X 1.3

$3.99

$

In Stock, only 2 left!

0

1000

Mower Deck, 48"

$

$

Not available
