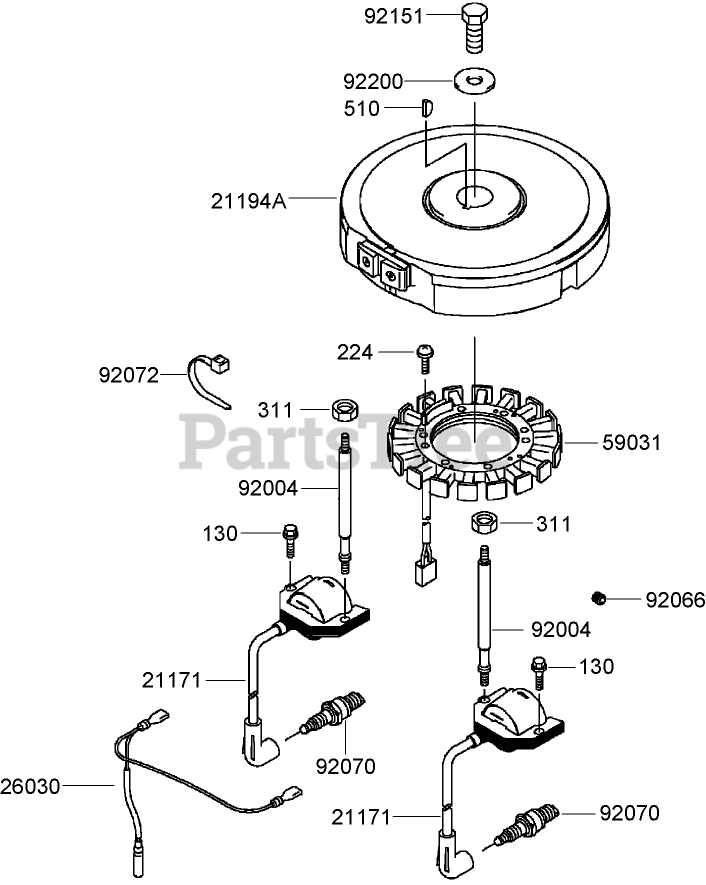

30099 - Toro 52" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 270000001 - 270999999) (2007) ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH541V-ES30 Parts Diagram

52" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH541V-ES30 Parts Diagram

  • Title
21171

Toro 21171-7013

IGNITION COIL ASM
(Superseded to 21171-7034)

Note: Obtain parts from www.kawpowerepc.com

$81.99

$

In Stock, Qty 20+

0

21194A

Kawasaki 21194-7026

FLYWHEEL
(Superseded to 21194-0023)

Note: Obtain parts from www.kawpowerepc.com

$190.99

$

Usually ships in 2-5 days

0

26030

Kawasaki 26030-7001

Harness

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 11

0

59031

Kawasaki 59031-7002

Coil-Charging
(Superseded to 59031-7011)

Note: Obtain parts from www.kawpowerepc.com

$71.99

$

In Stock, only 3 left!

0

92004

Kawasaki 92004-7009

Stud
(Superseded to 92004-7026)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7002

Plug
(Superseded to 92066-0881)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7003

SPARK PLUG (R C J 8 Y, SOLID)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

Band

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 5

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 19

0

92200

Kawasaki 92200-7002

Washer

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 10

0

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN (5X20)
(Superseded to 224AA0520)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 17

0

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0
