30098 - Toro 48" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 290001001 - 290999999) (2009) UPPER HANDLE ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

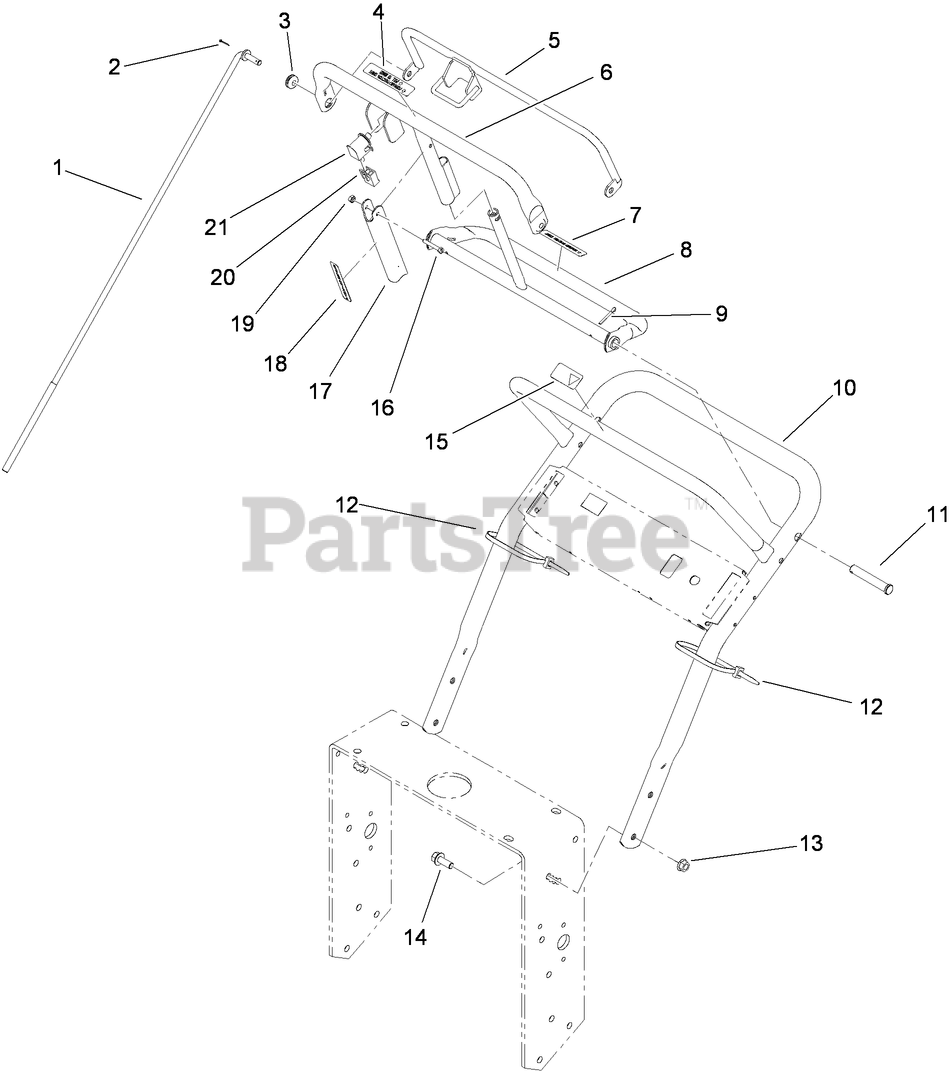

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-4677

ROD-CONTROL

$68.99

$

Usually ships in 3-6 days

0

2

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

3

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

4

Toro 82-2290

DECAL

$12.99

$

Usually ships in 3-6 days

0

5

Toro 82-7680-03

BAIL

$152.99

$

Usually ships in 3-6 days

0

6

Toro 82-7690-03

BAR-CONTROL

$281.99

$

Usually ships in 3-6 days

0

7

Toro 82-2280

DECAL

$10.99

$

In Stock, only 1 left!

0

8

Toro 106-5477-03

PIVOT-CONTROL

$202.99

$

Usually ships in 3-6 days

0

9

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

10

Toro 105-3158-03

HANDLE-UPPER

$259.99

$

Usually ships in 3-6 days

0

11

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

14

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

15

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

16

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

17

Toro 51-4850-03

LEVER-BRAKE, PARKING

$38.99

$

In Stock, only 1 left!

0

18

Toro 52-2010

DECAL-LEVER, PARKING

$5.99

$

Usually ships in 3-6 days

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 218-595

CONNECTOR-BODY

$

$

Not available

21

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0
