30098 - Toro 48" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 290001001 - 290999999) (2009) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

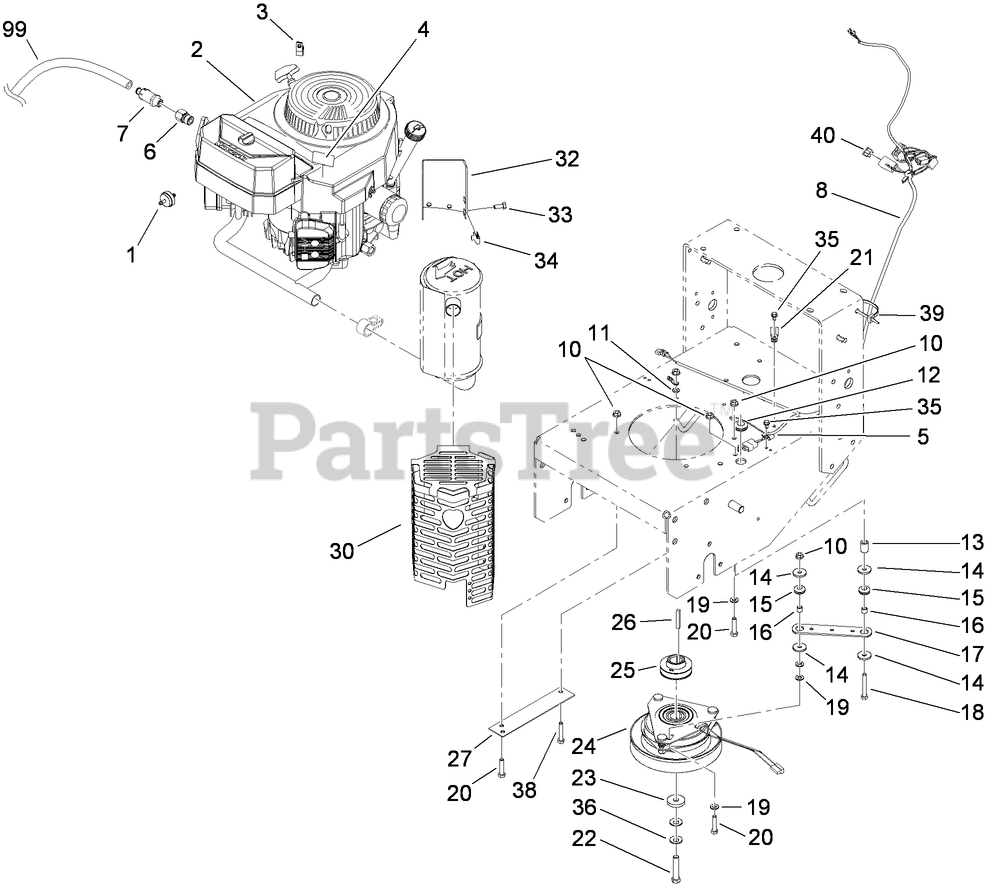

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

2

ENGINE-KAWASAKI, FH541V-GS30

Note: Not serviced separately

$

$

Not available

3

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

4

Toro 106-0699

DECAL-WARNING

$55.99

$

Usually ships in 3-6 days

0

5

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

6

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

7

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

8

Toro 104-8137

HARNESS-WIRE
(Superseded to 119-6508)

$270.99

$

Usually ships in 3-6 days

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

12

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

13

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

14

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

15

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

16

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

17

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

18

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

22

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

23

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 5

0

24

Toro 105-2635

CLUTCH / BRAKE ASM

$576.99

$

In Stock, only 1 left!

0

25

Toro 107-4112

PULLEY-DRIVE

$137.99

$

Usually ships in 3-6 days

0

26

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

27

Toro 94-5847-01

COVER-PULLEY

$

$

Not available

30

Toro 115-4150-03

MUFFLER SHIELD ASM

$175.99

$

Usually ships in 3-6 days

0

32

Toro 115-4154-03

BRACKET-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

33

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

34

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

35

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

36

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

38

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

39

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

40

Toro 114241

FUSE-BLADE, 7.5 AMP

$11.99

$

Usually ships in 3-6 days

0

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 1 left!

0
