30098 - Toro 48" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 290001001 - 290999999) (2009) CONTROL PANEL ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

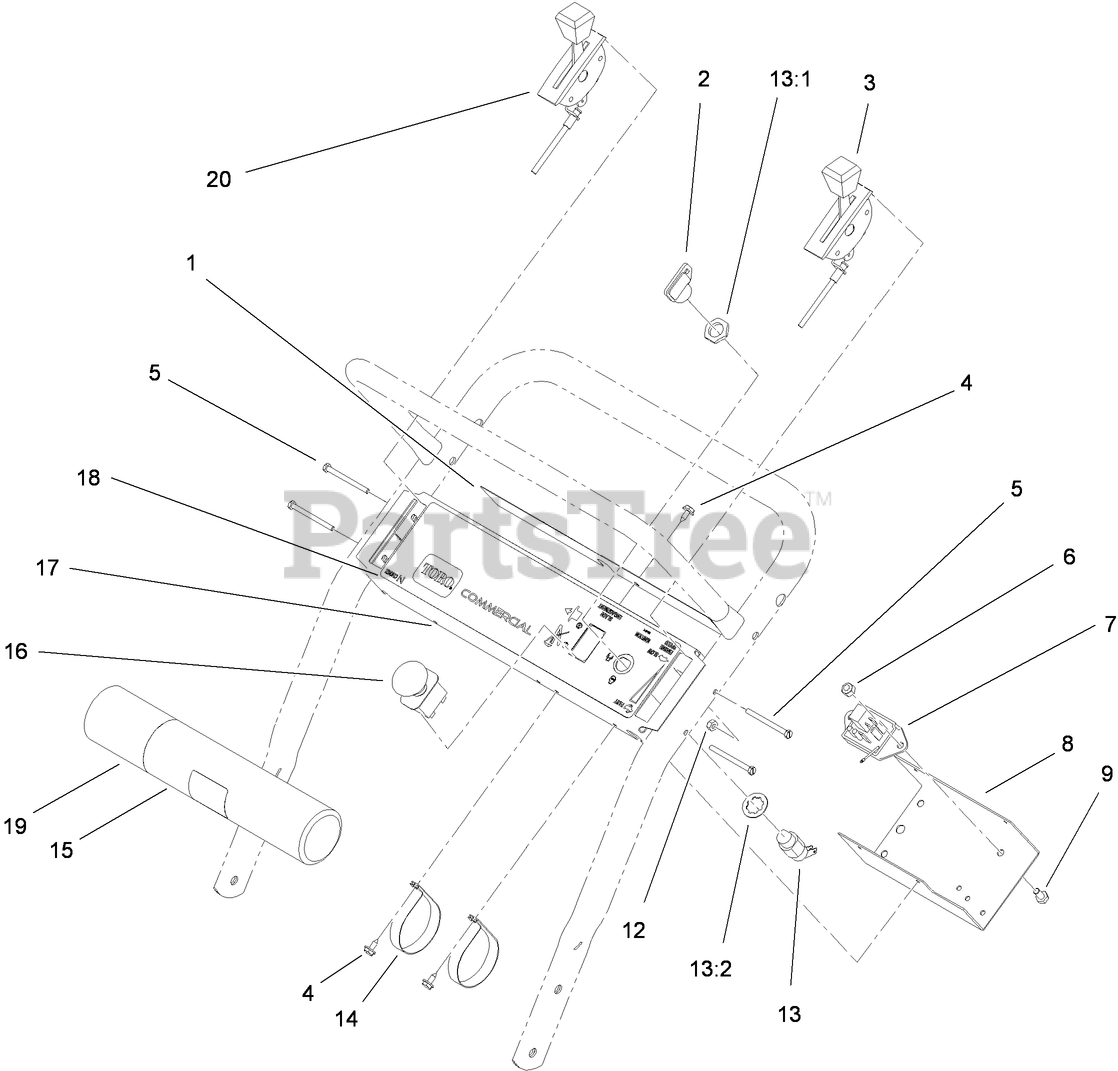

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 105-0884

DECAL-DANGER

$17.99

$

Usually ships in 3-6 days

0

2

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

3

Toro 110-4994

CABLE-THROTTLE

$106.99

$

Usually ships in 3-6 days

0

4

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 104-8141

MODULE-DELAY

$68.99

$

In Stock, Qty 8

0

8

Toro 93-1187-03

PANEL-BOTTOM

$49.99

$

Usually ships in 3-6 days

0

9

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, Qty 11

0

13:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

13:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

14

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

15

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

16

Toro 104-8140

SWITCH-PTO

$79.99

$

In Stock, only 1 left!

0

17

Toro 110-4982-03

PANEL-CONTROL

$123.99

$

Usually ships in 3-6 days

0

18

Toro 110-4971

DECAL-PANEL, CONTROL

$31.99

$

Usually ships in 3-6 days

0

19

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0

20

Toro 110-4995

CABLE-CHOKE

$88.99

$

Usually ships in 3-6 days

0
