30096 - Toro 40" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 290000001 - 290999999) (2009) PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH430V-ES28 Parts Diagram

40" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

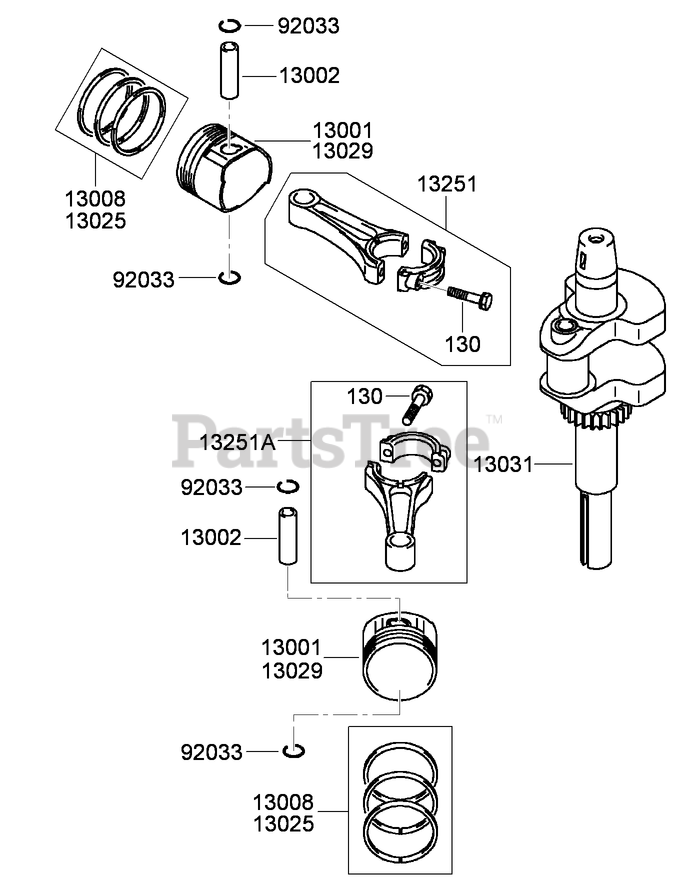

PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH430V-ES28 Parts Diagram

  • Title

130

Kawasaki 130BA0630

BOLT-FLANGED (6X30)
(Superseded to 130B0630)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, only 3 left!

0

13001

Kawasaki 13001-7022

PISTON-ENGINE

Note: Obtain parts from www.kawpowerepc.com

$70.99

$

Usually ships in 2-5 days

0

13002

Kawasaki 13002-7001

Pin-Piston

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 12

0

13008

Kawasaki 13008-7001

PISTON RING SET
(Superseded to 13008-6030)

Note: Obtain parts from www.kawpowerepc.com

$43.99

$

In Stock, Qty 12

0

13025

Kawasaki 13025-7003

PISTON RING SET (L 0.50)

Note: Obtain parts from www.kawpowerepc.com

$54.99

$

In Stock, only 2 left!

0

13029

Kawasaki 13029-7005

PISTON-ENGINE (L 0.50)

Note: Obtain parts from www.kawpowerepc.com

$86.99

$

In Stock, only 3 left!

0

13031

Kawasaki 13031-7033

CRANKSHAFT

Note: Obtain parts from www.kawpowerepc.com

$283.99

$

Usually ships in 2-5 days

0

13251

Kawasaki 13251-7007

CONNECTING ROD ASM
(Superseded to 13251-7026)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

13251A

Kawasaki 13251-7008

CONNECTING ROD ASM (0.50)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92033

Kawasaki 92033-7002

Ring-Snap
(Superseded to 92033-0725)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 11

0
