30096 - Toro 40" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 290000001 - 290999999) (2009) FUEL TANK AND VALVE ASSEMBLY KAWASAKI FH430V-ES28 Parts Diagram

40" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

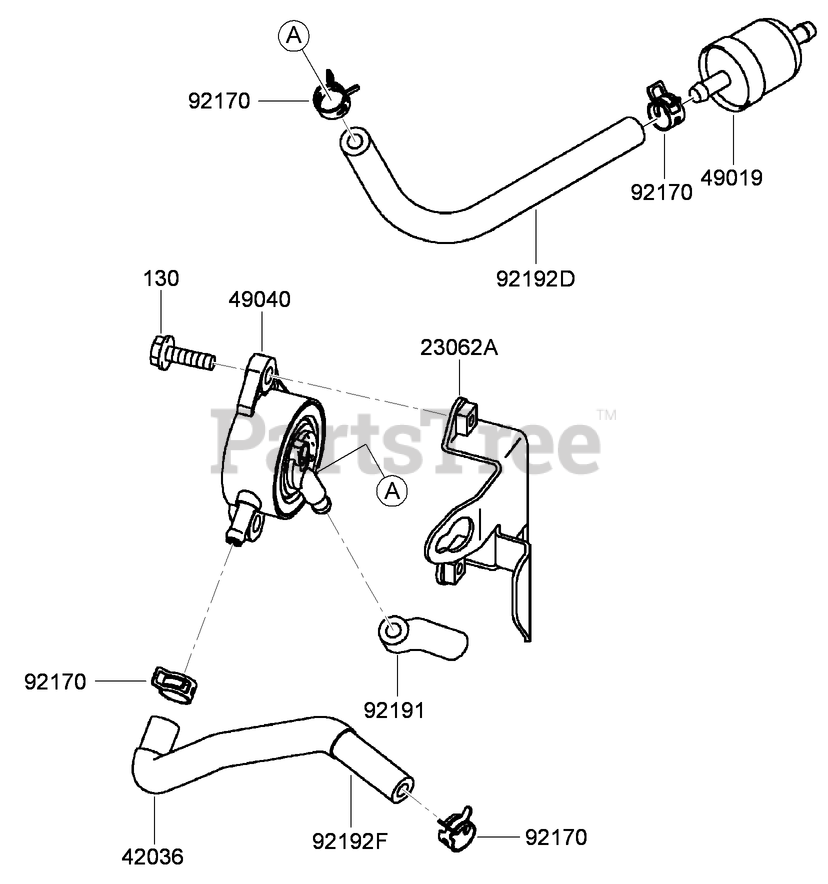

FUEL TANK AND VALVE ASSEMBLY KAWASAKI FH430V-ES28 Parts Diagram

  • Title

130

Kawasaki 130AA0620

BOLT-FLANGED (6X20)
(Superseded to 130B0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

23062A

Kawasaki 23062-7019-9H

BRACKET
(Superseded to 23062-7004-9H)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, only 1 left!

0

42036

Kawasaki 42036-7012

SLEEVE

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-7001

Filter-Fuel
(Superseded to 49019-0027)

Note: Obtain parts from www.kawpowerepc.com

$9.99

$

In Stock, Qty 20+

0

49040

Kawasaki 49040-7001

Pump-Fuel
(Superseded to 49040-2075)

Note: Obtain parts from www.kawpowerepc.com

$37.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2009

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92191

Kawasaki 92191-7002

Tube
(Superseded to 92192-2332)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 14

0

92192D

Kawasaki 92192-7135

TUBE (6.35X12.7X160)
(Superseded to 92192-7170)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92192F

Kawasaki 92192-7136

TUBE (6.35X12.7X180)
(Superseded to 92192-7171)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available
